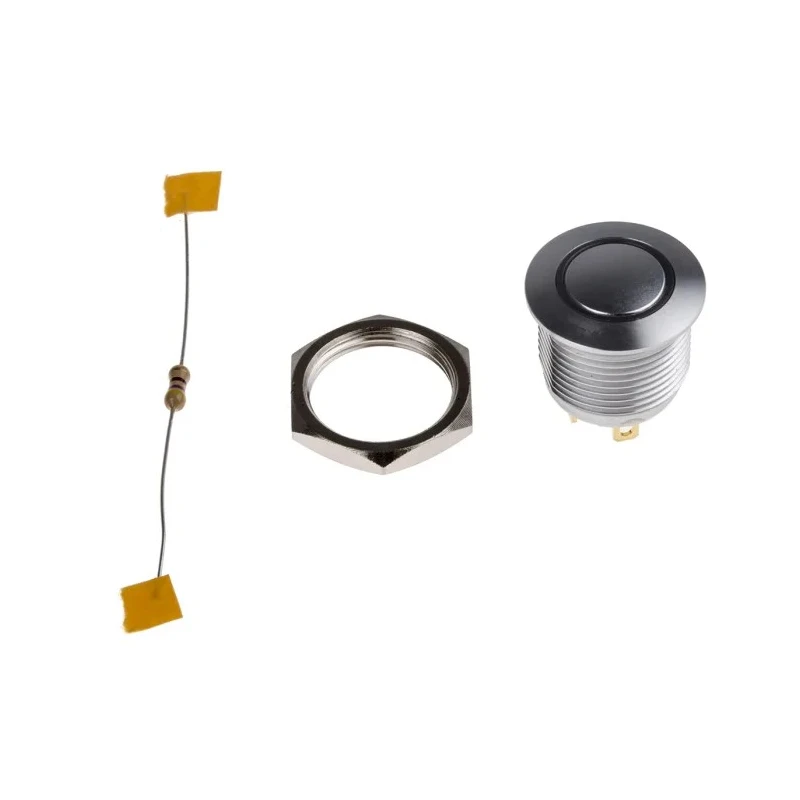

KNITTER-SWITCH Illuminated Vandal Proof Momentary Push Button Switch SPST Blue LED 12V Panel Mount MAV16CARE-7-JR-12V

The KNITTER-SWITCH MAV16CARE-7-JR-12V is a high-quality illuminated vandal proof push button switch designed with a 16 mm panel cutout for secure mounting. It is a momentary type switch with single pole single throw (SPST) contact configuration, featuring a blue LED for clear status indication. The switch is engineered from durable aluminum to withstand physical abuse and harsh industrial conditions, making it ideal for use in electrical control panels, automation systems, manufacturing equipment, and other commercial-industrial applications.

Equipped with an IP67 rating, the switch offers full protection against dust ingress and water immersion, assuring operating stability in demanding environments. It supports a contact voltage of up to 36V DC and 250V AC with a contact current rating of 2A, suitable for a wide range of electrical devices and control circuits. Its solder lug terminal type simplifies installation and connection reliability.

The actuator is round in shape with a ring-shaped lens allowing the blue LED illumination to be highly visible. The integrated 12V DC LED resistor provides easy integration with standard control voltages. This switch complies with UL 94 V-0 and V-2 flame retardant standards, highlighting its safety credentials.

Temperature capabilities range from -20°C up to 120°C, enabling use in environments with varying thermal conditions. Designed and manufactured in China, the MAV16CARE-7-JR-12V provides reliable, vandal-resistant switching ideal for industrial control panels and system interfaces.

Key Features Include:. Momentary SPST switch operation for momentary on-off control. Illuminated with Blue LED powered by 12V DC resistor. 16 mm panel cutout suitable for standardized panel mounting. Aluminum button construction with vandal proof design.

IP67 ingress protection against dust and water. Contact voltage rating 36V DC / 250V AC and current rating 2A. Solder lug terminal type for secure connections. Wide operating temperature range from -20°C to 120°C. UL 94 V-0 and V-2 compliant materials for flame retardancy.

This product is widely used in industrial automation, control panel manufacturing, electrical switchboards, HVAC systems, water treatment plants, and other professional electrical installations requiring durable, reliable illuminated momentary push button switching solutions.
