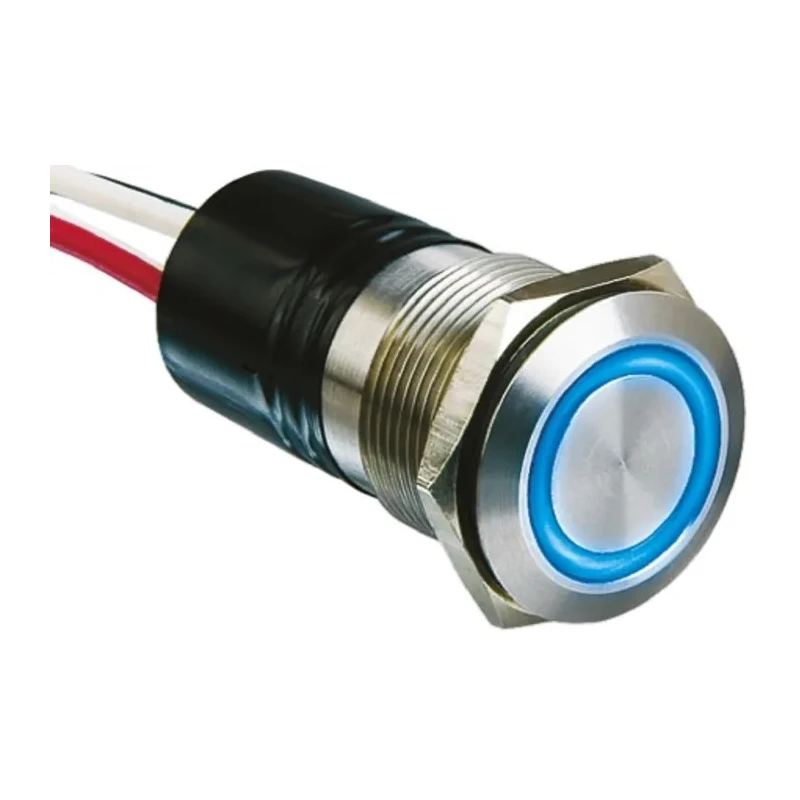

Bulgin Illuminated Push Button Switch Momentary Panel Mount SPST Blue LED IP66 28V DC 250V AC MPI002

Bulgin MPI002 Series Illuminated Push Button Switch is a high-quality momentary SPST switch designed for panel mounting with a 19.2 mm cutout. Featuring a silver button actuator and blue LED illumination, it provides clear visual feedback for industrial control and electrical applications.

Constructed from stainless steel, the switch is vandal resistant and built to withstand tough environments. It has a contact current rating of 50 mA and supports DC voltage up to 28 V and AC voltage up to 250 V AC, making it versatile for control circuits and indicator applications.

With an IP66 rating, the switch is fully sealed against dust and water ingress, ensuring durability and reliable performance in demanding conditions. Operating temperature range from -30°C to 70°C allows use in diverse climatic conditions.

The LED illumination is integrated with an internal supply resistor designed for 6V, 12V, or 24V configurations, simplifying circuit design. Termination options include through-hole terminals or flying leads with a 35 mm overall length plus 300 mm leads, or 32.7 mm length with 2.8 mm solder tag terminals.

Additional features include internal Transient Voltage Suppression (TVS) protection to enhance electrical robustness and vandal resistance suitable for security or industrial control panels.

This push button switch is ideal for applications in industrial automation, control panels, HVAC systems, machinery operation, and other environments where robust, reliable push button actuators with visual indication are required.

The switch features a 19.2 mm panel cutout size for easy mounting. Its actuator is silver in color, styled as a button, providing a responsive user interface. This product is vandal resistant, made from stainless steel, suitable for harsh environments.

It supports a contact current rating of 50 mA and is RoHS compliant. The LED illumination is supplied via an integral resistor for 6V, 12V, or 24V variants, with blue LED color. The switch can operate reliably between temperatures of -30°C to 70°C.

Termination is through-hole or flying leads, with an overall length of 35mm plus 300mm leads or 32.7mm with solder tags. It offers internal TVS protection and full sealing to IP66 for dust and water ingress. Explore more high-quality Push Button Switches and components from Bulgin and other leading brands at EnvMart, your trusted partner for industrial electrical components.
