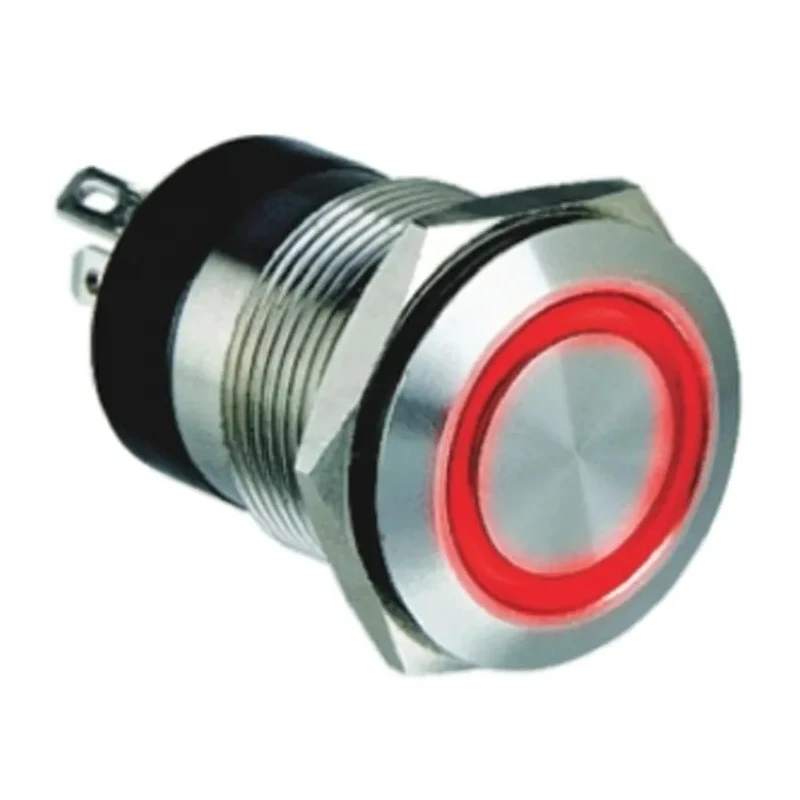

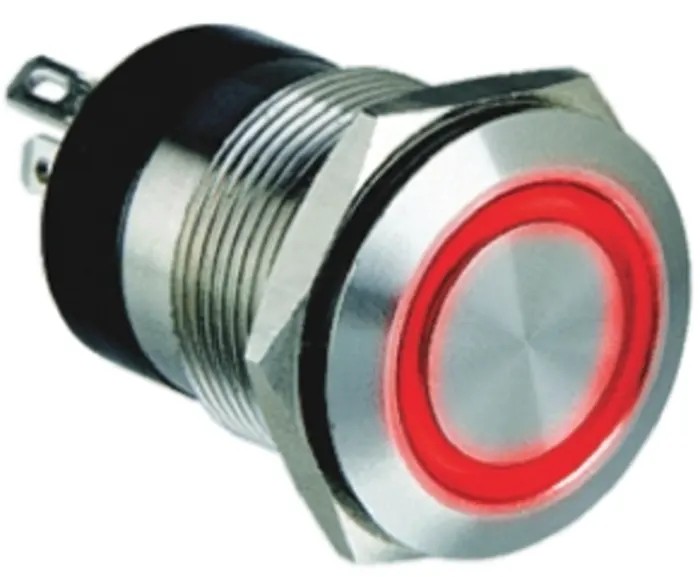

Bulgin Illuminated Push Button Switch Panel Mount Momentary 19.2 mm Cutout SPST Red LED IP66 24 V dc MPI002

Bulgin MPI002 Illuminated Push Button Switch is a high-quality industrial switch designed for reliable momentary operation in various electrical and automation applications. Featuring a sturdy stainless steel construction, it offers excellent vandal resistance and long-term durability suitable for demanding environments.

This panel-mounted switch requires a 19.2 mm cutout and comes illuminated with a red LED, powered by an integral supply resistor optimized for 24 V dc operation. The switch employs a single pole single throw (SPST) contact configuration with a contact current rating of 50 mA, activated by a push button actuator style.

Fully sealed to IP66, this switch is protected against dust ingress and water jets, making it ideal for harsh conditions encountered in industrial, manufacturing, laboratory, and commercial environments. It operates reliably from a minimum temperature of -30°C up to a maximum of 70°C. The switch also features internal transient voltage suppression (TVS) protection to enhance durability against voltage spikes.

Termination options include flying leads measuring 300 mm plus 35 mm overall length or 2.8 mm solder tags with a length of 32.7 mm for versatile installation preferences. The illuminated feature includes LED supply resistors compatible with 6 V, 12 V, and 24 V variants; this specific model includes the resistor for 24 V dc. Users planning to operate at different voltages must add an appropriate resistor externally as per datasheet guidance.

This RoHS-compliant push button switch complies with relevant safety and environmental standards and is manufactured in Tunisia. It is an excellent choice for integrating into control panels, electrical switchgear, and automated machinery requiring reliable human-machine interface components.

Whether upgrading existing installations or building new control systems, the Bulgin MPI002 series offers a robust, visually clear, and easy-to-install solution with high ingress protection and excellent push-button tactile feel.

Explore the full range of Bulgin Push Button Switches and related components at EnvMart for trusted sourcing of industrial electrical switchgear solutions. Constructed from stainless steel providing vandal resistance and durability.

Illuminated with a red LED and integral supply resistor for 24 V dc operation. Panel mount design with 19.2 mm cutout size for easy installation. Fully sealed to IP66 rating protecting against dust and water ingress. Suitable for industrial, automation, and electrical switch applications.

Operating temperature range from -30°C to 70°C supports harsh environments. Switch contact current rated at 50 mA with momentary (push to make) action. Available with flying lead or 2.8 mm solder tag termination options.

Compliant with RoHS standards ensuring safety and environmental compliance.
