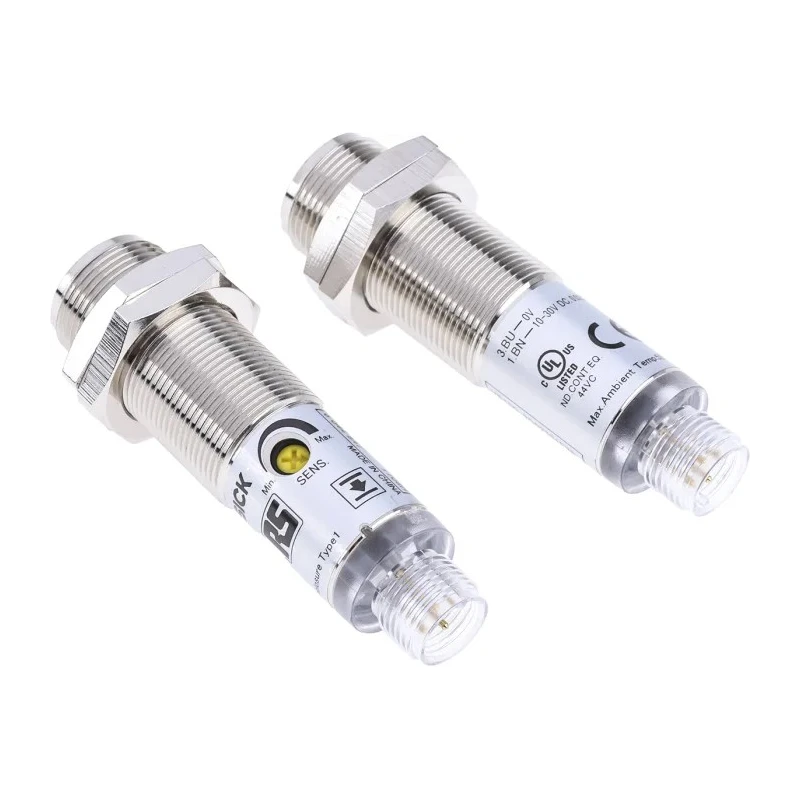

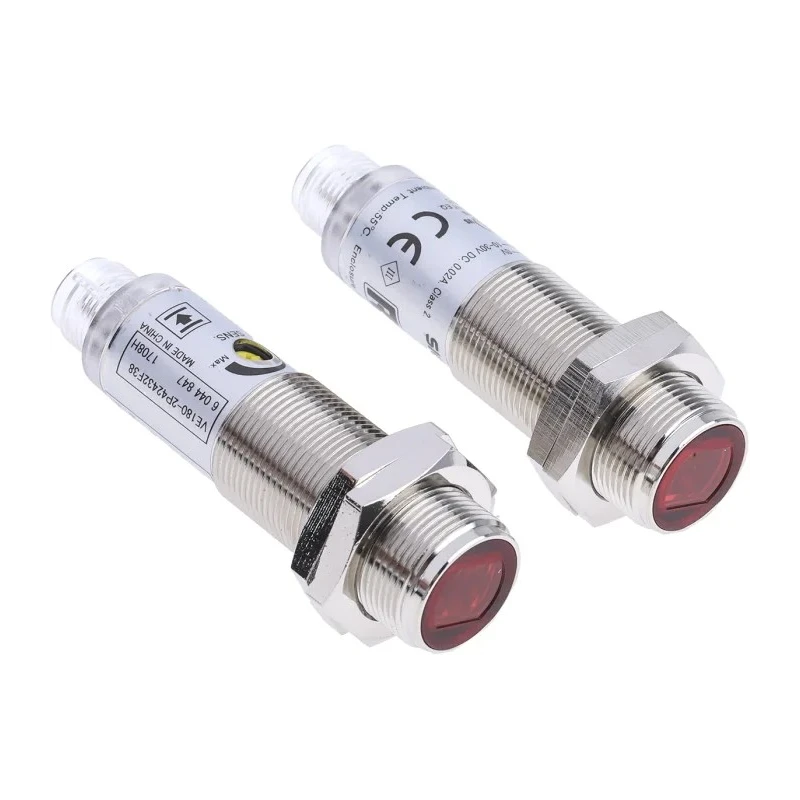

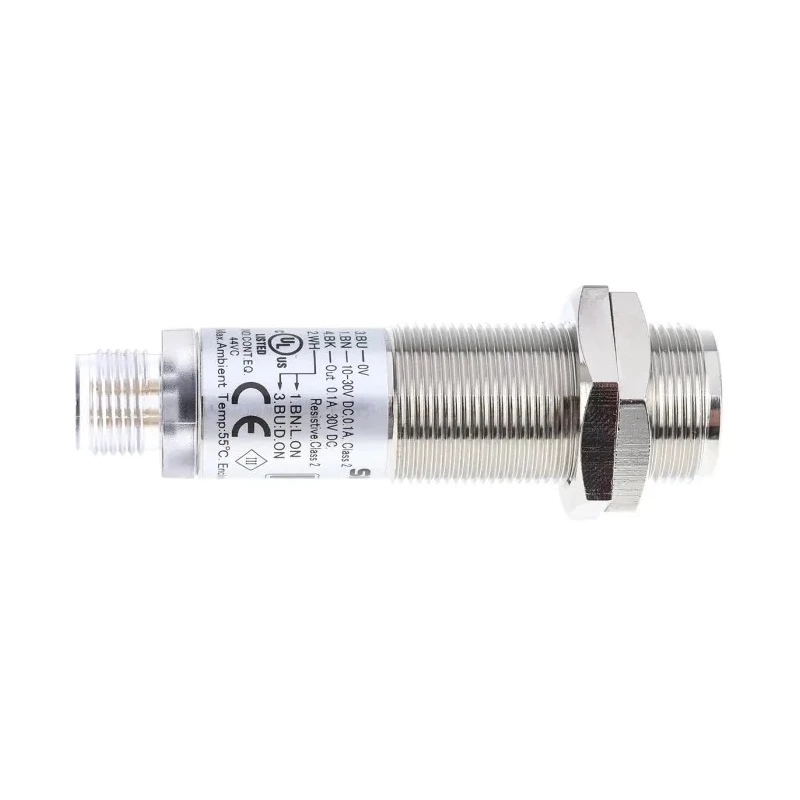

RS PRO Through Beam Receiver Photoelectric Sensor Barrel Style 28 m Detection Range PNP Output IP67 729-5123
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 28 m |
| Model | 729-5123 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Nickel Plated Brass, Polycarbonate |
| Output type | PNP |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam Receiver |
| Terminal type | Screw |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | ACMA, cURus, EU, RoHS, UK |
| Materials Detected | Polymethyl Methacrylate |
| Sensor Style | Barrel |
Key Features
- The sensor features a robust nickel-plated brass and polycarbonate housing for durability and corrosion resistance.
- It provides reliable detection using an LED light source for polymethyl methacrylate and similar materials.
- PNP output simplifies integration into positive switching industrial control systems.
- IP67 rating ensures operation in harsh environments including wet and dusty conditions.
- Operating temperature ranges from -25°C to 55°C, supporting varied factory ambient conditions.
- Flange mount design allows secure and repeatable installation.
- Maximum voltage rating is 30 V DC with a maximum current of 100 mA suitable for standard low-voltage industrial circuits.
- The sensor offers a fast 500 microseconds response time for high-speed detection tasks.
Product Description
RS PRO 729-5123 Through Beam Receiver Photoelectric Sensor is a high-performance barrel-style sensor engineered for reliable detection applications within industrial automation and control systems. Equipped with a bright LED light source, it detects polymethyl methacrylate materials and other solids across an extended beam path up to 28 meters.
The sensor housing is constructed from nickel-plated brass and polycarbonate, providing a balanced combination of mechanical strength, impact resistance, and corrosion protection. This ensures dependable operation in tough industrial environments. Its IP67 ingress protection rating guarantees resistance to dust and immersion in water, making it suitable for wet and dusty production settings.
Designed with a PNP output type and screw terminal connections, RS PRO 729-5123 enables straightforward integration with positive-switching control circuits and secure wiring installations. It supports a maximum operating voltage of 30 V DC and a current rating up to 100 mA, making it compatible with standard low-voltage industrial control systems.
The sensor maintains reliable operation across a broad temperature range of -25°C to 55°C, accommodating typical factory ambient conditions. Additionally, its fast 500 microseconds response time supports high-speed detection requirements for automated process control, conveyor monitoring, and material handling feedback.
The nickel-plated brass and polycarbonate housing ensures durability and corrosion resistance. LED light source provides consistent detection performance for polymethyl methacrylate. PNP output simplifies connection to positive switching industrial controls.
Screw terminal wiring allows secure and easy electrical installation. IP67 rating protects from dust and water ingress for harsh environments. Flange mount design supports stable and repeatable sensor placement. Maximum 30 V DC voltage and 100 mA current ratings suit common industrial circuits.
Operating temperature from -25°C to 55°C supports diverse factory conditions. Fast 500 μs response time enables reliable high-speed object detection. Approvals include ACMA, cURus, EU, RoHS, and UK for global compliance.
Applications for the RS PRO 729-5123 sensor include conveyor object detection in packaging lines, presence detection in assembly equipment, machine guard beam-break safety systems, and inspection of polymethyl methacrylate components. Its flange mount and sealed housing make it ideal for demanding industrial automation, manufacturing, and material handling environments.
Explore the range of RS PRO sensors and automation components on EnvMart for reliable industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of the RS PRO Through Beam Receiver Photoelectric Sensor is 28 meters.
This model features a PNP output type, which simplifies integration into positive-switching industrial control systems.
The sensor has a fast response time of 500 microseconds, making it suitable for high-speed detection tasks.
It operates within a temperature range of -25°C to 55°C, accommodating various factory ambient conditions.
This sensor is designed to detect polymethyl methacrylate and similar materials.
The sensor has an IP67 rating, ensuring protection against dust and immersion in water, suitable for harsh environments.
The housing is made from nickel-plated brass and polycarbonate, providing a robust construction for durability and corrosion resistance.
This model features a flange mount design, allowing for secure and repeatable installation.
The maximum operating voltage is 30 V DC, with a maximum current rating of 100 mA, suitable for standard low-voltage industrial circuits.
It complies with several standards including ACMA, cURus, EU, RoHS, and UK, ensuring global compliance.
This sensor utilizes screw terminal connections for secure and easy electrical installation.
It is suitable for applications such as conveyor object detection, presence detection in assembly equipment, and machine guard beam-break safety systems.
