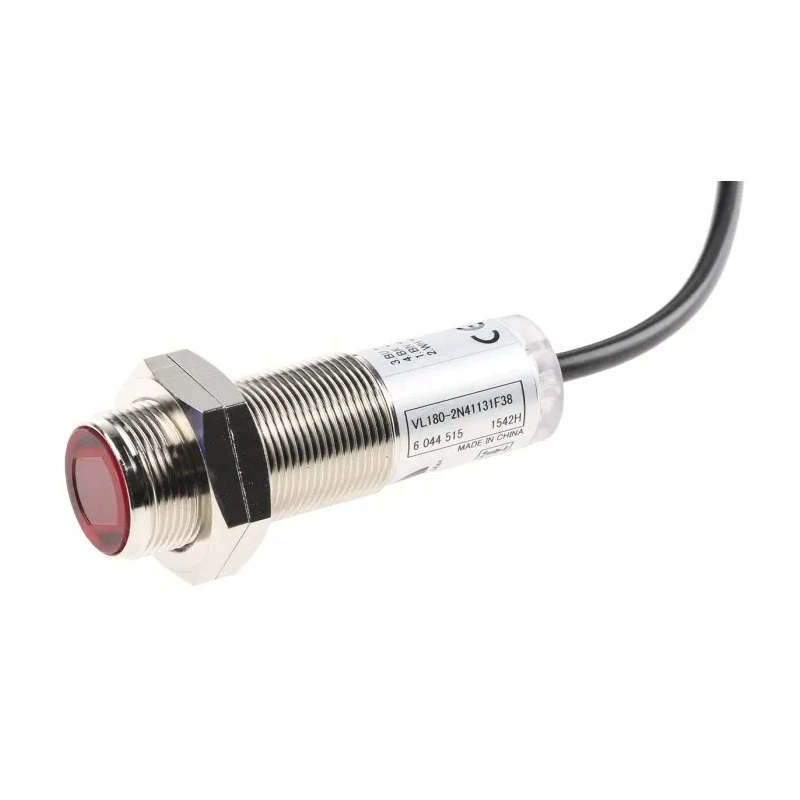

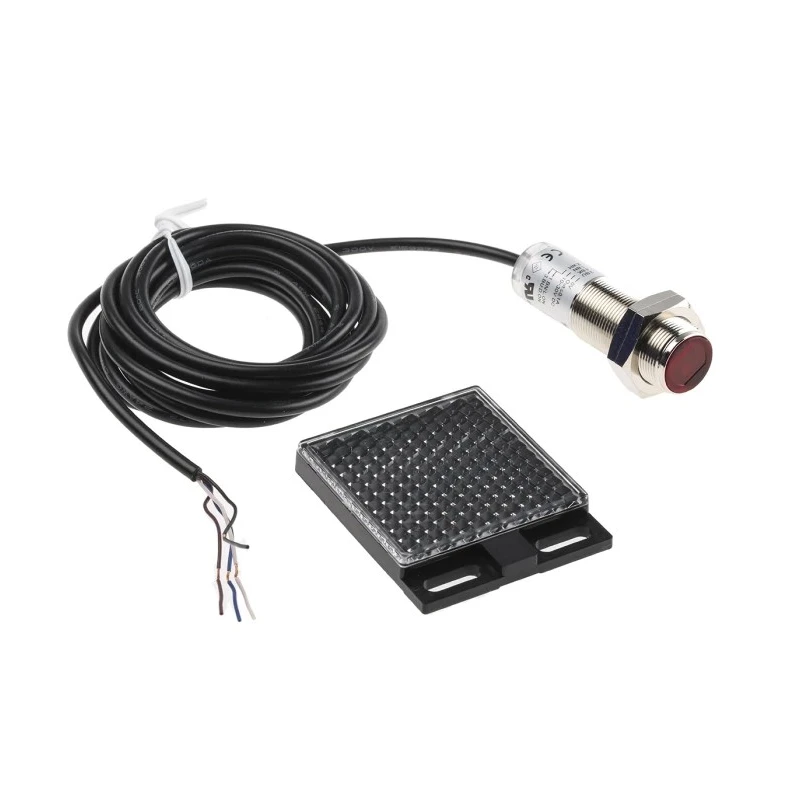

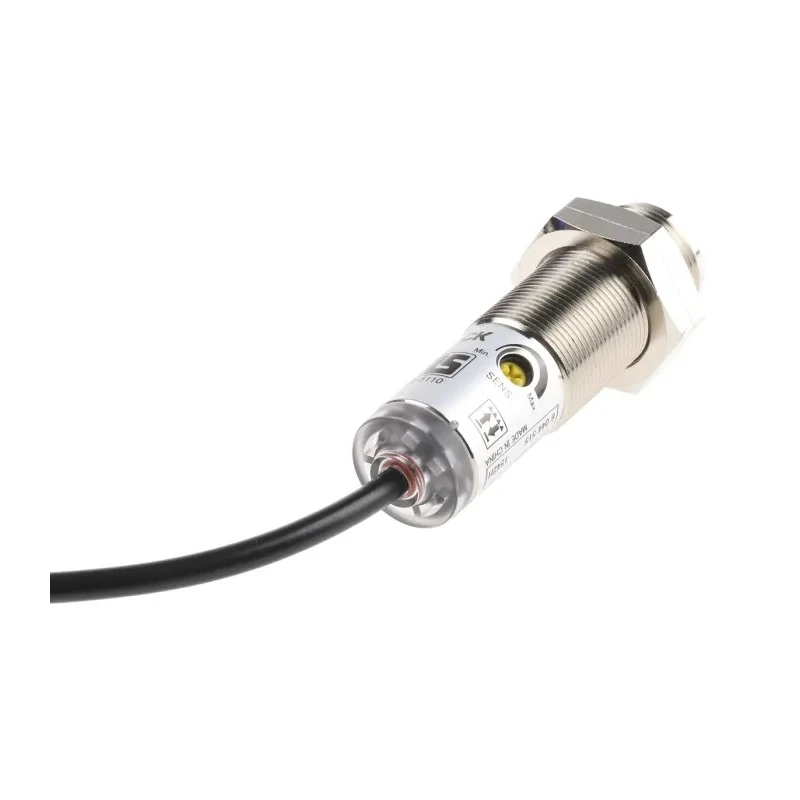

RS PRO Retroreflective Photoelectric Sensor Barrel Style 50 mm to 7 m Detection Range NPN Output IP67 729-5110
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 50 mm → 7 m |
| Model | 729-5110 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Nickel Plated Brass, Polycarbonate |
| Output type | NPN |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE, E348498, NRKH7, RoHS Compliant, UL Listed (NRKH |
| Materials Detected | Polymethyl Methacrylate |
| Sensor Style | Barrel |
Key Features
- The sensor uses a retroreflective detection type suitable for versatile object sensing.
- It features a barrel-style flange mount with nickel plated brass and polycarbonate housing for durability.
- Operates with 4-pin electrical connections and LED light source for status indication.
- Designed to function reliably within temperature ranges from -25°C to +55°C.
- Meets CE, RoHS, and UL standards ensuring quality and safety compliance.
- The NPN output supports a maximum current of 100 mA and voltage up to 30 V dc.
- The device provides a fast response time of 500 microseconds, supporting industrial automation needs.
- The IP67 rating guarantees resistance to dust and temporary water immersion.
Product Description
RS PRO 729-5110 is a retroreflective Photoelectric Sensor designed in a barrel style for precise object detection with a range between 50 mm and 7 m. It operates using a rugged nickel plated brass and polycarbonate housing that ensures long-lasting resistance to wear and corrosion, making it suitable for harsh industrial environments.
Equipped with an LED light source, the sensor provides easy visual alignment thanks to its visible red light, and the dual-color LED indicates the sensor’s operational status effectively.
The sensor's flange mount type and compact barrel design allow convenient installation in varied industrial setups, including automation processes, material handling, and safety systems.
Designed for durability and operational efficiency, it supports industrial temperature ranges from -25°C to +55°C and features an ingress protection rating of IP67, ensuring dust-tight performance and resistance to temporary water submersion.
Featuring an NPN output, the sensor supports electrical connections through a 4-pin terminal, allowing a maximum voltage of 30 V dc and a maximum current of 100 mA, suitable for typical control systems.
The rapid response time of 500 μs enables fast detection necessary for high-speed automation tasks. The photo-transistor optical technology and retroreflective detection provide reliable object sensing for materials such as polymethyl methacrylate.
This product complies with CE, RoHS, and UL (E348498, NRKH7) approvals, confirming adherence to international quality and safety standards. The sensor uses a retroreflective detection type suitable for versatile object sensing.
It features a barrel-style flange mount with nickel plated brass and polycarbonate housing for durability. Operates with 4-pin electrical connections and LED light source for status indication. Designed to function reliably within temperature ranges from -25°C to +55°C.
Meets CE, RoHS, and UL standards ensuring quality and safety compliance. The NPN output supports a maximum current of 100 mA and voltage up to 30 V dc. The device provides a fast response time of 500 microseconds, supporting industrial automation needs.
The IP67 rating guarantees resistance to dust and temporary water immersion.
This RS PRO photoelectric retroreflective sensor is applicable in a wide spectrum of industrial and commercial automation systems, including manufacturing process control, packaging, material detection, and robotics. Its robust build, electrical compatibility, and protection rating make it reliable for outdoor and indoor use in demanding environments.
Explore the full range of RS PRO sensors on EnvMart to find complementary automation components for your industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is from 50 mm to 7 m.
It features an NPN output type.
The sensor supports a maximum current of 100 mA and a maximum voltage of 30 V dc.
The response time of this model is 500 microseconds.
It is designed to detect materials such as polymethyl methacrylate.
This sensor has an IP67 rating, ensuring it is dust-tight and resistant to temporary water immersion.
It operates reliably within a temperature range of -25°C to +55°C.
It features a flange mount type for convenient installation.
The sensor uses an LED light source for detection and status indication.
It meets CE, RoHS, and UL standards, ensuring compliance with quality and safety regulations.
The housing is made of nickel plated brass and polycarbonate, providing durability.
It operates with 4-pin electrical connections for easy integration into control systems.
