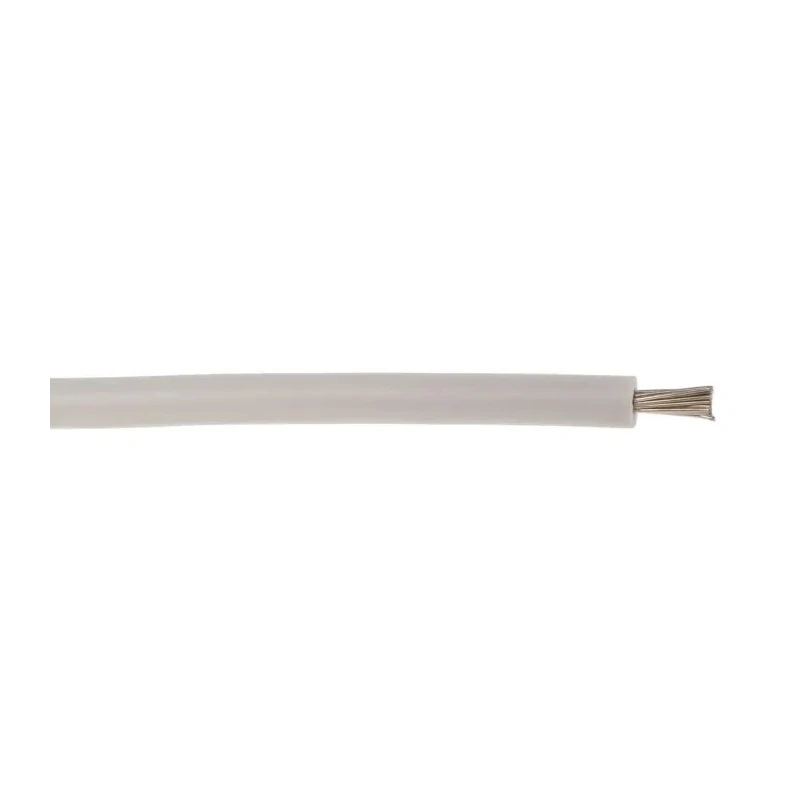

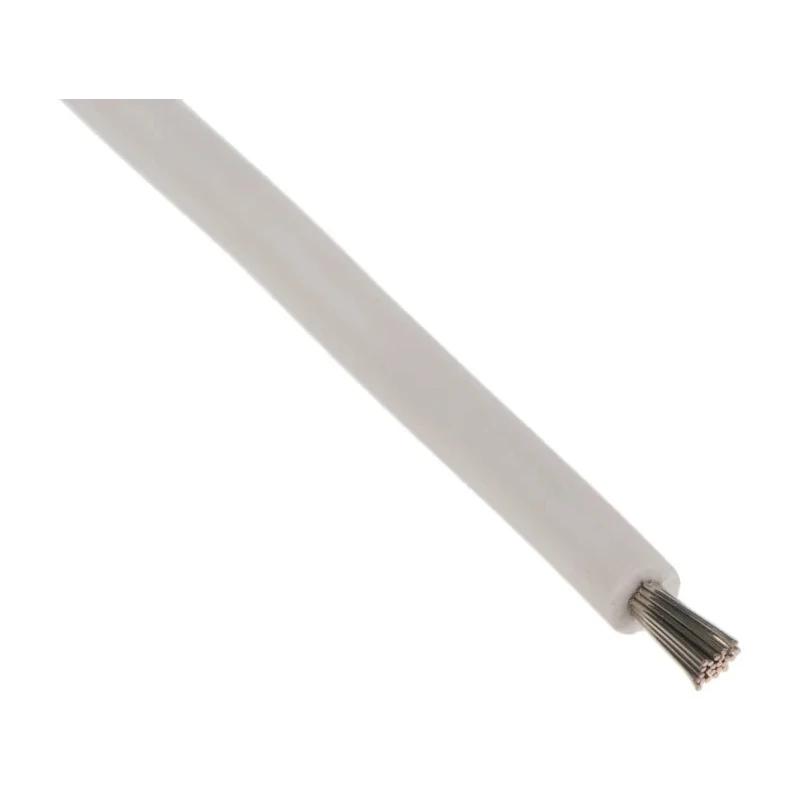

Lapp OLFLEX HEAT 180 SiF Series White 0.75 mm² Hook Up Wire, 19 x 0.25 mm Strands, 100 m, Silicone Rubber Insulation 49105
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.75mm² |
| Model | 49105 |
| Cable Length | 100m |
| Series | OLFLEX HEAT 180 SiF |
| Outside diameter | 2.4mm |
| Maximum Operating Temperature | 180°C |
| Conductor Material | Tin Copper Wire |
| Sub Type | Silicone Wire |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Silicone Rubber |
| Jacket Colour | White |
| Number of Strands | 19 |
| Core Strands | 19 x 0.25mm |
| Size of Strands | 0.25mm |
Key Features
- The wire features 19 strands of 0.25 mm diameter tin copper conductor for excellent flexibility.
- It operates safely at voltages of 300 and 500 V and withstands temperatures from -50 °C up to a maximum of 180 °C.
- The jacket is made of white silicone rubber, which is halogen-free and flame retardant according to IEC standards.
- The cable is resistant to oils, fats, and various chemical substances.
- It has a small outer diameter of 2.4 mm and a recommended minimum bending radius of six times the cable diameter.
- Compliant with IEC 60754-1/-2 for halogen-free and corrosivity of combustion gases and IEC 60332-1-2 flame retardancy.
Product Description
Lapp 49105 OLFLEX HEAT 180 SiF Series Single Core Hook Up Wire is engineered for demanding industrial and electrical applications requiring high temperature resistance and flexibility. It features a silicone rubber insulation jacket in white color and a tin copper conductor composed of 19 strands each 0.25 mm in diameter, providing reliable conductivity and durability.
Rated for usage at voltages up to 500 V, this silicone wire withstands continuous operation temperatures from -50 °C to +180 °C, making it ideal for HVAC systems, thermal heating elements, furnace construction, generator and transformer manufacturing, and lighting technology.
The cable design incorporates halogen-free materials certified by IEC 60754-1 and corrosion reduction of gases per IEC 60754-2. Additionally, it meets flame retardant standards IEC 60332-1-2 for enhanced safety in hazardous electrical environments.
The flexible fine-wire conductor ensures ease of installation with a minimum bending radius of 6 times the cable diameter for fixed applications. Its resistance to oils, fats, and chemicals expands its usability in industrial and manufacturing environments.
Temperature resistance from -50 °C to +180 °C for harsh environments. Halogen-free and flame retardant properties for improved safety. Flexible stranded conductor for superior installation convenience. White silicone rubber jacket ensuring chemical and oil resistance.
Meets multiple IEC standards for electrical safety and material performance.

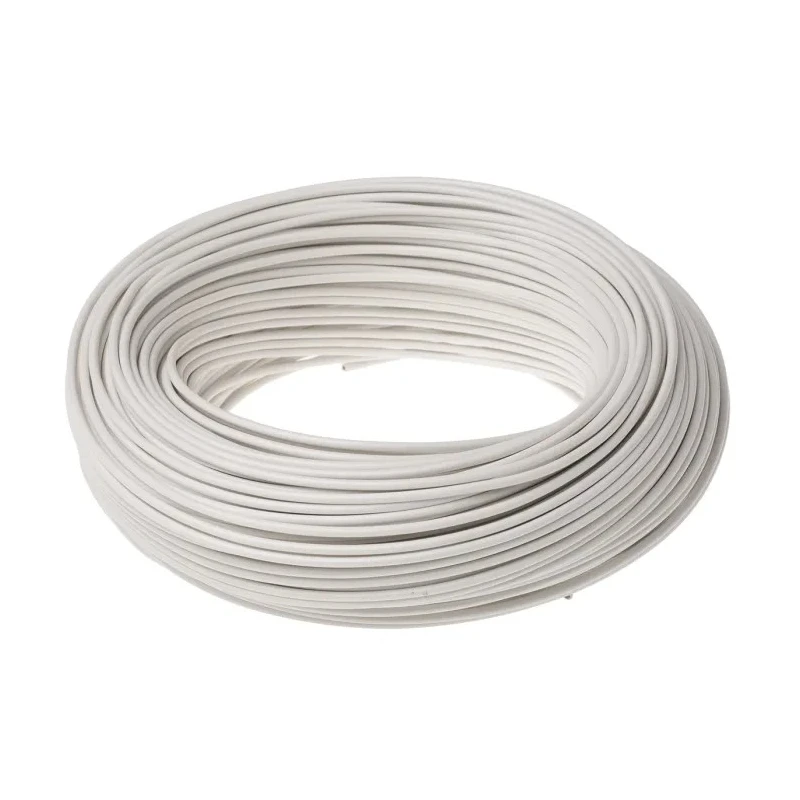

This product is supplied coiled and shrink wrapped in a 100 m length, not on a reel. It originates from Germany, ensuring high manufacturing quality. Explore the Lapp range at EnvMart for reliable industrial cables and wires.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 180 °C.
It is rated for usage at voltages of 300 V and 500 V.
The conductor is made of tin copper wire, and the jacket is made of white silicone rubber.
The minimum operating temperature is -50 °C.
This model is supplied in a length of 100 meters.
The outside diameter of the wire is 2.4 mm.
The conductor consists of 19 strands, each with a diameter of 0.25 mm.
It is resistant to oils, fats, and various chemical substances, enhancing its usability in industrial environments.
The recommended minimum bending radius is six times the cable diameter.
Yes, it is halogen-free and complies with IEC 60754-1/-2 for halogen-free materials and corrosivity of combustion gases, as well as IEC 60332-1-2 for flame retardancy.
This model is suitable for demanding industrial and electrical applications, including HVAC systems, thermal heating elements, and generator manufacturing.
The wire originates from Germany, ensuring high manufacturing quality.
