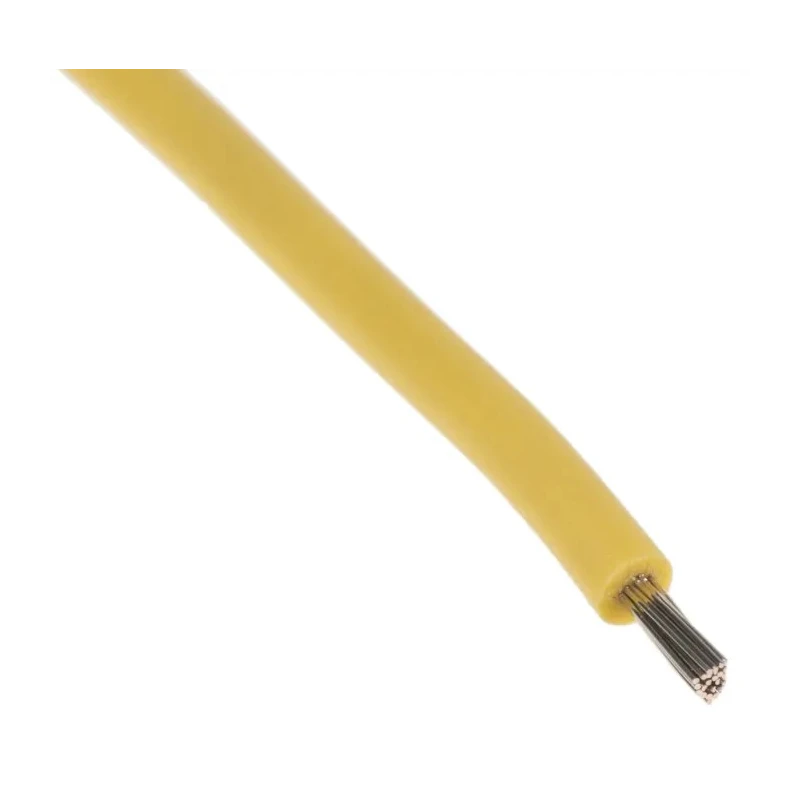

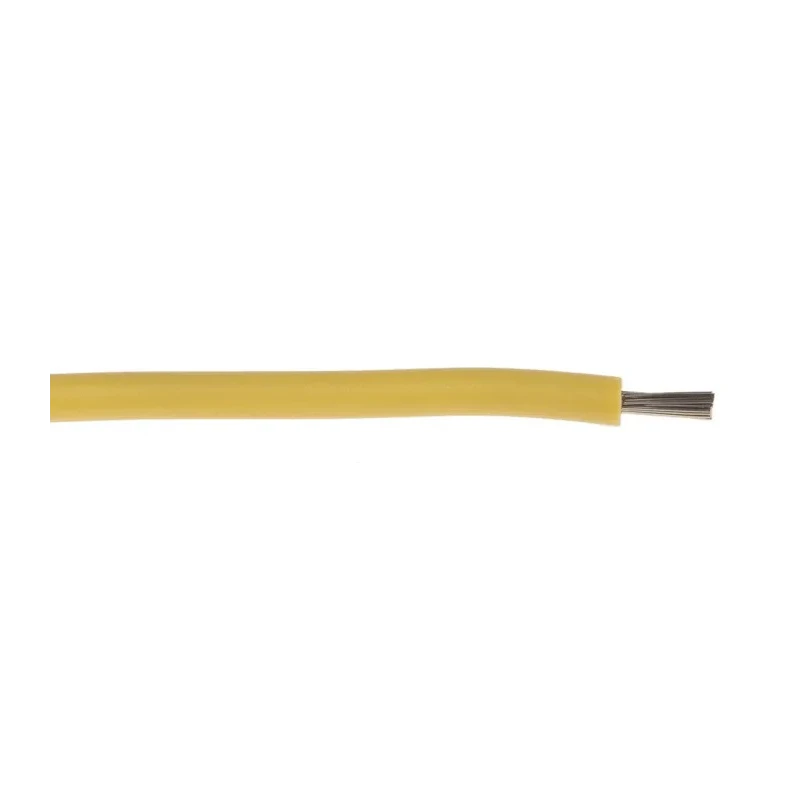

Lapp OLFLEX HEAT 180 SiF Series Yellow 0.75 mm² Hook Up Wire, 19 x 0.25 mm, 100 m, Silicone Rubber 49005

Lapp 49005 Hook Up Wire 0.75 mm² from the OLFLEX HEAT 180 SiF series is engineered for demanding industrial applications requiring high temperature resistance and durability. Featuring a yellow silicone rubber jacket and flexible fine-wire conductor consisting of 19 strands of 0.25 mm tin copper wire, this wire maintains performance in environments ranging from -50 °C up to a maximum operating temperature of 180 °C. The halogen-free construction according to IEC 60754-1 and corrosivity compliance IEC 60754-2 provides safer operation with reduced toxic and corrosive gas emissions in case of fire, complemented by flame retardant characteristics meeting IEC 60332-1-2 standards.

This hook-up wire is rated for use at voltages of 300 V and 500 V, with an outside diameter of 2.4 mm. Its silicone insulation ensures resistance against oils, fats, and various chemical substances, extending its applicability across thermal and heating elements, furnace construction, HVAC systems, generator and transformer manufacturing, and lighting technology sectors. The wire’s stranded conductor design guarantees enhanced flexibility compared to solid cores, making installation easier and more reliable in dynamic or tight wiring installations.

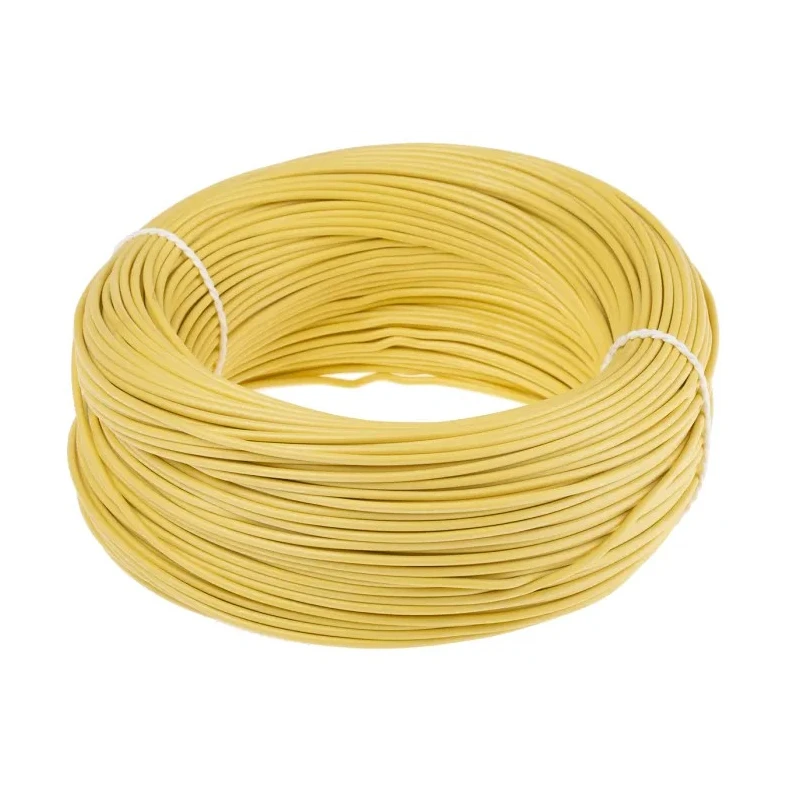

The product is supplied as 100 meters of coiled wire shrink wrapped for protection; it is not provided on a reel. Flexible conductor with 19 strands of 0.25 mm tin copper wire enhances bending resistance. Silicone rubber jacket enables high temperature and chemical resistance.

Halogen-free and flame retardant for enhanced safety compliance in industrial environments. Operating temperature range from -50 °C up to 180 °C suits harsh conditions. Rated for voltages of 300 V and 500 V. Suited for HVAC, furnace, generator, transformer, and lighting technology applications.

Coiled 100-meter length for convenient handling and installation.

These qualities make the Lapp OLFLEX HEAT 180 SiF 0.75 mm² hook-up wire a reliable choice for industrial, commercial, and laboratory environments where durability and safety under high temperature are critical.
