Lapp OLFLEX HEAT 180 SiF Series Yellow Green 1 mm² Hook Up Wire 300, 500V 180°C 100 m 50000 Silicone Rubber 50000

Free Delivery in India | Lowest Global Shipping Charges

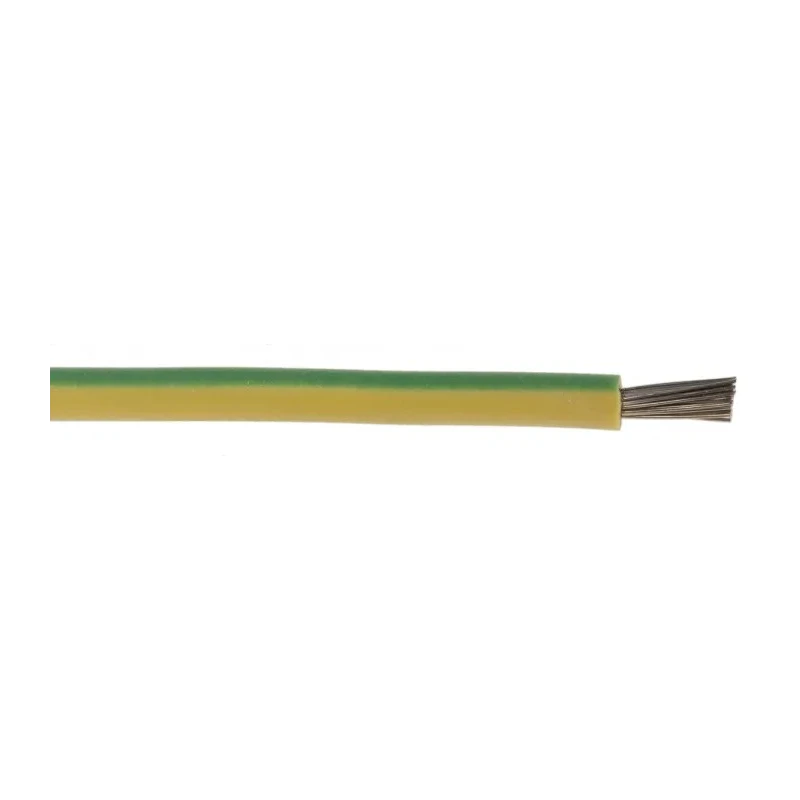

Lapp OLFLEX HEAT 180 SiF Series Yellow Green 1 mm² Hook Up Wire 300, 500V 180°C 100 m 50000 Silicone Rubber 50000

Name: Lapp OLFLEX HEAT 180 SiF Series Yellow Green 1 mm² Hook Up Wire 300, 500V 180°C 100 m 50000 Silicone Rubber 50000
Brand: Lapp
SKU: 221618
Price: 102.25 USD
Availability: InStock



Category Hook Up Wire Brand Lapp Condition New

Specifications

Country of Origin	India
Voltage	300, 500V
Brand	Lapp
CROSS SECTIONAL AREA	1mm²
Model	50000
Cable Length	100m
Series	OLFLEX HEAT 180 SiF
Outside diameter	2.5mm
Maximum Operating Temperature	180°C
Conductor Material	Tin Copper Wire
Sub Type	Silicone Wire
Minimum Operating Temperature	-50°C
Jacket Material	Silicone Rubber
Jacket Colour	Yellow, Green
Number of Strands	32
Core Strands	32 x 0.2mm
Size of Strands	0.2mm

Key Features

Yellow and green silicone rubber jacket for easy identification and durability.

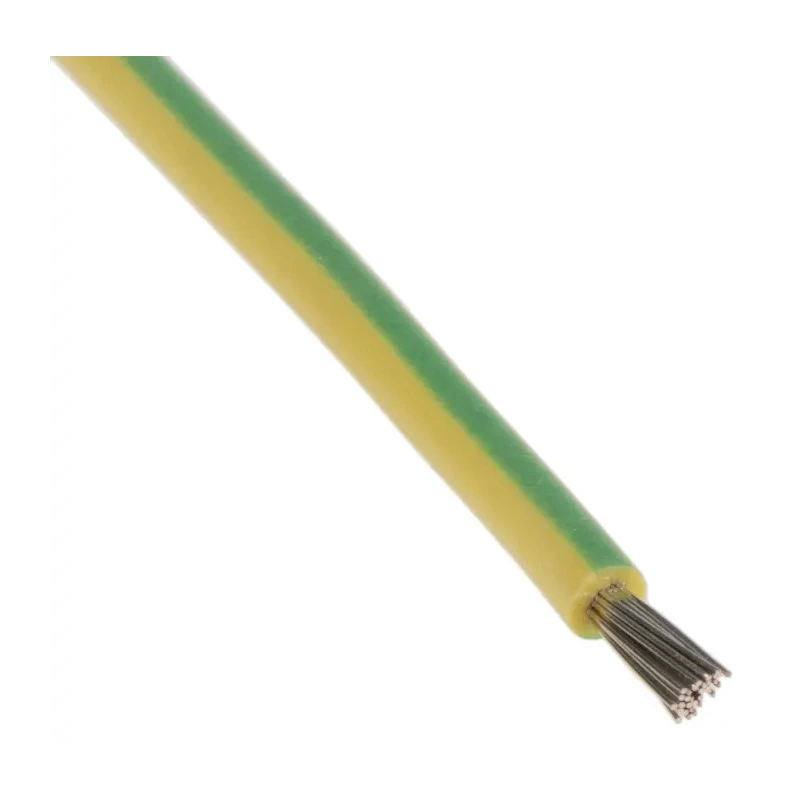

1 mm² cross-sectional area with 32 strands of 0.2 mm tin copper wire for flexibility and conductivity.
Continuous operating voltage rating of 300 to 500 volts.
Maximum operating temperature of 180°C and minimum of -50°C to withstand harsh environments.
Flame retardant and halogen-free insulation enhancing safety in electrical installations.

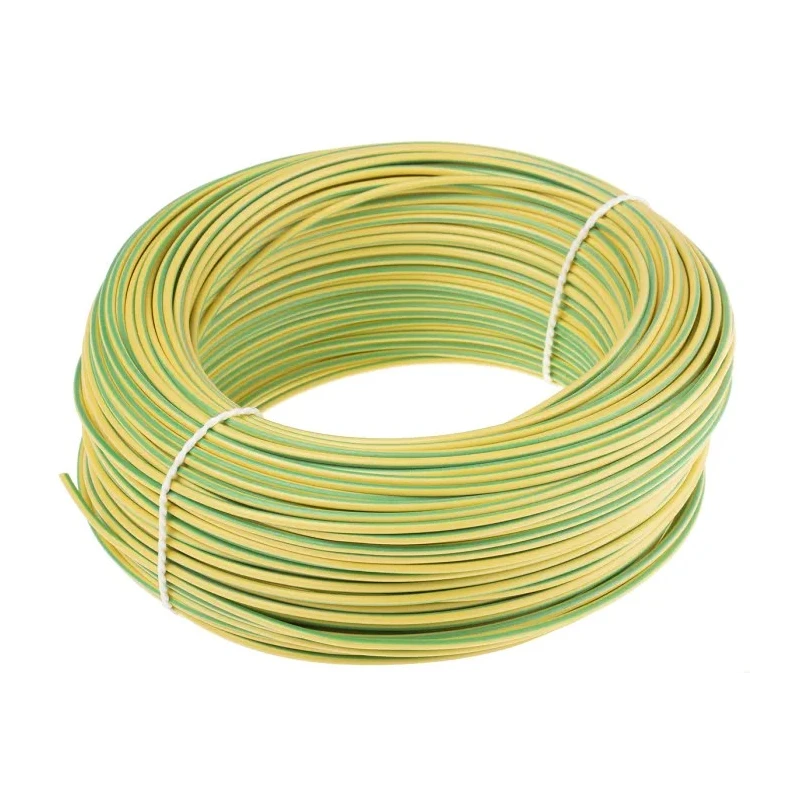

100 meters length supplied coiled and shrink wrapped for convenience in use.
Compliant with IEC 60754-1, IEC 60754-2, and IEC 60332-1-2 standards ensuring quality and safety.
Suitable for applications requiring high temperature resistance such as HVAC systems, furnace construction, and thermal elements.

Product Description

Lapp 50000 OLFLEX HEAT 180 SiF Series Yellow Green 1 mm² Hook Up Wire offers exceptional performance in demanding electrical environments with temperatures ranging from -50°C up to 180°C.

This hook up wire features a silicone rubber jacket known for its flame retardant and halogen-free properties according to international IEC standards. The conductor is made from 32 strands of tin-plated copper wire, each 0.2 mm in diameter, ensuring excellent flexibility and conductivity.

The cable is designed for working voltages of 300 and 500 volts, making it suitable for a wide range of industrial and commercial electrical applications such as HVAC systems, heating elements, furnace construction, generators, transformers, and lighting technology.

Its resistance to oils, fats, and various chemical substances enhances durability and reliability in chemically aggressive environments. The product is halogen-free, ensuring reduced corrosive gases in the event of fire, improving workplace safety.

The silicone insulation provides outstanding temperature resistance and cold flexibility, crucial for applications requiring long service life in harsh thermal conditions. The wire meets standards IEC 60754-1, IEC 60754-2, and IEC 60332-1-2 for halogen-free and flame retardant properties.

The cable is supplied in 100 meter lengths, coiled and shrink wrapped for convenient handling and installation. The minimum bending radius for fixed installations is 6 times the cable diameter, preserving cable integrity during installation.

Yellow and green silicone rubber jacket for durability and identification. 32 strands of 0.2 mm tin copper conductor for flexibility. Rated for 300 and 500 volts continuous voltage applications. Operating temperature range from -50 °C to +180 °C.

Flame retardant, halogen-free insulation enhancing fire safety. Resistance to oils, fats, and chemical substances. Compliant with IEC 60754-1, IEC 60754-2, and IEC 60332-1-2 standards. Ideal for HVAC, thermal elements, furnace construction, and generator manufacturing.

Supplied as 100 meter coil, shrink wrapped, not on reel. Explore more products in Hook Up Wire at EnvMart for your electrical wiring needs.
