Lapp OLFLEX HEAT 180 SiF Series Blue 0.25 mm² Hook Up Wire, 14 x 0.15 mm Strands, 100 m, Silicone Rubber 47002

Lapp 47002 OLFLEX HEAT 180 SiF Series Blue Hook Up Wire is a single-core cable designed to withstand high temperature environments up to 180°C. Featuring a silicone rubber jacket and 14 strands of 0.15 mm tin copper wire conductors, this cable ensures maximum flexibility and durability in harsh conditions.

This cable is rated for voltages of 300 and 500 volts and is halogen-free according to IEC 60754-1 standards with low corrosive combustion gases per IEC 60754-2. Flame retardance complies with IEC 60332-1-2, providing safety in fire-prone environments.

It is resistant to oils, fats, and chemical substances, making it suitable for industrial, HVAC, furnace construction, thermal and heating elements, and manufacturing applications such as generators and transformers. The blue silicone jacket provides excellent insulation while maintaining flexibility.

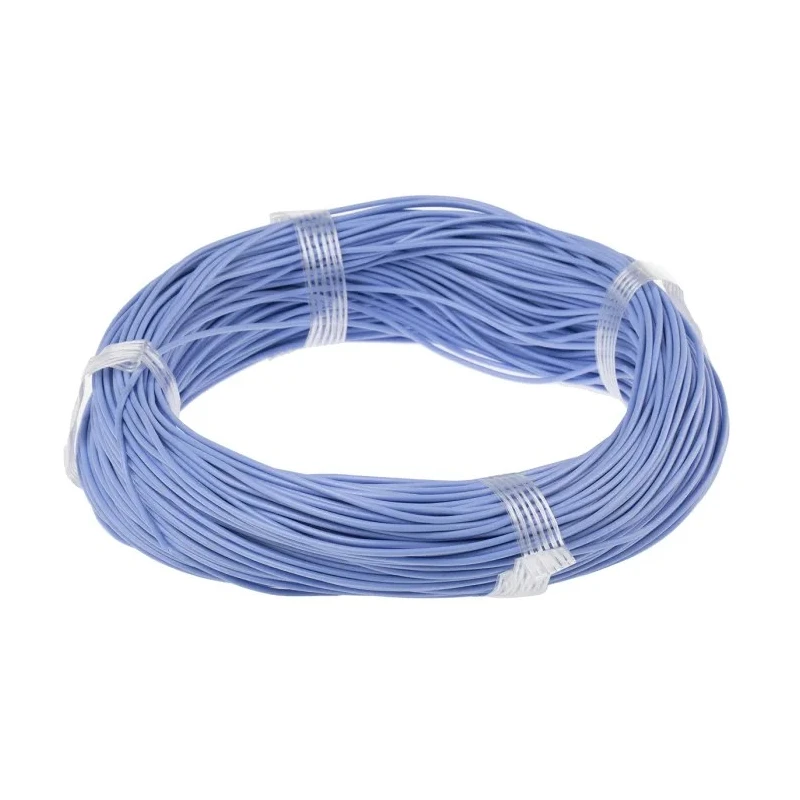

The cable's length is 100 meters with an outside diameter of 1.9 mm and is supplied coiled and shrink-wrapped for ease of handling, not on a reel. Minimum bending radius for fixed applications is six times the cable diameter.

Operating temperature range: -50°C to 180°C. Voltage rating: 300, 500 volts. Conductor: 14 strands x 0.15 mm tin copper wire. Jacket material: Blue silicone rubber providing halogen-free and flame retardant properties. Standards compliance: IEC 60754-1, IEC 60754-2, IEC 60332-1-2.

Applications include HVAC systems, heating elements, furnace construction, and electrical manufacturing.

This high-performance cable from Lapp is engineered for reliability in demanding thermal and electrical environments. Explore high-quality cables and wires for professional industrial and commercial use here at EnvMart.
