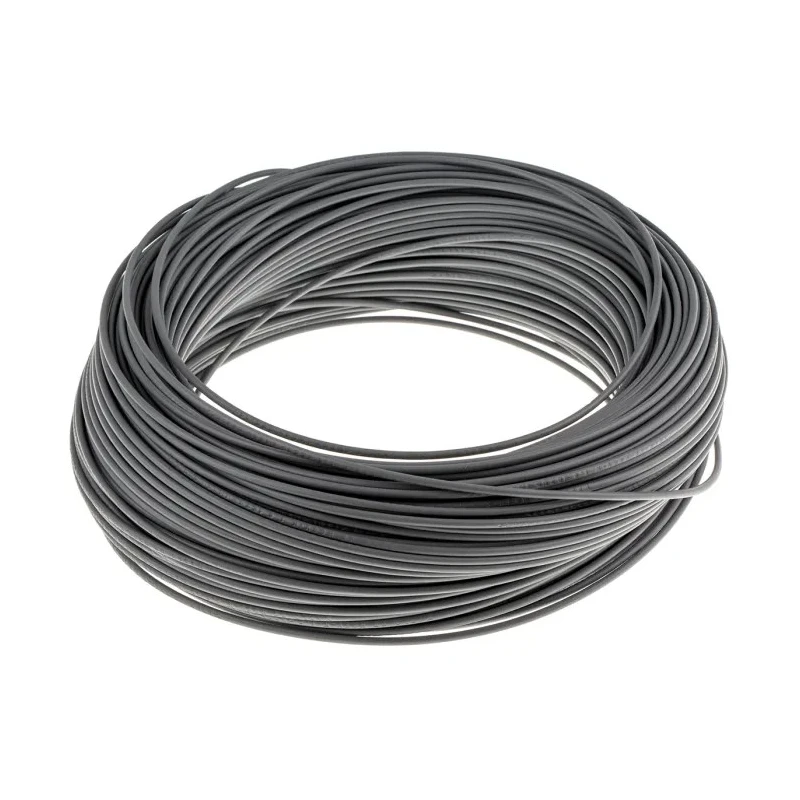

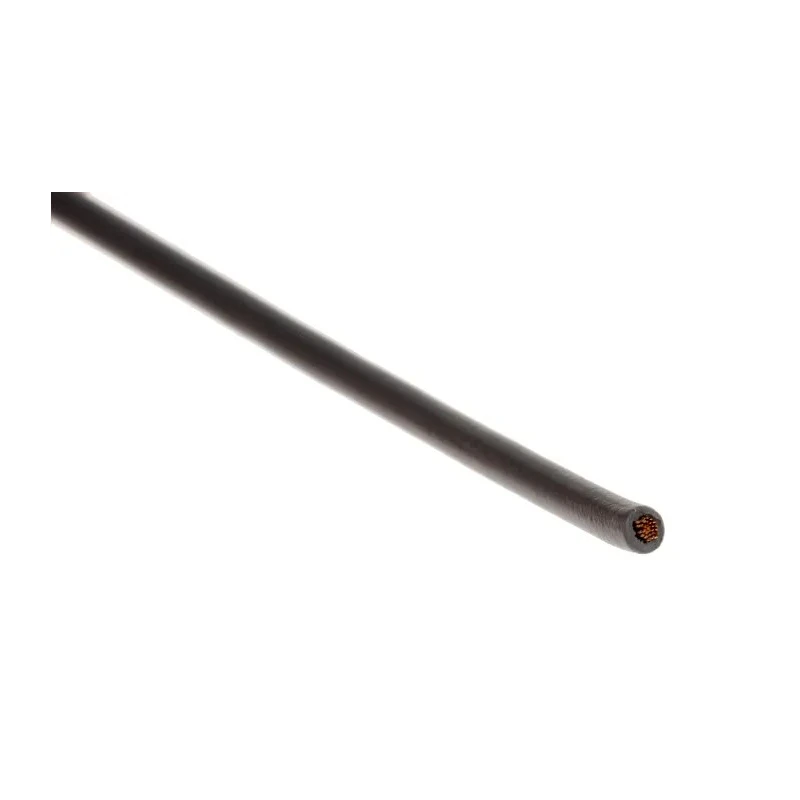

Lapp H07V-K Series Grey 1.5 mm² Flexible Single Core Hook Up Wire, 450/750V, 100 m, Polyvinyl Chloride 4520061
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 450, 750V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 1.5mm² |
| Model | 4520061 |
| Cable Length | 100m |
| Series | H07V-K |
| Outside diameter | 3mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Bare Copper |
| Sub Type | Single Core |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE marked, HAR acc. to EN 50525-2-31 |
| Jacket Colour | Grey |
| Number of Strands | 30 |
| Core Strands | 30 x 30AWG |
| Size of Strands | 30AWG |
| • Operating Temperature when Fixed | -40°C to +80°C |
| RS PRO Grey 1.5 mm² Hook Up Wire, 16 AWG, 100 m, Polyvinyl ChlorideBrand | RS PRO |
Key Features
- The wire cross sectional area is 1.5 mm² suitable for medium duty wiring.
- Outer diameter of 3 mm ensures compact wiring solutions.
- Maximum operating temperature up to 70°C with a minimum of -40°C when fixed.
- Made with bare copper conductor strands (30 strands of 30 AWG) for excellent conductivity.
- Complies with CE marking and HAR certification according to EN 50525-2-31 standards.
- Flame retardant insulation conforming to IEC 60332-1-2 standards for safety.
- Polyvinyl chloride jacket provides durability and chemical resistance.
- Ideal for wiring in devices, industrial machinery, and control cabinets.
Product Description
Lapp 4520061 H07V-K Series Grey 1.5 mm² Single Core Hook Up Wire is engineered for power and control circuits requiring flexible, durable wiring solutions. The wire features a finely stranded bare copper conductor composed of 30 strands of 30 AWG wire, offering superior conductivity and bending resistance.
This hook up wire is insulated using flame-retardant polyvinyl chloride (PVC) that complies with IEC 60332-1-2 flame retardant standards and carries CE marking along with HAR certification per EN 50525-2-31. It operates reliably at voltages up to 450/750 volts with a temperature range of -40°C to 70°C when fixed.
The wire's 3 mm outside diameter allows efficient use in compact cable ducts and control systems. It is suitable for use in industrial machinery, medical equipment, power management systems, and control cabinets that require wiring with enhanced flame safety and mechanical flexibility.
The wire cross section of 1.5 mm² supports medium current carrying capacity applications. Flexible PVC insulation ensures resistance to mechanical stresses and chemical exposures. Har-rated insulation assures compatibility with European machinery safety standards.
Operating temperature range ensures use in diverse environmental conditions from cold to warm indoor settings. Copper conductor's fine strand design improves reliability during bending and vibration.
This product is ideal for installation in enclosed ducts, tubing, and within plastered walls but should not be used for direct laying on open racks or trays. It serves well in industrial, electrical automation, and control wiring applications requiring compliance with European electrical safety and fire standards.
Browse more options in EnvMart's Hook Up Wire category for compatible cable solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 70°C when fixed.
This wire is rated for voltages of 450V and 750V.
The cross-sectional area of this hook up wire is 1.5 mm², suitable for medium current carrying capacity applications.
The outside diameter of this model is 3 mm, allowing for efficient use in compact cable ducts.
This wire features a bare copper conductor and is insulated with a polyvinyl chloride (PVC) jacket.
The conductor is made up of 30 strands of 30 AWG wire, providing excellent conductivity and flexibility.
It complies with CE marking and HAR certification according to EN 50525-2-31 standards.
The minimum operating temperature for this model is -40°C when fixed.
This hook up wire is suitable for use in industrial machinery, medical equipment, power management systems, and control cabinets.
The insulation is flame-retardant and conforms to IEC 60332-1-2 standards for safety.
This hook up wire is available in a length of 100 meters.
It is designed for medium duty wiring applications, particularly in control and power circuits.
