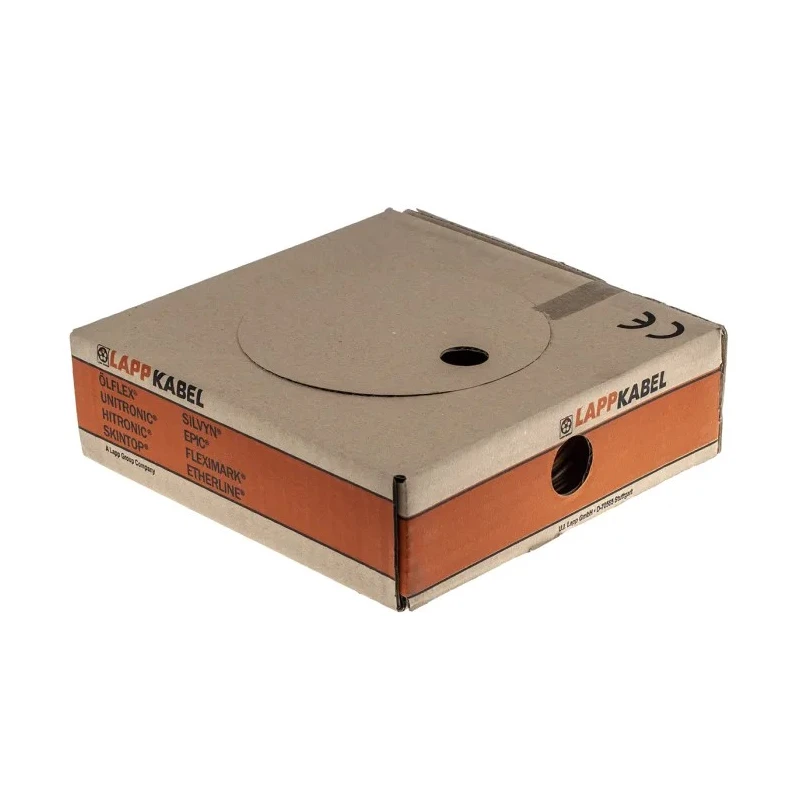

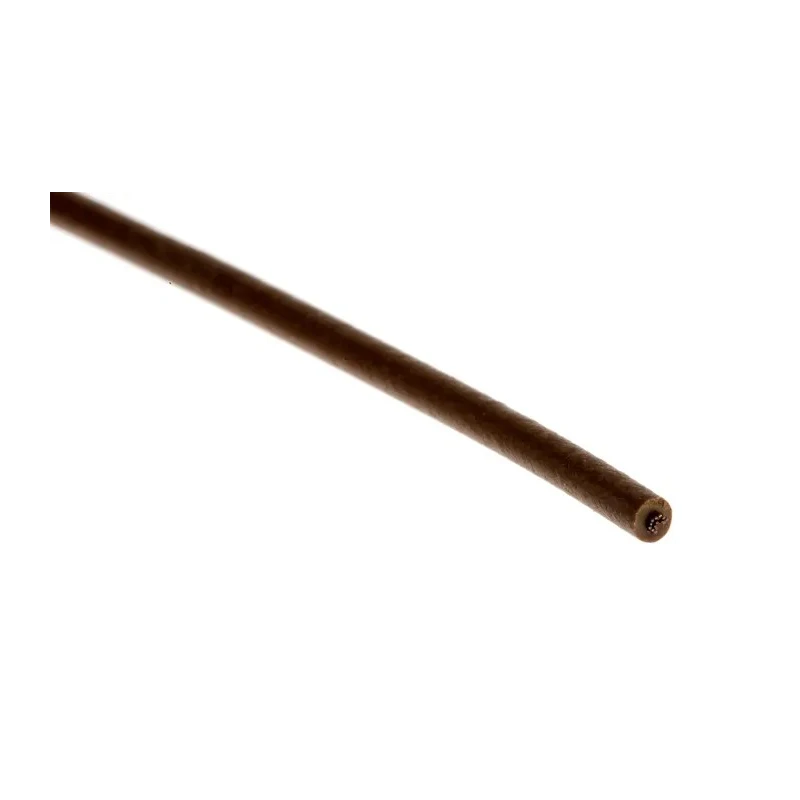

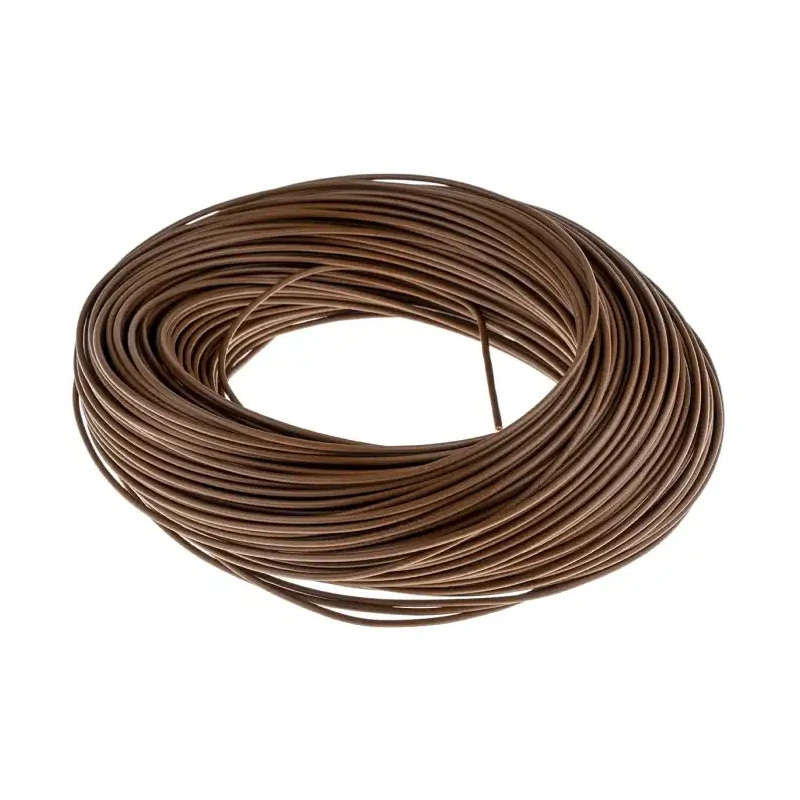

Lapp Low Smoke Zero Halogen (LSZH) Brown 0.5 mm² Hook Up Wire, Single Core, 100 m, 300/500V, 90°C, Cross Linked 4725031

Lapp 4725031 Low Smoke Zero Halogen (LSZH) Hook Up Wire is a high-quality, brown-colored, 0.5 mm² single core cable designed for internal wiring applications with a rated voltage of 300/500V and a maximum operating temperature of 90°C. Its cross linked insulation provides enhanced safety by limiting smoke and halogen emissions in the event of fire.

This cable is flame retardant, conforming to IEC 60332-1-2 and EN 60332-1-2 fire behavior standards, making it suitable for use in environments where safety is paramount. The conductor material is bare copper, offering excellent electrical conductivity and mechanical flexibility.

The wire is ideal for use in dry rooms and can be installed inside conduits and sealed trunking, commonly used for wiring appliances and fittings. It meets several certifications and standards including EAC, CE, and EN 50525-3-41, ensuring compliance with international quality and safety requirements.

Typical industrial use cases include control cabinets, switchgear cabinets, and distribution boxes, as well as applications in underground railways, ships, power plants, and nuclear facilities where low smoke and halogen-free materials are essential due to limited ventilation and fire safety concerns.

Key features include its low smoke and halogen-free properties, flame retardant characteristics, and a temperature operating range from -40°C to +90°C. This cable supports safe and reliable electrical connectivity in industrial, commercial, and specialized environments.

This wire features low smoke zero halogen insulation, enhancing safety in fire conditions. The cable length is 100 meters with an outside diameter of 2.6 mm. The conductor is made of bare copper for excellent conductivity.

It is flame retardant and meets IEC 60332-1-2 and EN 60332-1-2 standards. Suitable for installation inside conduits and sealed trunking in dry rooms. Certified according to EAC, CE, and EN 50525-3-41 standards. Designed for applications such as control cabinets, switchgear, and distribution boxes.

Operating temperature ranges from -40°C to +90°C, supporting a wide range of environments. Explore the extensive range of wires and cables at EnvMart for reliable industrial and commercial wiring solutions.
