Lapp H05Z-K Series Green, Yellow 1 mm² Hook Up Wire 100 m Low Smoke Zero Halogen (LSZH) Cross Linked 4725003

Lapp 4725003 Hook Up Wire is a high-quality 1 mm² low smoke zero halogen (LSZH) single core wire ideal for safe electrical internal wiring applications operating at voltages between 300 and 500 volts. It features bare copper conductors and green/yellow LSZH cross linked insulation providing flame retardancy and low smoke emissions, making it suitable for environments where fire safety is critical.

This harmonized H05Z-K series cable supports a maximum operating temperature of 90°C and minimum operating temperature of -40°C. The cable’s outer diameter is 2.9 mm, and it is designed to withstand stringent safety standards such as EAC, EN 50525-3-41, and CE compliance. It offers excellent performance with flame retardance as per IEC 60332-1-2 and reduces smoke density according to IEC 61034.

The hook-up wire is extensively used in industrial and commercial electrical installations including control cabinets, switchgear cabinets, and distribution boxes. Its use is particularly recommended where protection of personnel and equipment from harmful halogen gases is necessary such as underground railways, ships, and power plants.

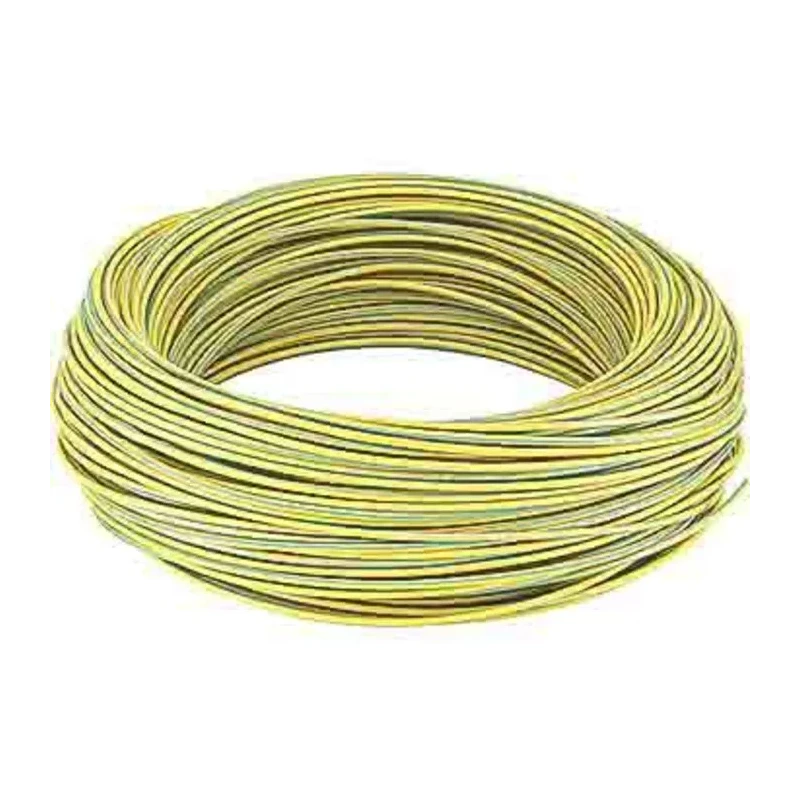

The product comes in a 100 meter length coil, making it convenient for large-scale wiring projects. It is made from premium bare copper conductor strands ensuring excellent conductivity and reliable performance.

Accessories compatible with this wire include Lapp cable glands from the SKINTOP CLICK range which accommodate different wire diameters for secure termination and cable management in control and switchgear cabinets.

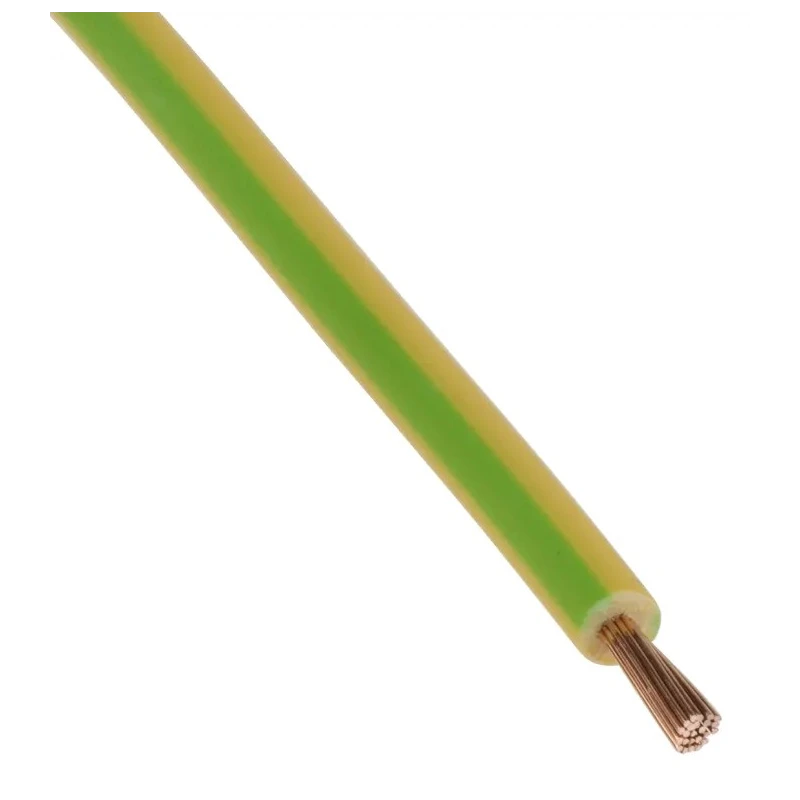

The wire features a bare copper conductor with a cross-sectional area of 1 mm². The cable length is 100 meters with an outside diameter of 2.9 mm. Jacket colors are green and yellow using LSZH cross linked insulation material.

Voltage rating supports 300 to 500 volts for various electrical installations. Maximum operating temperature is 90°C, minimum -40°C, suitable for diverse environments. Complies with harmonized standards including EAC, EN 50525-3-41, and CE certification.

Flame retardant in accordance with IEC 60332-1-2 and low smoke per IEC 61034 standards. Ideal for use in control cabinets, switchgear, and distribution boxes in industrial and commercial settings. Explore more high-quality wires and cables in the Electronics & Electricals category at EnvMart for industrial, laboratory, and commercial applications.
