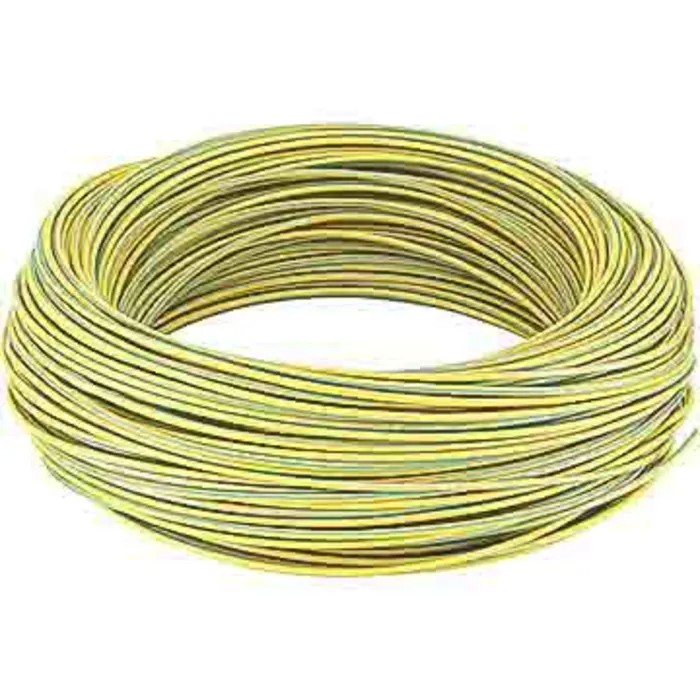

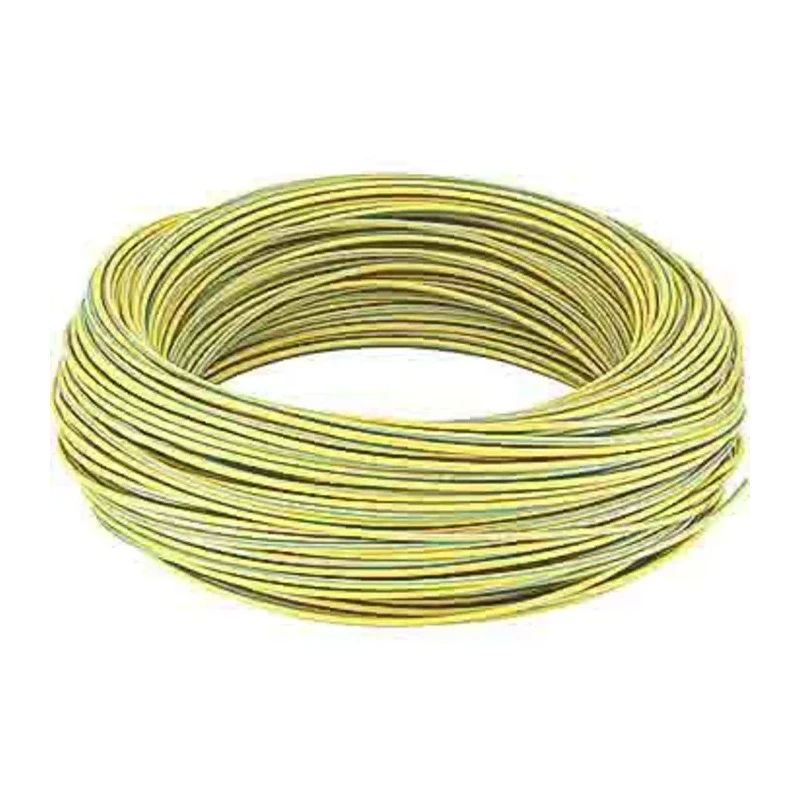

Lapp H05Z-K Series Yellow, Green 0.5 mm² Low Smoke Zero Halogen (LSZH) Cross Linked Hook Up Wire, 100 m, 300-500V 4725001

Lapp 4725001 Hook Up Wire is a high-quality yellow and green colored single core cable from the H05Z-K series featuring Low Smoke Zero Halogen (LSZH) cross linked insulation. This 0.5 mm² cross sectional area hook up wire extends 100 meters in length and is rated for a voltage of 300 to 500V with a maximum operating temperature of 90°C and a minimum operating temperature of -40°C.

Designed primarily for internal wiring applications, this cable is ideal for wiring appliances, fittings, and installations inside conduits and sealed trunking. As a halogen-free cable, it significantly reduces harmful smoke and toxic gas emissions in case of fire, making it suitable for environments where safety of personnel and equipment is critical.

The conductor is made of bare copper strands that deliver excellent electrical performance, and the cable has a nominal outside diameter of 2.6 mm. It is flame retardant compliant with IEC 60332-1-2 and meets the harmonized (HAR) standards under EN 50525-3-41, with CE and EAC certifications ensuring its suitability for European market machinery and equipment.

Applications of the Lapp H05Z-K wire include use in underground railways, ships, power plants, nuclear facilities, control cabinets, switchgear cabinets, and distribution boxes. The wire must be installed in dry rooms and is suitable for use within tubes, under plaster, or in dedicated installation ducts.

Accessories such as Lapp’s easy-fit SKINTOP CLICK cable glands facilitate secure termination and management in control cabinets and conduits, compatible with various wire diameters.

The hook up wire features a durable Low Smoke Zero Halogen (LSZH) cross linked insulation for safety in confined environments. It operates within a temperature range from -40°C minimum to 90°C maximum, suitable for various industrial installations.

The cable conductor is made of bare copper with a 2.6 mm outside diameter. The wire is flame retardant according to IEC 60332-1-2 and complies with EN 50525-3-41 standards. It is harmonized under the H05Z-K series and certified with CE and EAC approvals.

Ideal for use in control cabinets, switchgear, distribution boxes, and conduit installations. This product is manufactured in Germany and meets stringent European machinery standards. Explore more products in the Hook Up Wire category for reliable industrial-grade wiring solutions at EnvMart.
