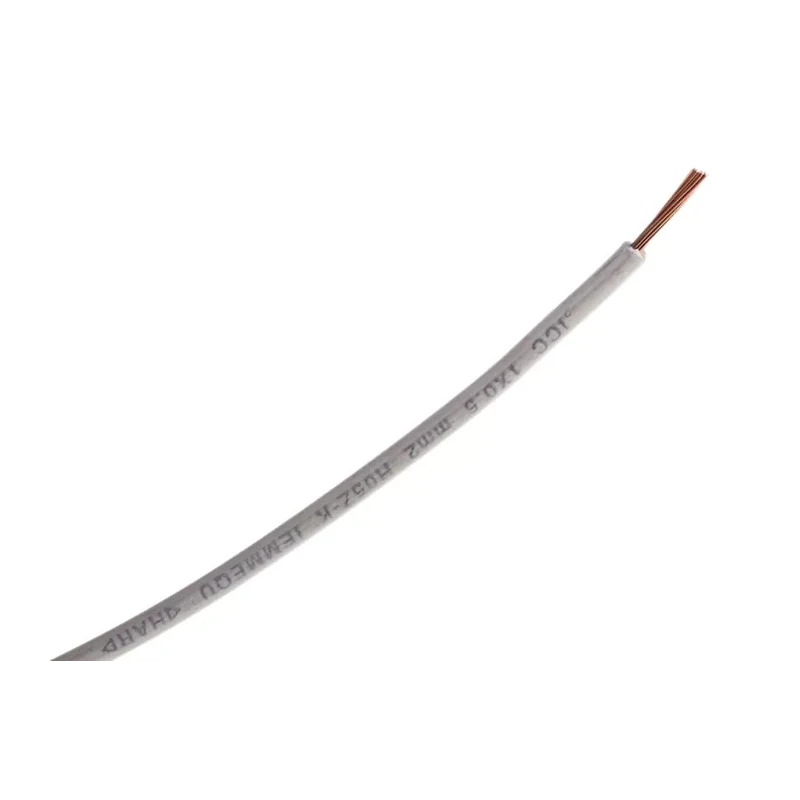

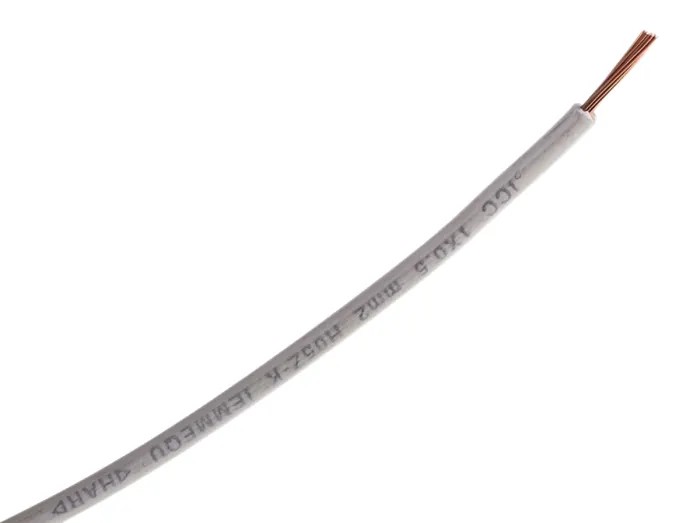

Lapp H05Z-K Series White 0.5 mm² Low Smoke Zero Halogen (LSZH) Cross Linked Insulation Hook Up Wire 100 m 4725051

Lapp 4725051 represents a high-quality H05Z-K Series Hook Up Wire featuring a white low smoke zero halogen cross linked insulation designed for safe and reliable electrical wiring. This 0.5 mm² single core cable extends to 100 meters in length and supports voltage ratings of 300 and 500 volts, making it suitable for a wide range of industrial and electrical applications.

The bare copper conductor delivers excellent conductivity and flexibility. Its LSZH insulation reduces smoke and toxic gas emissions in the event of a fire, enhancing safety especially in low ventilation environments such as aircraft, underground railway, and offshore installations.

The cable is flame retardant according to IEC 60332-1-2 and complies with harmonized cable standards (HAR) including CE and EAC certifications, ensuring conformity to European regulations. It operates reliably within a temperature range from -40°C to +90°C and has an outside diameter of 2.6 mm, optimized for fitting within conduits, control cabinets, switchgear cabinets, and sealed trunking.

This hook up wire is commonly employed in control and distribution boxes for internal wiring of appliances and electrical equipment. Its halogen-free core prevents harmful corrosive gas emissions during fire, making it suitable for environments that prioritize human and equipment protection.

Additionally, Lapp offers compatible cable management accessories such as SKINTOP CLICK cable glands, which support various wire diameters for secure terminations. The wire features a copper conductor with a cross-sectional area of 0.5 mm².

It has a white LSZH jacket offering flame retardant and halogen-free properties. Designed to operate at voltages of 300 and 500 V and temperatures from -40°C to 90°C. The cable diameter is 2.6 mm and is suitable for dry internal wiring applications.

Complies with standards including EAC, CE, and EN 50525-3-41 for harmonized electrical cables. It ensures low smoke density according to IEC 61034 and flame retardancy as per IEC 60332-1-2. Ideal for use in control cabinets, switchgear cabinets, and sealed trunking installations.

Manufactured in Germany by Lapp adhering to high-quality industrial standards.

This product is essential for electrical automation, industrial machinery wiring, power plants, and environments requiring stringent fire safety compliance. Explore more from the Lapp brand and other Hook Up Wire options at EnvMart.
