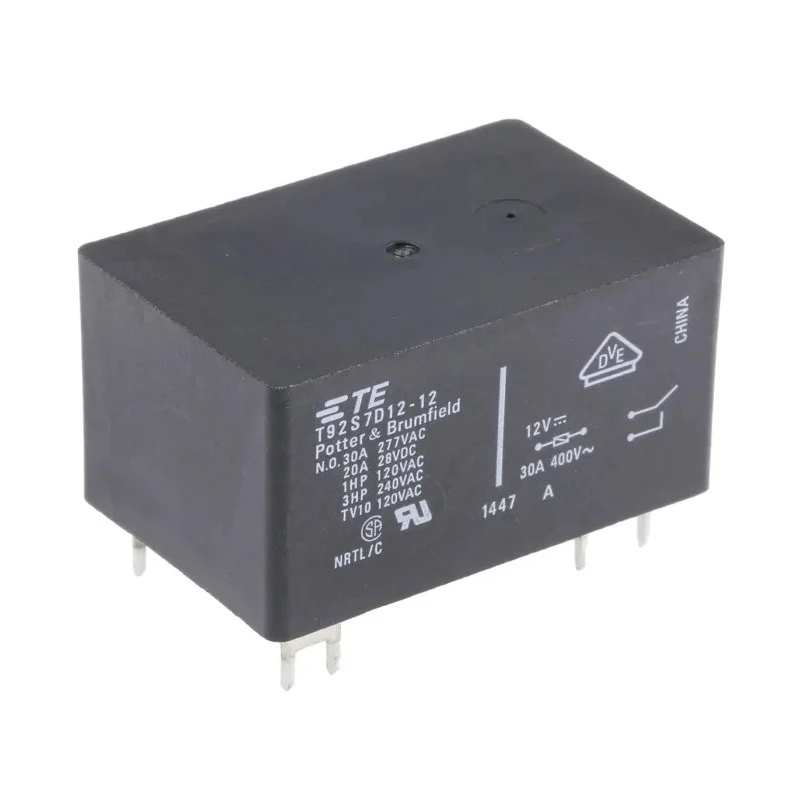

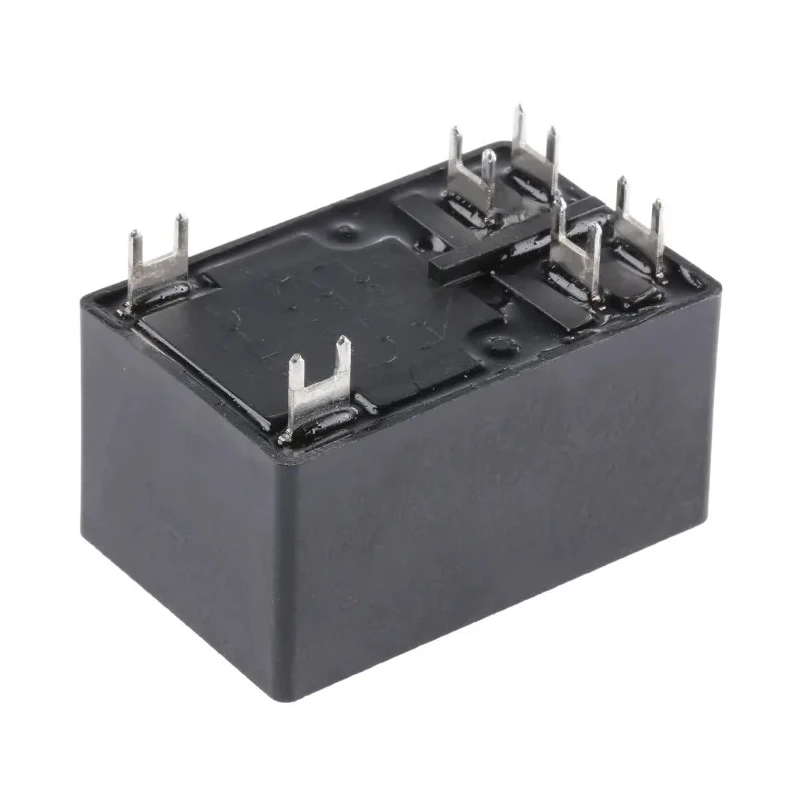

TE Connectivity PCB Power Relay 12V DC Coil 30A Switching Current DPST T92S7D12-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 30.7mm |
| Length | 52.3mm |
| Model | T92S7D12-12 |
| Width | 34.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Solder |
| Standards/Approvals | CSA, ELV, IEC, REACH, RoHS, UL, VDE |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 86Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 1.7W |
Key Features
- Non-latching PCB mount relay designed for high current switching applications.
- Operates with 12V DC coil voltage and low coil power of 1.7 watts.
- Switching current capability up to 30 amperes with 600V AC maximum switching voltage.
- Contact material is durable silver alloy for reliable conductivity.
- Wide temperature range operation from -55°C to 85°C for robust performance.
- Terminals use solder type suitable for PCB mounting.
- Compact form factor with length 52.3mm, width 34.5mm, height 30.7mm.
- Compliant with multiple international standards including CSA, UL, IEC, RoHS, and VDE.
Product Description
TE Connectivity T92S7D12-12 PCB Power Relay features a 12V DC coil voltage and DPST contact configuration capable of switching 30 amperes current, making it ideal for various industrial and electrical automation applications.
This non-latching relay is designed for PCB mounting with solder type terminals, ensuring secure and reliable electrical connections. The coil resistance is 86 ohms with a coil power of 1.7 watts, optimized for efficient actuation.
The contact material is silver alloy, chosen for its excellent conductivity and durability, supporting switching voltages up to 600V AC. This relay operates reliably within a broad temperature range from -55°C up to 85°C, suitable for harsh environments.
With dimensions of 52.3mm length, 34.5mm width, and 30.7mm height, it offers a compact footprint for space-constrained applications. The relay meets stringent certifications and standards such as CSA, UL, IEC, RoHS, REACH, and VDE, attesting to its quality and safety compliance.
This product is widely used in industrial control systems, automation panels, HVAC units, manufacturing equipment, and electrical power control circuits requiring dependable high-current switching on a printed circuit board.
Non-latching relay with DPST contact configuration. 12V DC coil voltage and 1.7W coil power consumption. 30A switching current rating at up to 600V AC. Silver alloy contacts for long service life and conductivity. Wide operating temperature range from -55°C to 85°C.
PCB mount with solder terminals for reliable installation. Compact size: 52.3mm x 34.5mm x 30.7mm. Certified to CSA, UL, IEC, RoHS, REACH, and VDE standards. Explore EnvMart's extensive range of high-quality Power Relays and electrical components to find reliable solutions for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC.
It can handle a maximum switching current of 30 amperes.
This relay features a DPST (Double Pole Single Throw) contact configuration.
The maximum AC switching voltage for this relay is 600V.
The dimensions of this relay are 52.3mm in length, 34.5mm in width, and 30.7mm in height.
The coil power consumption is 1.7 watts.
The contacts are made of durable silver alloy, which provides excellent conductivity.
This relay operates within a temperature range from -55°C to 85°C.
It uses solder type terminals suitable for PCB mounting.
The relay is compliant with multiple standards including CSA, UL, IEC, RoHS, REACH, and VDE.
The coil resistance is 86 ohms.
This relay is suitable for industrial control systems, automation panels, HVAC units, and electrical power control circuits.
