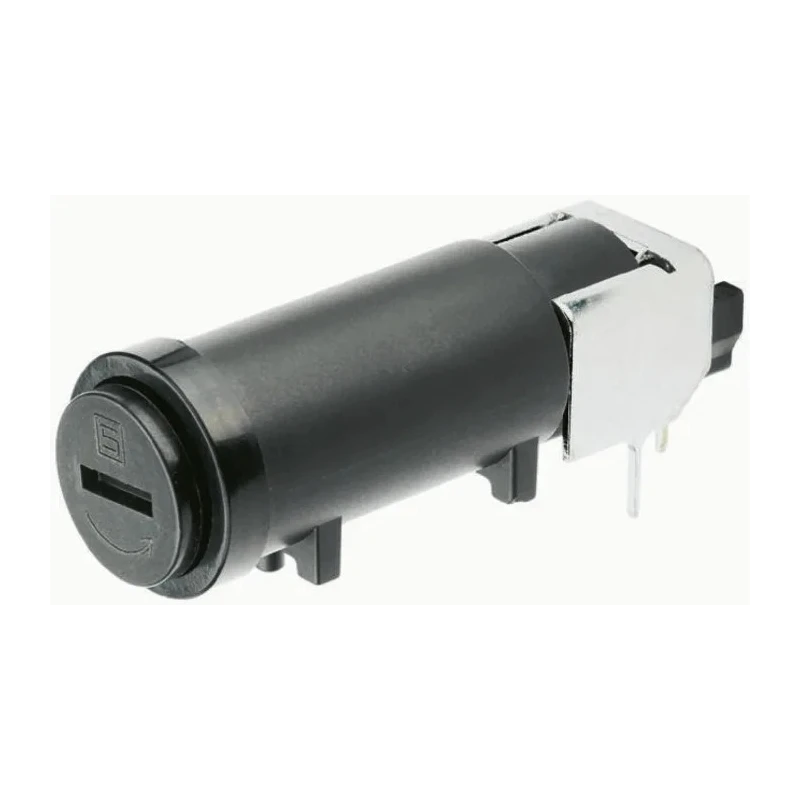

Schurter 16A PCB Mount Fuse Holder for 5 x 20 mm, 500V AC Thermoset Body, Slotted Cap 0031.2510

Schurter 0031.2510 is a high-quality PCB Mount Fuse Holder designed for 5 x 20 mm cartridge fuses with a current rating of 16A and voltage rating of 500V AC. It features a robust thermoset body material, providing excellent electrical insulation and mechanical strength for reliable use in various industrial and electronic environments.

The fuse holder includes a slotted cap with a screwdriver slot allowing easy fuse replacement and maintenance. The solder terminal type combined with tin-plated copper contact material ensures durable and efficient electrical connectivity.

With an operating temperature range from -40°C to 85°C, this fuse holder withstands harsh conditions, making it suitable for industrial equipment, electronic devices, and three-phase supply systems. Its low-profile design with a 19 mm head diameter and 54.8 mm external depth facilitates compact PCB mounting with protection walls to enhance safety.

The spring-loaded bayonet-type fuse carrier and knob help prevent accidental misuse, ensuring secure fuse installation. This product complies with major international standards including UL 4248-1, VDE, CSA 22.2 no. 4248-1, CE, RoHS, IEC 60127-6, and carries certifications such as UL File Number E39328 and VDE Certificate Number 40010391. It also meets IP40 rating for shock safety.

Applications span a broad range of electronic and industrial equipment where primary circuit protection is critical. This fuse holder is particularly well suited for power and household electronics, control engineering, and other manufacturing uses requiring reliable fuse integration and replacement.

Set your equipment up with the durable and certified Schurter 0031.2510 fuse holder for enhanced safety and performance in your electrical installations. The fuse holder supports 5 x 20 mm cartridge type fuses safely and reliably.

It has a thermoset body material ensuring electrical insulation and durability. The slotted cap provides quick and easy fuse replacement with a screwdriver slot. Solder-type terminals and tin-plated copper contacts guarantee sound electrical connection.

Compatible with industrial, electronic, and 3-phase supply equipment applications. Operating temperature range is from -40°C to +85°C to endure harsh environments. The fuse holder meets UL, RoHS, VDE, CSA, CE, and IEC approvals for international safety standards.

Low profile design with 19 mm head diameter and 54.8 mm external depth suits PCB mounting. Its spring-loaded bayonet type fuse carrier prevents accidental misuse in circuits. Shock-safe design certified to IP40 standards for user protection.
