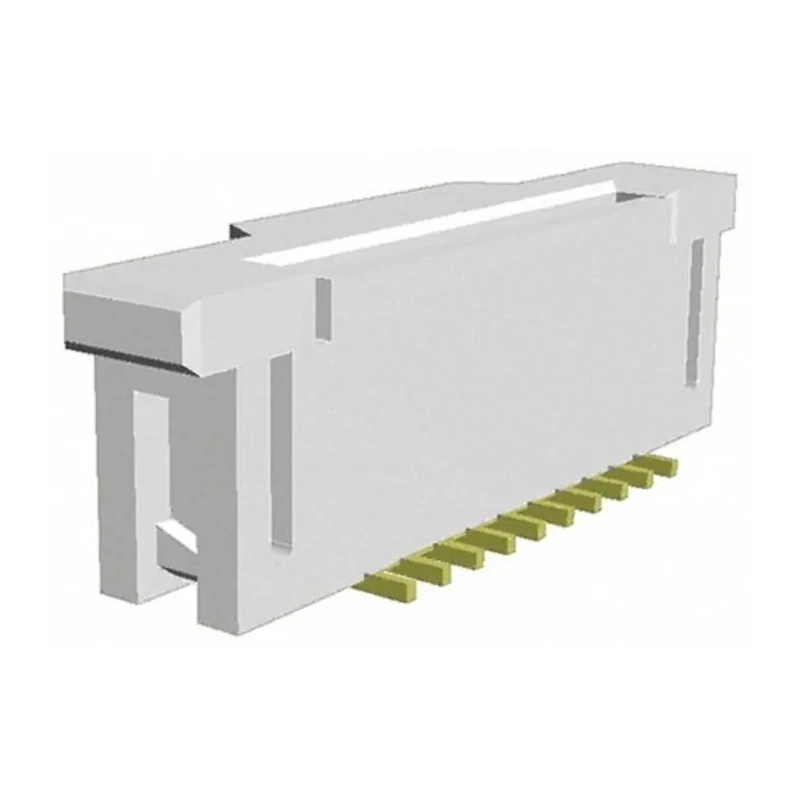

TE Connectivity FPC 1 mm Pitch 10 Way Straight Female FPC Connector Solder 1-1734248-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V dc |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide 9T |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Compact 10-contact design suited for fine pitch applications.
- Phosphor bronze contacts plated with gold over nickel for reliable conductivity.
- Surface mount type connector with top contact position.
- Zero Insertion Force (ZIF) sliding lock actuator ensuring easy cable insertion and secure connection.
- Operating voltage up to 125 V DC and current rating of 1 A.
- Suitable for temperatures ranging from -20°C to 85°C.
- Housing made from durable Polyamide 9T material for mechanical stability.
- Connector features locking mechanism for enhanced retention and vibration resistance.
Product Description
TE Connectivity 1-1734248-0 FPC Connector is a 1 mm pitch, 10 way straight female FPC connector designed for solder termination and surface mounting on PCBs. It features phosphor bronze contacts plated with gold over nickel, ensuring excellent electrical performance and corrosion resistance. The connector offers a compact design ideal for routing signals in electronic devices where space constraints exist.
This connector incorporates a Zero Insertion Force (ZIF) slide lock actuator mechanism that facilitates easy insertion of flexible printed circuits (FPC) with reduced wear and increased mating cycle life. The slide lock securely holds the cable to prevent disconnections in high vibration environments. The housing is made of high-performance Polyamide 9T, providing mechanical strength and durability.
Operating voltage is rated at 125 V DC with a current capacity of 1 A. The product withstands a temperature range from -20°C to 85°C, making it suitable for a variety of industrial and commercial electronics applications. The connector is optimized for top contact position and surface mount placement on PCBs.
Additional solder tabs enhance retention on the PCB without requiring extra application tooling. This product is widely used in handheld scanners, set-top boxes, PCs, and business equipment, as well as industrial and medical devices where reliable and compact flexible cable connection is essential.
Compact 10-contact design suited for fine pitch applications. Phosphor bronze contacts with gold over nickel plating for reliable conductivity. Surface mount connector with top contact positioning. Zero Insertion Force (ZIF) slide lock actuator for easy and secure FPC insertion.
Rated for 125 V DC and 1 A current load. Operates across -20°C to 85°C temperature range. Durable Polyamide 9T housing material. Locking mechanism to prevent disconnection under vibration. Ideal for handheld scanners, set-top boxes, PCs, and industrial applications.
Solder tabs provide enhanced PCB retention without extra tooling. Explore more connectors and electronic components in the FPC Connector category on EnvMart to find compatible parts appropriate for your design and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for an operating voltage of up to 125 V DC.
It has a current rating of 1 A.
This model operates effectively within a temperature range of -20°C to 85°C.
The housing is made from Polyamide 9T, and the contacts are phosphor bronze plated with gold over nickel.
This FPC connector features a compact design with 10 contacts.
It is designed for surface mounting on PCBs.
The connector has a straight orientation.
The ZIF mechanism allows for easy insertion of flexible printed circuits (FPC) while reducing wear and increasing the mating cycle life.
The contact position is designed to be top contact.
It is widely used in handheld scanners, set-top boxes, PCs, and various industrial and medical devices.
Yes, it features a locking mechanism that enhances retention and provides resistance to vibration.
This model uses solder termination for connection.
