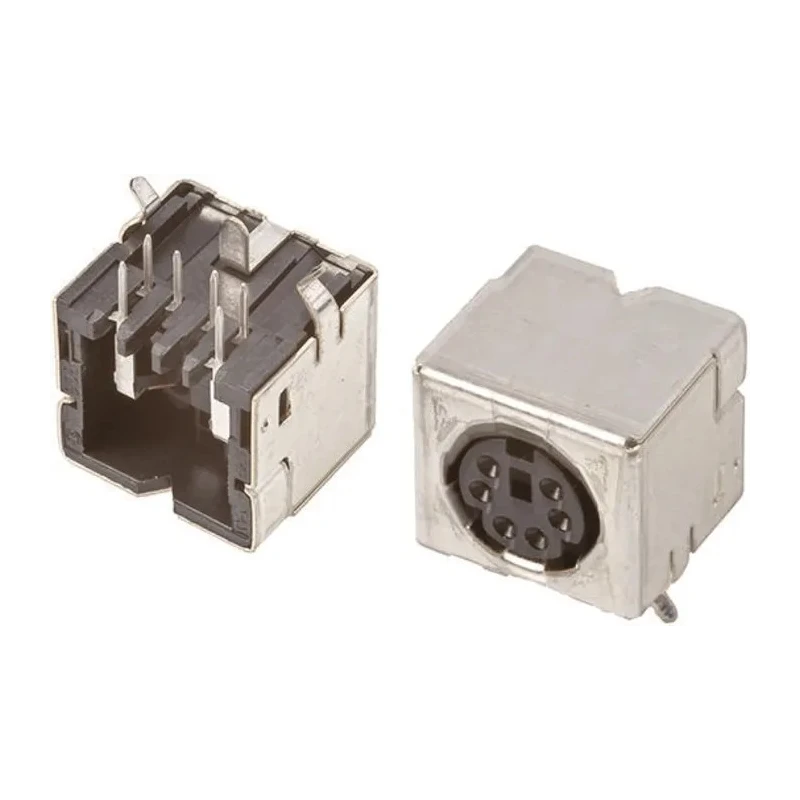

TE Connectivity Mini DIN 6 Pole Right Angle Miniature DIN Socket 1A 30V AC Keyed Through Hole Female 5750071-1

TE Connectivity 5750071-1 Mini DIN 6 Pole Right Angle Miniature DIN Socket is a high-quality circular connector designed for reliable electronic component connections. Rated at 1A current and 30V AC voltage, this shielded DIN socket is ideally suited for applications requiring robust signal integrity and compact form factor.

The right angle PCB mounting via through hole technology provides a sturdy mechanical connection and space-efficient layout. The connector’s housing is composed of flame-retardant 94V-0 thermoplastic material, compatible with IR reflow soldering processes, ensuring durability and performance in industrial environments.

Each of the six female contacts is fabricated from copper alloy with gold over nickel plating to guarantee corrosion resistance and excellent electrical conductivity. The connector is keyed and polarized to prevent mismating and ensure secure connections in sensitive systems.

Operating temperature ranges from -55°C to 105°C, making this product suitable for use in harsh temperature conditions common in industrial, manufacturing, electronic equipment, and instrumentation sectors.

The connector assembly includes grounding fingers, providing additional shielding to reduce electromagnetic interference and maintain signal clarity. This connector features a right angle orientation for efficient PCB through hole mounting.

It has 6 female contacts, each plated with gold over nickel for superior conductivity. The housing is made from 94V-0 rated thermoplastic material, which is IR reflow compatible. Designed for operating temperatures from -55°C to 105°C to suit demanding environments.

The connector includes grounding fingers to enhance shielding and signal integrity. Polarized and keyed design prevents mismating with plugs. Contact material is copper alloy ensuring reliable electrical performance. Termination is by soldering facilitating secure PCB attachment.

Ideal for industrial and electronic applications requiring miniature DIN connectors.

This Mini DIN connector is widely used across industrial automation, electronic instrumentation, communication devices, and laboratory equipment requiring reliable, compact interconnections.
