TE Connectivity PCB Power Relay 6V dc Coil 10A Switching Current SPDT PB114006

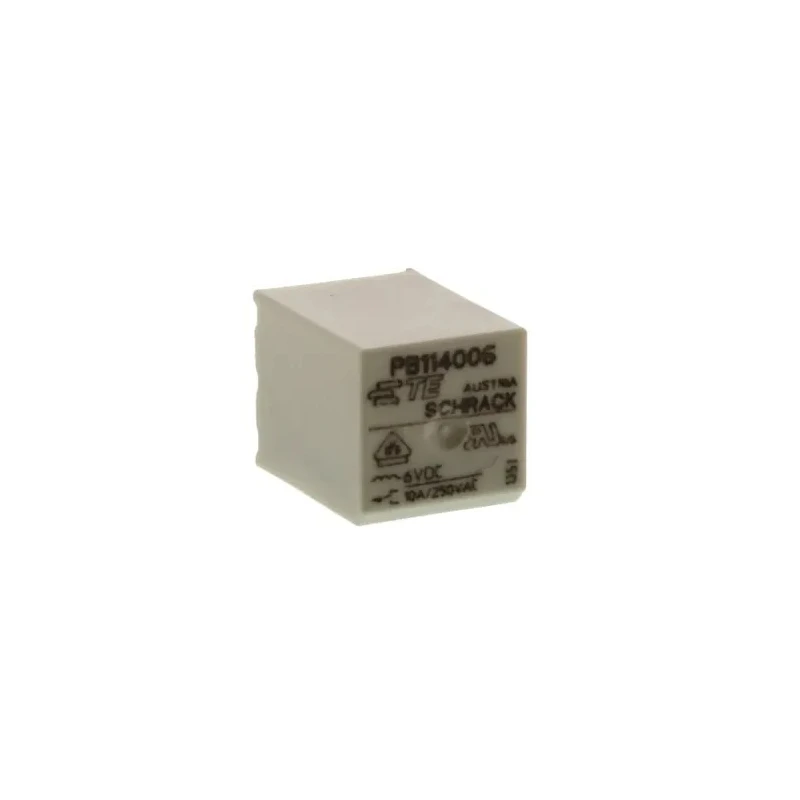

TE Connectivity PB114006 PCB Power Relay is a miniature power relay from the PB series designed for PCB mounting applications. It features a 6V DC coil voltage and a switching current rating of 10A with a Single Pole Double Throw (SPDT) contact configuration. The relay incorporates nickel silver 90/10 cadmium free silver alloy contacts ensuring durability and reliability for industrial and consumer appliances.

This PCB power relay offers a coil power consumption of 360mW with a resistance of 100Ω, contributing to optimized energy use. It supports a rated switching voltage of 240Vac and switching AC voltage up to 400V AC, making it suitable for robust power switching applications.

The relay operates efficiently within a temperature range of -40°C to 85°C, accommodating a wide variety of environmental conditions. With an isolation voltage of 2500V between coil and contacts, it ensures operational safety and compliance with industrial standards including RoHS, REACH, and ELV.

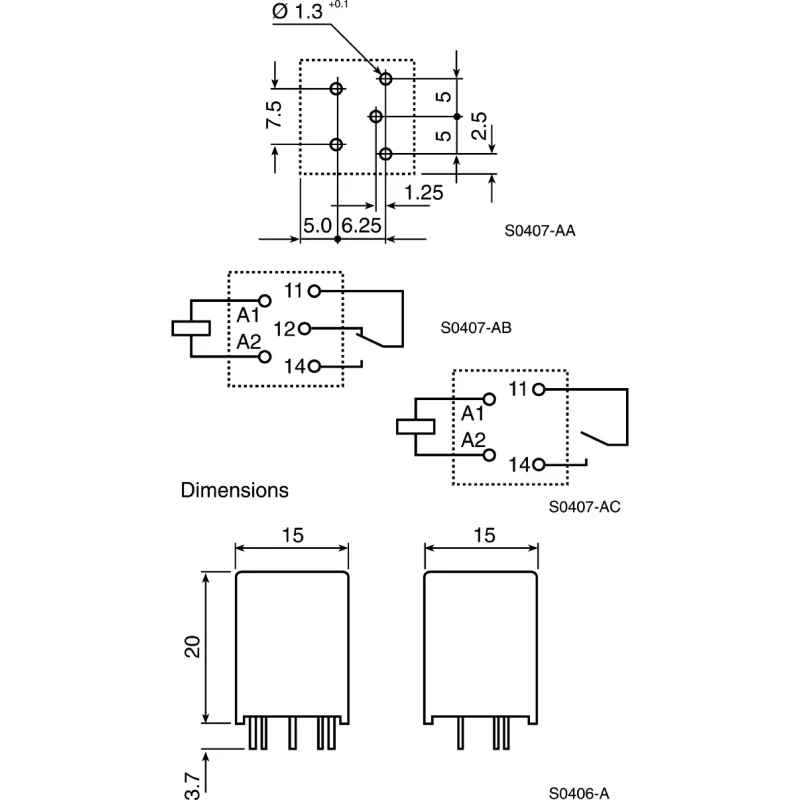

Its compact dimensions of 15mm width, 15mm depth, and 20mm height allow for easy integration on PCBs in various electronic assemblies. The minimum clearance and creepage distance of ≥0.75mm support electrical isolation requirements in demanding applications.

This power relay is ideally suited for industrial automation, home appliances, heating and temperature controllers, and other electrical control systems. Its robust build and adherence to safety standards make it a reliable choice for switching and controlling electrical circuits.

Compact PCB mount power relay from the PB series designed for high process security. Nickel silver 90/10 cadmium free silver alloy contacts with 100mΩ contact resistance. Coil power of 360mW and coil resistance of 100Ω for efficient operation.

Rated switching voltage of 240Vac and switching AC voltage up to 400V AC. Temperature range from -40°C to 85°C suitable for diverse environments. Isolation voltage of 2500V between coil and contact for safety. Dimensions are 15mm x 15mm x 20mm (W x D x H) for compact PCB integration.

Creepage and clearance distance of ≥0.75mm ensures electrical isolation. Explore the Electronics & Electricals category at EnvMart for a comprehensive range of Power Relays and components optimized for industrial and commercial applications.
