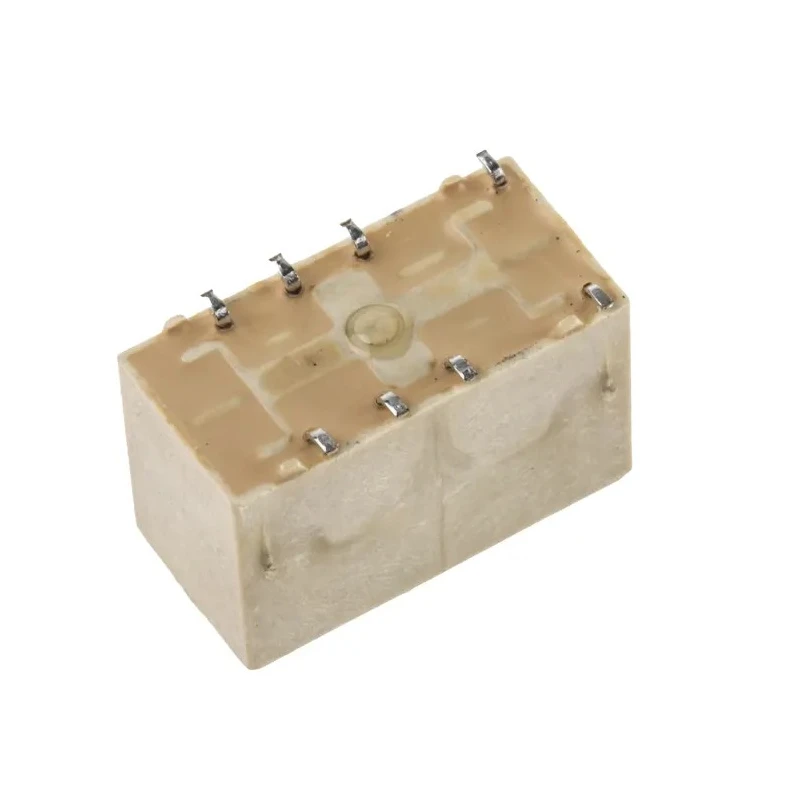

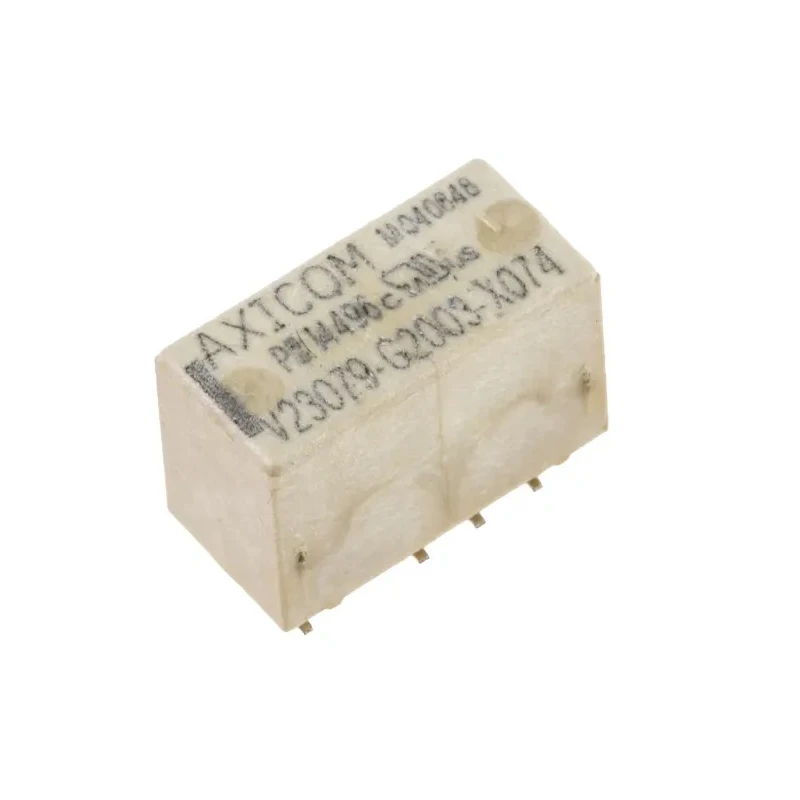

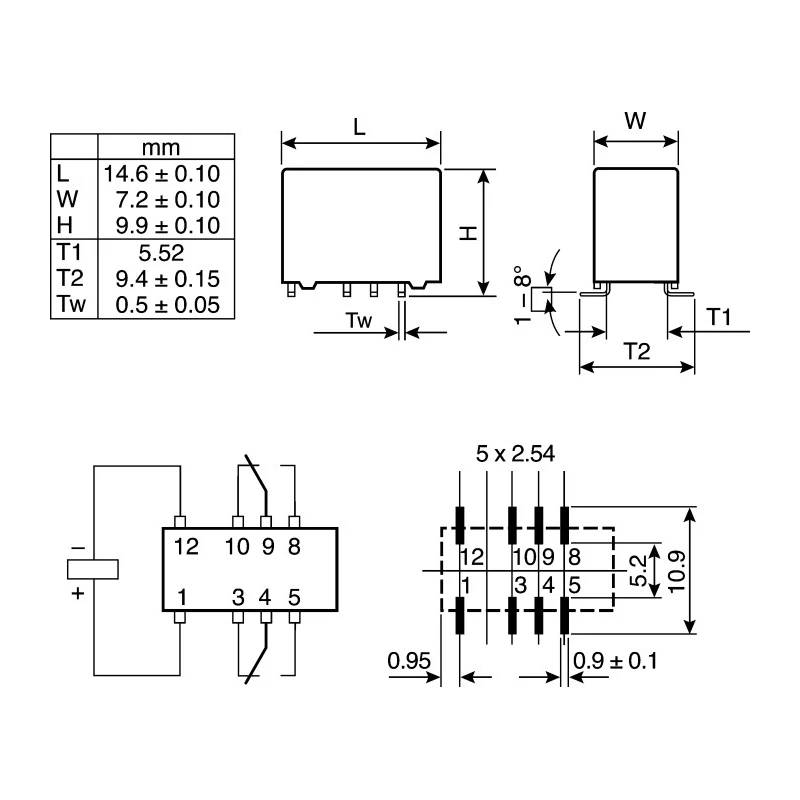

TE Connectivity Surface Signal Relay 12V DC Coil, 2A Switching Current, DPDT, Gold Plated Contacts 1422006-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10.4mm |
| Length | 14.5mm |
| Width | 7.2mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | P2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- This relay features bifurcated gold plated silver nickel DPDT contacts for reliable switching.
- It supports a coil voltage of 12V DC with a power consumption of 200mW.
- Compact surface mount design with dimensions 14.5mm length, 10.4mm height, and 7.2mm width.
- Operates reliably within a temperature range of -40°C to 85°C with RoHS compliance.
- Ideal for use in communications equipment, consumer electronics, office, control, medical, and automotive sectors.
- High insulation resistance exceeding 109Ω at 500V DC ensuring strong electrical isolation.
- Designed for immersion cleaning and offers V-0 flammability classification for safety.
- Surge capability compliant with Telcordia TR-NWT-001089 and IEC 60950 standards.
Product Description
TE Connectivity 1422006-4 Surface Signal Relay is a high-sensitivity electronic component designed for switching and signal conditioning applications in telecommunications, consumer electronics, office equipment, control systems, medical devices, and automotive electronics. It features a 12V DC coil with a low power consumption of 200mW, making it energy efficient.
The relay has a double-pole double-throw (DPDT) contact configuration with bifurcated gold plated silver nickel contacts ensuring low contact resistance and high reliability. Its compact surface mount design measures 14.5mm in length, 10.4mm in height, and 7.2mm in width, making it suitable for space-constrained PCB layouts.
Engineered for harsh industrial environments, the relay operates over a wide temperature range from -40°C to 85°C and complies with RoHS standards. The component is immersion cleanable and has a V-0 flammability rating, enhancing its durability and safety. Insulation resistance is rated above 10^9 Ω at 500V DC, providing excellent electrical isolation.
The coil resistance is specified at 720 Ω, enabling stable coil current control. Surge withstand ratings meet Telcordia TR-NWT-001089 (2/10 μs) and IEC 60950 (10/700 μs) standards with high dielectric strength between open contacts and coil-to-contact gaps.
This relay is well-suited for switching applications in telecommunications equipment including PABX and VOIP systems. It is commonly employed in consumer electronics like set-top boxes and HiFi systems. Other applications include office infrastructure, control panels, medical instrumentation, and automotive electronics.
Package contents typically include one TE Connectivity 1422006-4 Surface Signal Relay with through-hole terminals for simplified PCB mounting. Explore the comprehensive range of Industrial and Electronics components at EnvMart for your Signal Relay needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It has a switching current capacity of 2A.
The dimensions are 14.5mm in length, 10.4mm in height, and 7.2mm in width.
This relay features a double-pole double-throw (DPDT) contact configuration.
The coil power consumption is 200mW.
It has an insulation resistance exceeding 10^9 Ω at 500V DC.
The relay operates reliably within a temperature range of -40°C to 85°C.
The contacts are made of gold plated silver nickel.
It has a V-0 flammability classification.
This model complies with RoHS standards and has surge capability compliant with Telcordia TR-NWT-001089 and IEC 60950 standards.
It features a surface mount design with through-hole terminals for simplified PCB mounting.
The relay can switch up to 220V DC and 250V AC.
