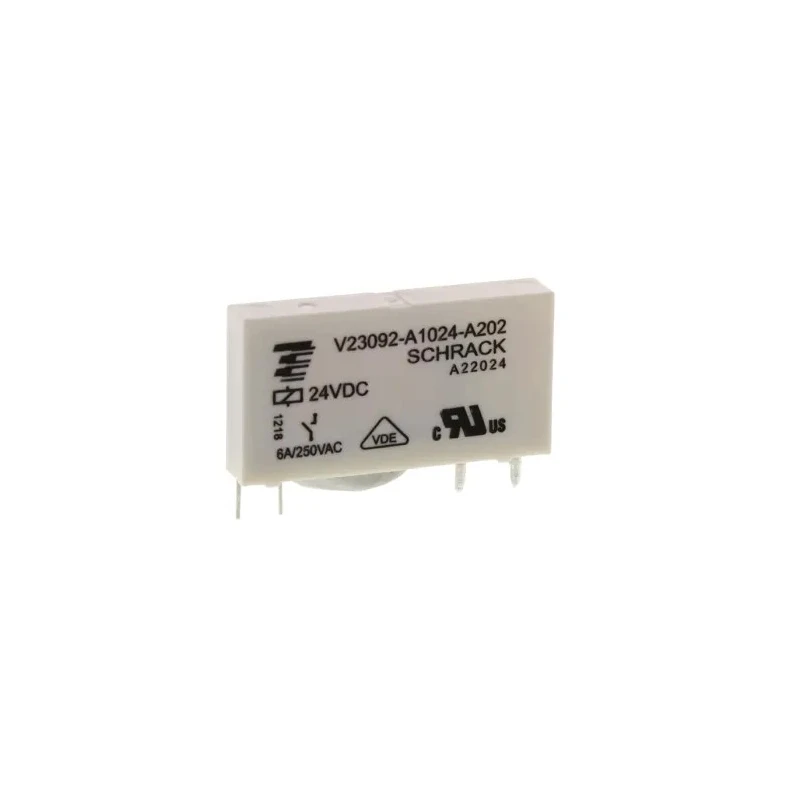

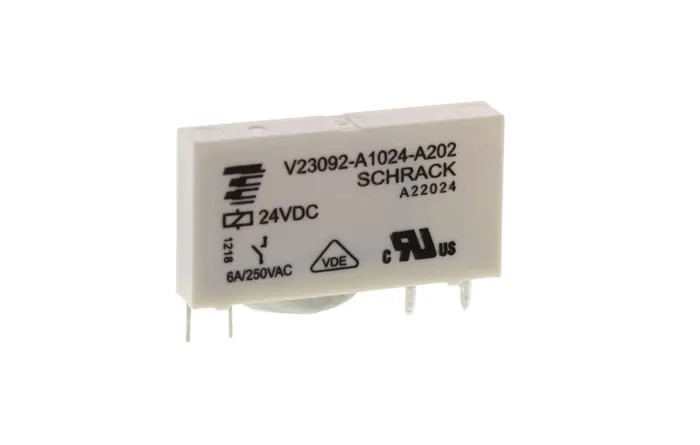

TE Connectivity PCB Power Relay 24V DC Coil 6A Switching Current SPST V23092A1024A202
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092A1024A202 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, REACH |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 170mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- Operates with a coil voltage of 24V DC for efficient control.
- Switching current rated at 6A suitable for moderate power loads.
- Compact PCB mount design with solder terminals for easy installation.
- Gold plated contact material ensures high conductivity and corrosion resistance.
- Designed for operating temperatures ranging from -40°C to 85°C.
- Features low coil power consumption of 170mW improving energy efficiency.
- Isolation coil to contact withstand voltage up to 4000Vac for electrical safety.
- Complies with VDE, UL, RoHS, and REACH standards assuring quality and environmental compliance.
Product Description
TE Connectivity V23092A1024A202 is a high-quality PCB Power Relay designed to meet rigorous industrial and electronic application requirements. Featuring a 24V DC coil operating voltage and 6A switching current, this Single Pole Single Throw (SPST) relay provides dependable electrical switching suitable for control and automation systems.
This relay's compact 5mm thickness and solder terminal PCB mount make it ideal for high-density circuit board layouts while maintaining robust performance. The gold plated contacts guarantee excellent electrical conductivity and durability, reducing signal loss and wear from electrical arcing.
With a coil power of only 170mW, the relay is energy efficient, and the operating temperature range from -40°C to +85°C ensures reliable operation in diverse environmental conditions. The device offers an isolation voltage of 4000Vac coil-to-contact, thus providing electrical safety in demanding applications.
TE Connectivity's SNR series slim relays embody a combination of compactness and high coil sensitivity, with an overall dimension of 28mm length, 15mm height, and 5mm width. Certified by VDE, UL, RoHS, and REACH, this product adheres to international safety and environmental standards. Manufactured in the Czech Republic, it ensures high manufacturing standards and reliability.
Operates at 24V DC coil voltage with 6A switching current for moderate power handling. Compact PCB mount with solder terminals suitable for space-constrained designs. Gold plated contacts for enhanced conductivity and corrosion resistance.
Wide operating temperature from -40°C to +85°C for versatile use environments. Low coil power consumption at 170mW for energy efficiency. Electrical isolation of 4000Vac between coil and contact for safety. Complies with VDE, UL, RoHS, and REACH standards ensuring product quality and environmental compliance.
Dimensions: 28mm length, 5mm width, 15mm height for high-density PCB integration. Manufactured in Czech Republic guaranteeing quality production.
This PCB power relay is widely used in industrial automation, electrical control systems, HVAC controls, telecommunications, and manufacturing equipment requiring reliable relay switching functionality.
Explore more from TE Connectivity and browse our Electronics & Electricals category for innovative relay solutions on EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 6A, making it suitable for moderate power loads.
It operates with a coil voltage of 24V DC.

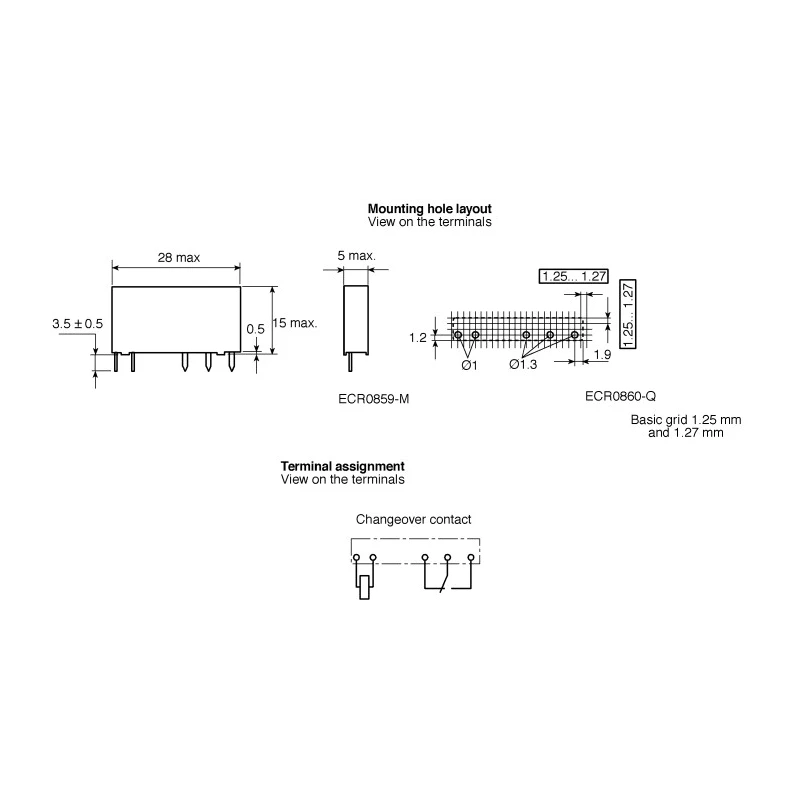

The relay has a length of 28mm, a height of 15mm, and a width of 5mm, making it compact for PCB mounting.
It can operate within a temperature range of -40°C to +85°C.
This unit features a Single Pole Single Throw (SPST) contact configuration.
It offers an isolation voltage of 4000Vac from coil to contact for electrical safety.
The coil power consumption is low at 170mW, contributing to its energy efficiency.
The contacts are made of gold plated material, which ensures high conductivity and corrosion resistance.
It is designed for PCB mounting with solder terminals, facilitating easy installation.
It complies with VDE, UL, RoHS, and REACH standards, ensuring quality and environmental compliance.
This relay is widely used in industrial automation, electrical control systems, HVAC controls, telecommunications, and manufacturing equipment.
It is manufactured in the Czech Republic, ensuring adherence to high manufacturing standards.
