TE Connectivity PCB Signal Relay 12V dc Coil 2A DPDT IM Series 10x6x5.65mm 140mW Coil Power 1-1462038-6

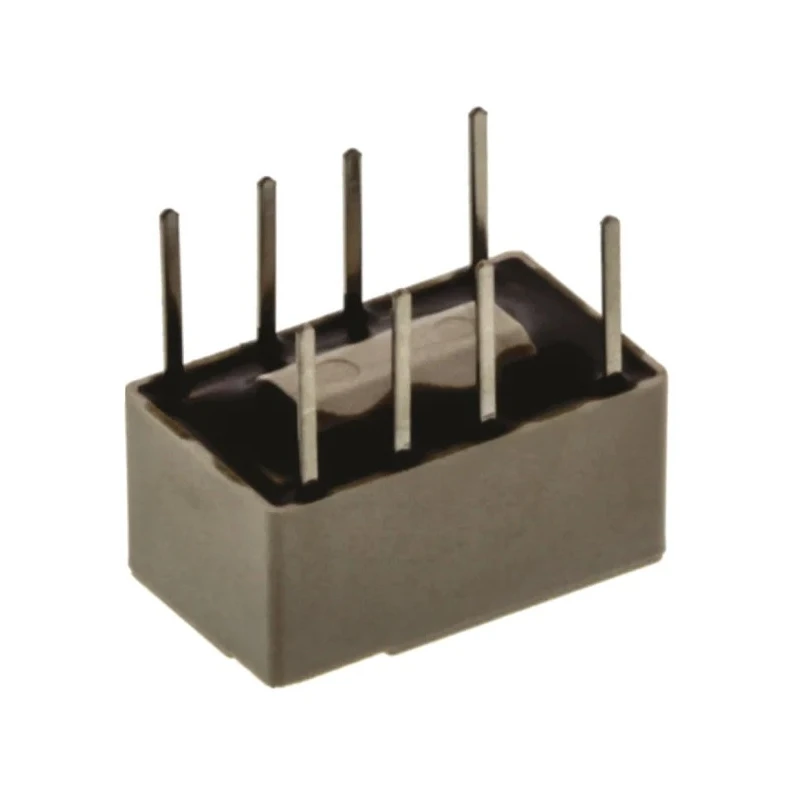

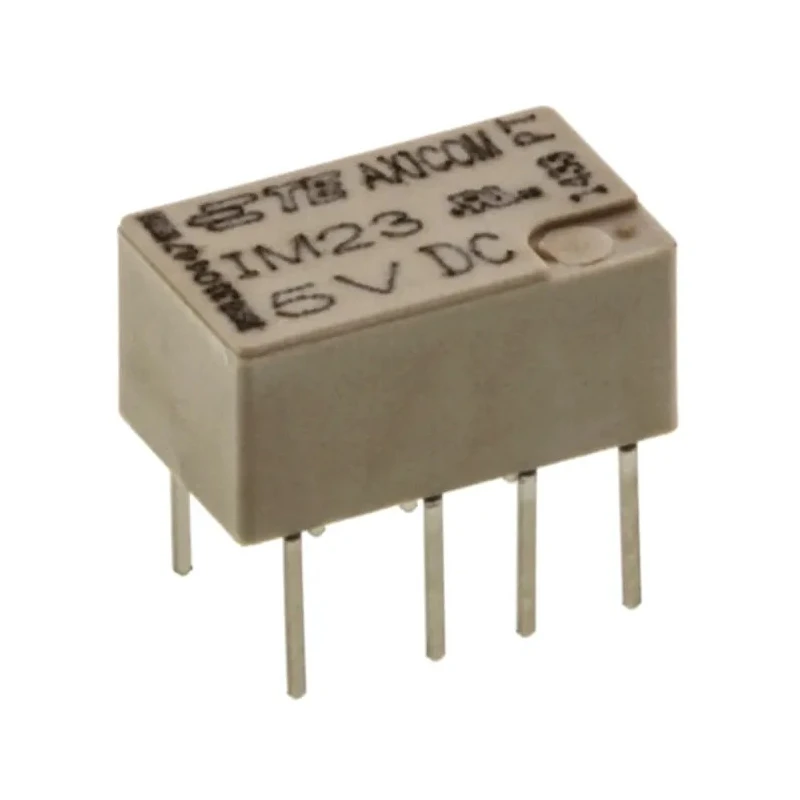

TE Connectivity 1-1462038-6 PCB Signal Relay 12V dc Coil 2A DPDT from the IM series is engineered for compact and efficient PCB mounting applications. This slimline relay has dimensions of 10mm length, 6mm width, and 5.65mm height, occupying a minimal board footprint of 60mm².

Featuring a coil voltage of 12V dc and low coil power consumption of 140mW, it minimizes power draw and heat. The relay employs gold plated bifurcated contacts ensuring high reliability and longevity. The device is hermetically sealed, meeting IP67 standards for dust and water protection, suitable for harsh industrial environments.

Withstanding mechanical shocks up to 300G during function and 500G survival rating, this relay is robust and reliable. It operates efficiently within a temperature range of -40°C to 85°C, making it adaptable to a variety of industrial and commercial settings.

The contact configuration is DPDT, with switching current rated at 2A. The relay supports switching voltages up to 250V ac and 220V dc, enabling its use in diverse signal relay applications.

Typical industrial use cases include telecommunication equipment, optical network terminals, office devices, test and measurement equipment, medical apparatus, and automotive systems, where precise and reliable signal switching is critical.

Coil voltage of 12V dc ensures compatibility with standard control circuits. Double Pole Double Throw (DPDT) contact configuration allows versatile switching. Low coil power consumption of 140mW reduces energy usage and heat generation.

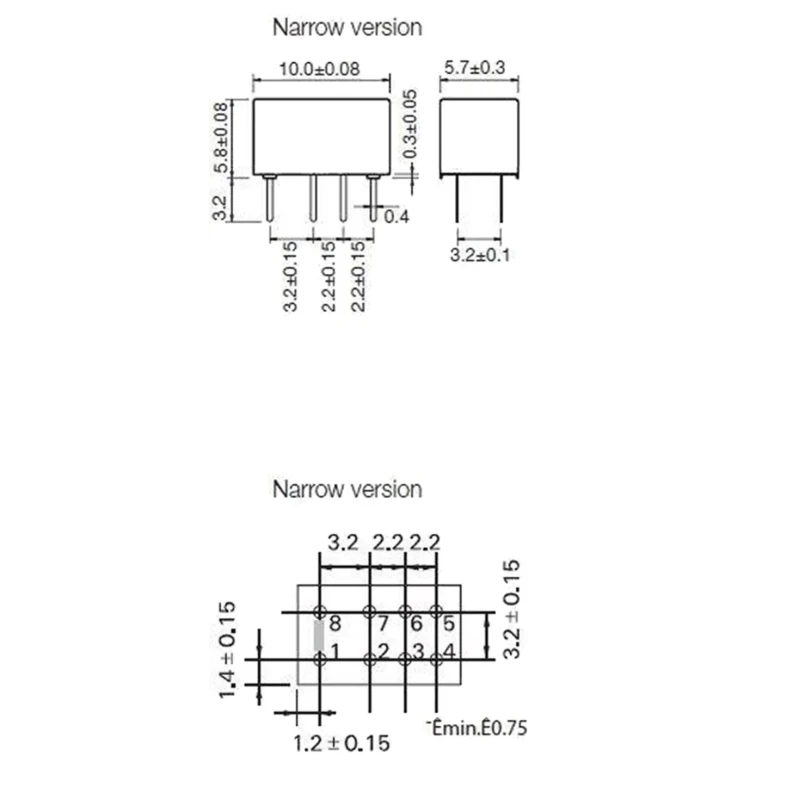

Compact dimensions of 10mm length, 6mm width, and 5.65mm height save PCB space. Gold plated bifurcated contacts provide reliable electrical connection and longevity. Hermetically sealed with IP67 rating for protection against dust and water.

High mechanical shock resistance up to 300G functional and 500G survival ensures durability. Wide operating temperature range from -40°C to 85°C suitable for various environments. Switching current rating of 2A and voltage ratings of 250V ac and 220V dc for robust performance.

Applications include telecommunications, optical networks, office equipment, test and measurement devices, medical instruments, and automotive usage.
