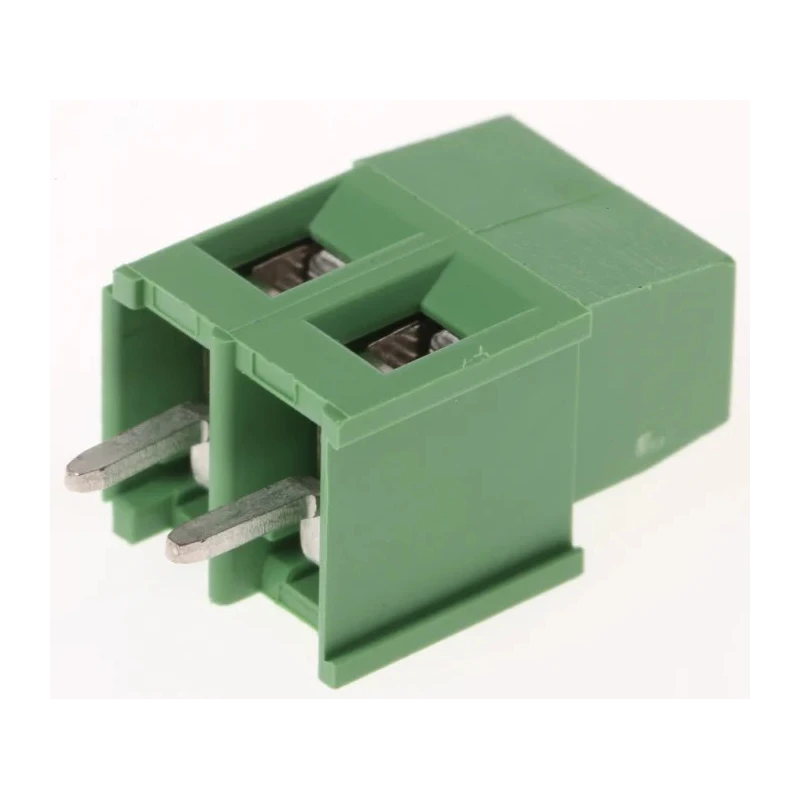

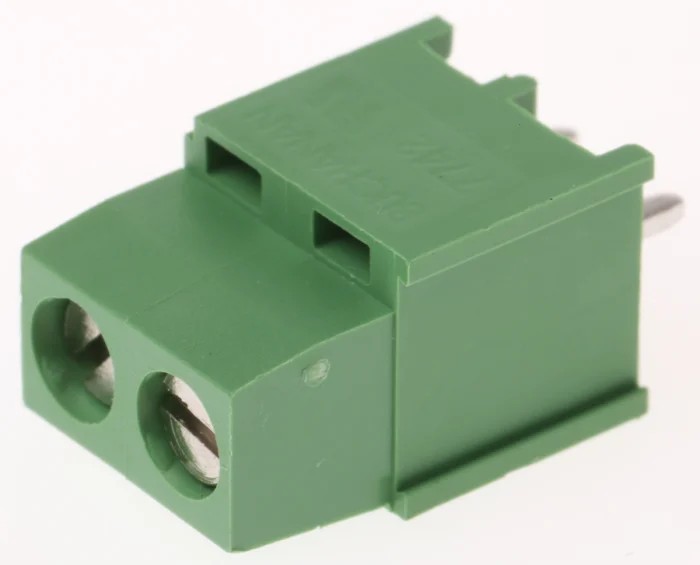

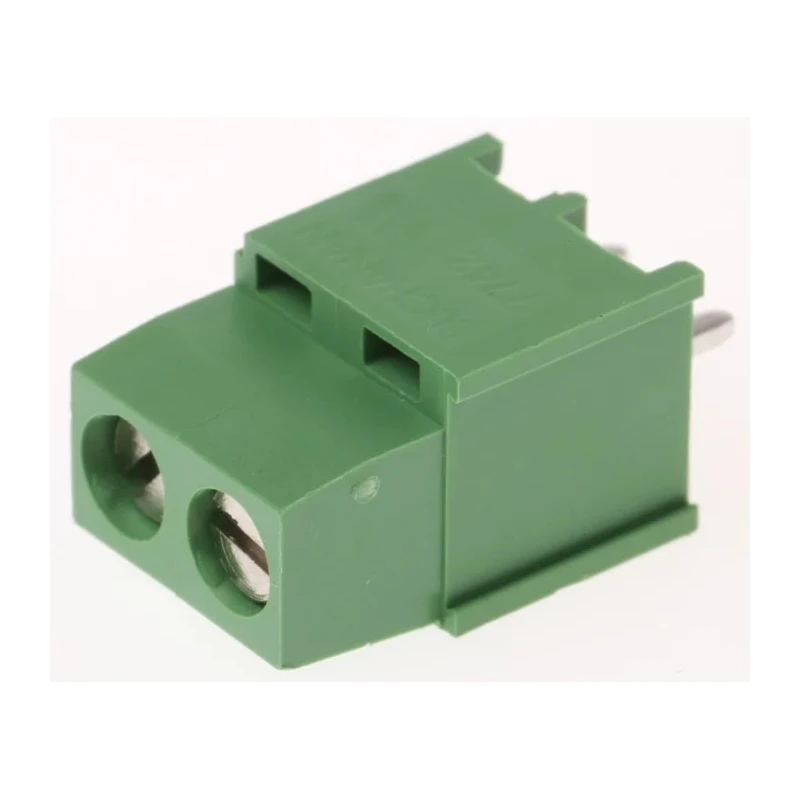

TE Connectivity Buchanan Series 2-Contact 5 mm Pitch 1 Row PCB Terminal Block 796683-2

TE Connectivity 796683-2 PCB Terminal Block is a high-quality pluggable terminal block from the Buchanan series, engineered for reliable and secure printed circuit board connections. Featuring a 2-contact configuration with a 5 mm pitch and single row arrangement, this component is tailored for use in electronic and electrical power connector systems.

The housing is molded from green polyamide 6.6 GF, providing excellent mechanical strength and resistance to environmental factors. Terminals utilize M3 screw clamps, facilitating easy and robust wire attachment while supporting wire sizes ranging from 30 AWG up to 12 AWG (0.05 mm² to 3 mm²), accommodating diverse wiring requirements.

This terminal block supports 17.5 amperes current carrying capacity and operates safely at voltages up to 300V AC, making it suitable for industrial, manufacturing, laboratory, and HVAC equipment where reliable power and signal connections are necessary.

Its straight orientation with vertical mounting enables efficient PCB layout and assembly, enhanced by the board interlock feature that improves mechanical stability. The integrated test facility offers convenient access for electrical testing and troubleshooting without detaching wires.

Compact and precise in size, the terminal block measures 15.2 mm in width, 9 mm in depth, and 10 mm in length, allowing space-efficient designs in electronic component assemblies. This product is manufactured under strict quality standards by TE Connectivity, a leader in electronic connectivity solutions.

Designed to accommodate wire sizes from 30 AWG to 12 AWG. Constructed with green polyamide housing material ensuring durability. Rated for 17.5A current and 300V AC voltage operation. Features M3 screw clamp terminals providing secure wire connection.

Straight orientation for vertical PCB mounting with board interlock feature. Compact dimensions: Width 15.2 mm, Depth 9 mm, Length 10 mm. Ideal for industrial, electronic, and power connector applications. Supports side wire entry and includes a test facility for maintenance.

This TE Connectivity Buchanan Series PCB Terminal Block is a dependable choice for electronics engineers and system designers requiring robust and reliable PCB connection solutions. Explore the full range of TE Connectivity Terminal Blocks and other power connector products at EnvMart to meet your industrial and commercial connectivity needs.
