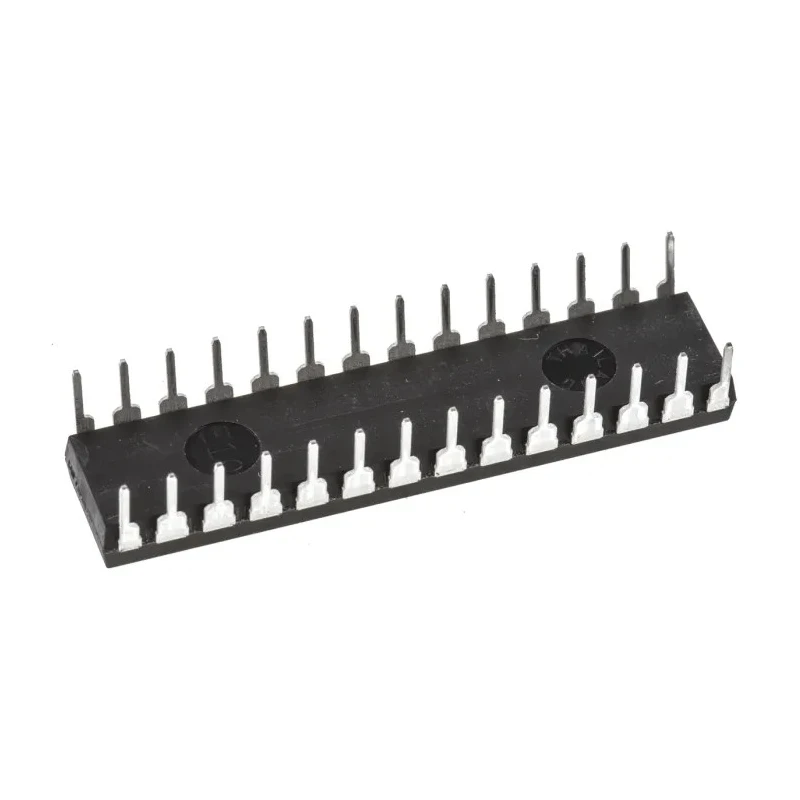

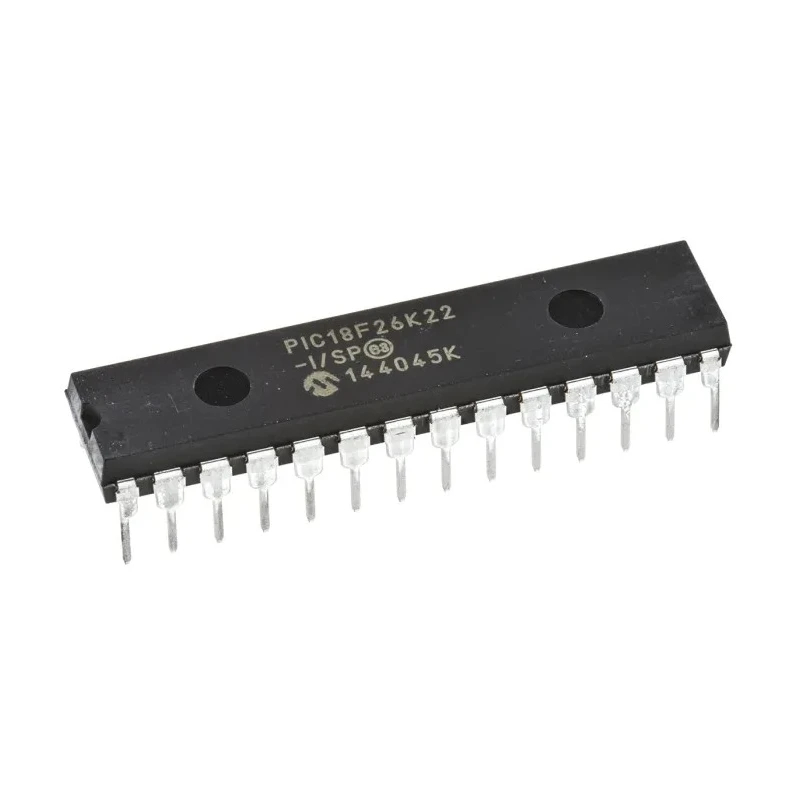

Microchip 8 bit PIC18F Microcontroller, 64 MHz Clock, 64kB FLASH, 1kB RAM, 28-Pin SPDIP PIC18F26K22-I/SP

Microchip PIC18F26K22-I/SP is an 8-bit microcontroller built on the PIC18F series platform, designed for versatile embedded applications. It features a high-performance 64 MHz maximum clock frequency and integrates 64kB of FLASH memory for storing complex firmware and user programs. Operating over a supply voltage range from 2.3V to 5.5V, this microcontroller is suitable for a wide array of power environments.

With 1kB RAM and 25 programmable digital I/O pins, it allows designers to manage multiple signals and control tasks efficiently. The device includes 7 timers, enabling precise timing and scheduling in embedded control systems. Additionally, the microcontroller is equipped with 17 10-bit analog-to-digital converters and 2 analog comparators, which are essential for sensor interfacing and analog signal processing in industrial and commercial applications.

Its RISC architecture ensures optimized instruction throughput and energy-efficient operation, making it suitable for performance-sensitive designs. The 28-pin SPDIP package supports through-hole mounting, providing easy integration in development boards and manufacturing processes. Operating reliably within an extended temperature range of -40°C to 85°C, it meets the standards for industrial-environment robustness. The maximum power dissipation of 1 watt further promotes energy efficiency and thermal management.

Built on PIC18F series architecture, offering reliable 8-bit microcontroller performance. Features 64kB of FLASH program memory and 1kB of RAM for versatile application support. Operates with a supply voltage range from 2.3V to 5.5V for flexible power configurations.

Equipped with 25 programmable input/output pins and 7 timers to control complex tasks. Includes 17 analog-to-digital converters (10 bit resolution) and 2 analog comparators for sensor interfacing. Supports a RISC instruction set architecture to optimize processing speed and efficiency.

Packaged in a 28-pin SPDIP through-hole mount suitable for prototyping and production use. Designed to operate reliably in temperature ranges from -40°C to 85°C for industrial-grade applications. Maximum power dissipation is 1 watt, supporting efficient energy management in embedded systems.

Ideal for industrial, electronic development, automotive electronics, and embedded control applications, this microcontroller enables designers to build flexible and efficient control systems. It integrates advanced analog and digital functionalities to support sensor interfacing and device management in demanding environments.
