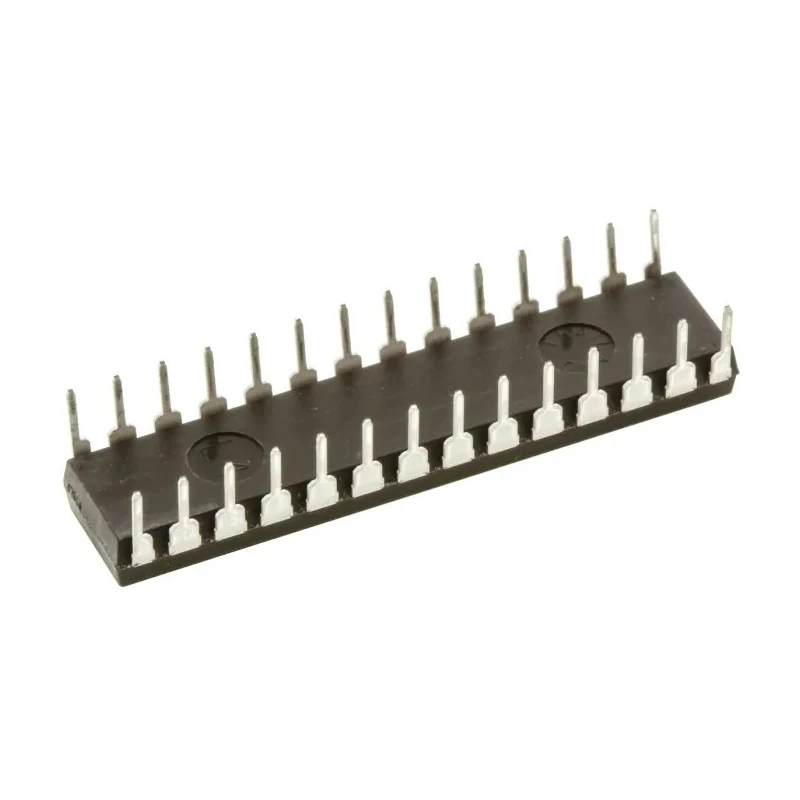

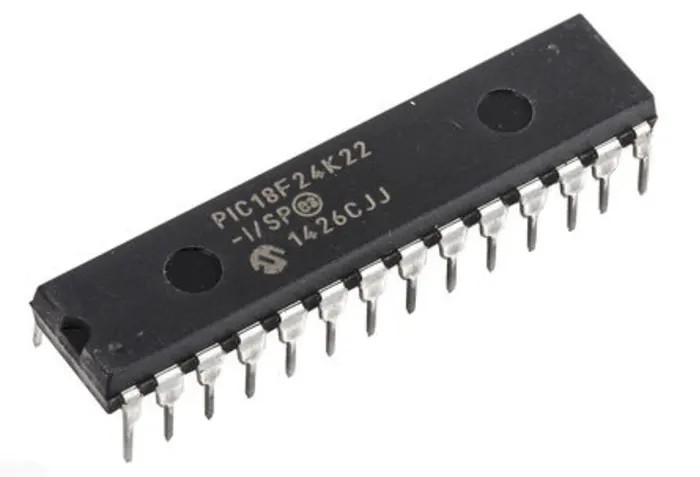

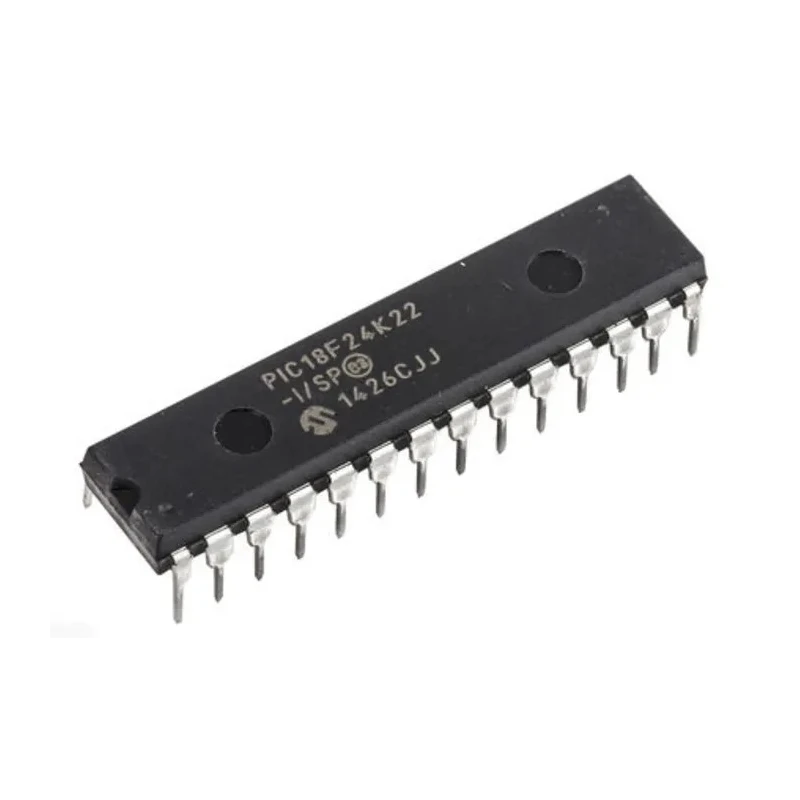

Microchip 8 bit PIC18F Microcontroller, 64 MHz, 16kB FLASH, 28-Pin SPDIP PIC18F24K22-I/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.56mm |
| Length | 34.8mm |
| Model | PIC18F24K22-I/SP |
| Width | 7.37mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 768bit |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 7 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at 64 MHz clock frequency with 8-bit PIC architecture.
- Features 16kB FLASH program memory and 768-bit RAM.
- Includes 25 programmable input/output pins for flexible interfacing.
- Offers 17 10-bit ADC channels and 2 analogue comparators for analog processing.
- Supports voltage range from 2.3V to 5.5V with 1W maximum power dissipation.
- Operates reliably in temperatures from -40°C to 85°C.
- Utilizes RISC instruction set for efficient execution.
- Equipped with 7 timers and 8-bit expanded memory size.
Product Description
Microchip PIC18F24K22-I/SP is a high-performance 8-bit PIC microcontroller featuring a 64 MHz maximum clock frequency and 16kB program FLASH memory. Packaged in a 28-Pin SPDIP through-hole format, it offers a compact solution for embedded and industrial electronic applications.
This microcontroller supports a wide operating voltage range from 2.3V to 5.5V and has a maximum power dissipation of 1 Watt, enabling efficient operation in various environments. It includes 768 bits of RAM and 25 programmable I/O pins to facilitate complex control tasks.
Equipped with 17 10-bit ADC channels and 2 analogue comparators, the PIC18F24K22-I/SP allows precise analog signal processing. It also features 7 timers and supports an expanded memory size of 8 bits for enhanced functionality.
Operating temperature range from -40°C to 85°C ensures robust performance in industrial and automotive contexts. The RISC architecture enhances execution efficiency, catering to diverse control and automation needs.
The microcontroller’s 28-Pin SPDIP package provides ease of manual soldering and prototyping. Its compact dimensions of 34.8 mm by 7.37 mm by 3.56 mm make it suitable for space-constrained designs. Applications include embedded systems development, industrial automation controls, consumer electronic devices, and prototyping educational platforms.
Program memory is of the FLASH type, offering reliable non-volatile storage with flexible updating. Through-hole mounting ensures durability in rugged environments.
This Microchip PIC18F24K22-I/SP microcontroller combines performance, flexibility, and reliable features in a trusted semiconductor brand, well-suited for developers and engineers across multiple industries.
Browse more Microcontrollers and embedded components at EnvMart to find compatible accessories, development tools, and application support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It features a program memory size of 16kB FLASH.
This microcontroller includes 25 programmable input/output pins for flexible interfacing.
The operating temperature range is from -40°C to 85°C.
It supports a voltage range from 2.3V to 5.5V.
This model is packaged in a 28-Pin SPDIP format, suitable for through-hole mounting.
It features 17 10-bit ADC channels for analog signal processing.
The maximum power dissipation is 1 Watt.
It has a RAM size of 768 bits.
This microcontroller includes 7 timers.
It utilizes a RISC instruction set for efficient execution.
The dimensions are 34.8 mm in length, 7.37 mm in width, and 3.56 mm in height.
