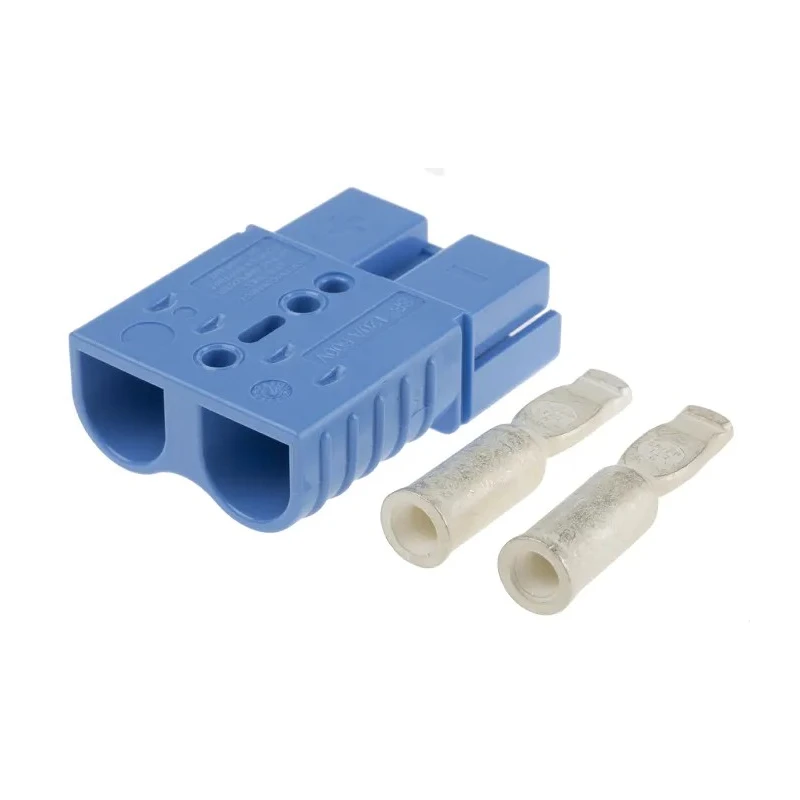

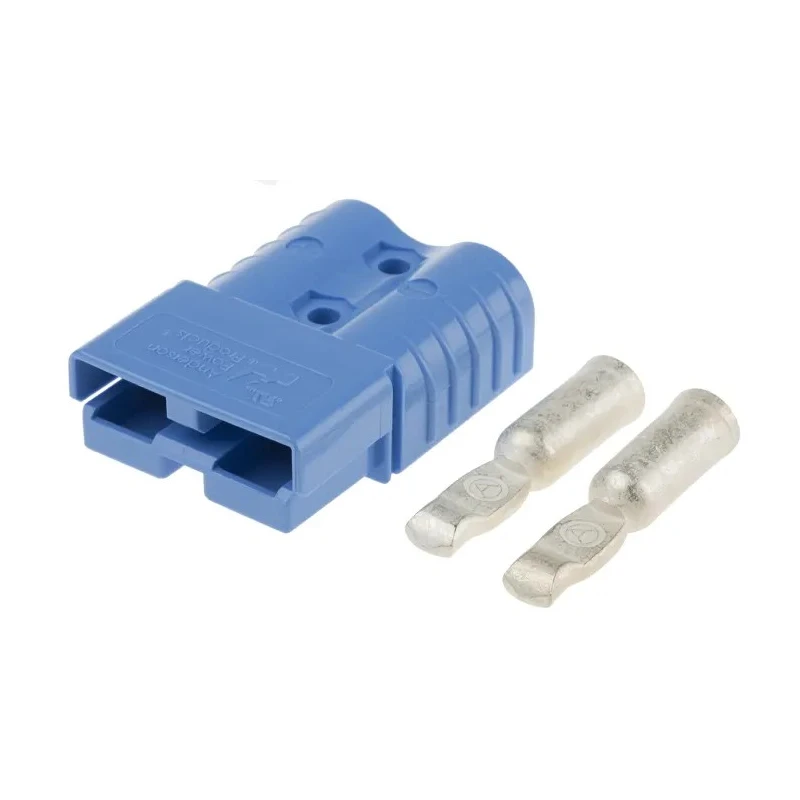

Anderson Power Products SB120 Series 2 Way Male Battery Connector, Straight Cable 600V 120A SB120
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 600V |
| Brand | Anderson Power Products |
| Orientation | Straight |
| Current | 120A |
| Model | SB120 |
| Mount Type | Cable |
| Housing Material | Polycarbonate |
| Contact Material | Copper Alloy |
| Series | SB120 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| Contact Plating | Silver |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- The connector features two contacts with a male gender configuration.
- Constructed with a durable polycarbonate housing for insulation and mechanical robustness.
- Contacts are made of copper alloy with silver plating ensuring excellent electrical conductivity and corrosion resistance.
- It supports wire sizes from #10 (5.3 mm²) to #1 (42.4 mm²) for flexible cable accommodation.
- Operating temperature range is from -20°C minimum to 105°C maximum ensuring suitability for varied environments.
- Termination is via soldering for secure and stable electrical connections.
- The connector is colour-coded and mechanically keyed to prevent incorrect mating and to identify different circuits easily.
- It has been re-tested under UL standards with an updated current rating of 240A; however, the housing still shows 120A until further notice.
Product Description
Anderson Power Products SB120 Series 2 Way Male Battery Connector SB120 is engineered for high performance in electrical power distribution applications, rated at 600 volts and 120 amperes. This straight cable mounting connector is suitable for industrial, electrical, and power supply environments where robust, reliable connections are required.
The connector features a polycarbonate housing that offers excellent mechanical strength and electrical insulation. The two male contacts made from copper alloy with silver plating provide superior electrical conductivity and resistance to corrosion, ensuring long service life.
The connector's design incorporates color-coded and mechanically keyed housings to prevent cross mating with incompatible voltages or circuits, enhancing system safety and ease of use. It supports wire sizes ranging from #10 (5.3 mm²) to #1 (42.4 mm²), making it versatile for many wire gauge requirements.
With an operating temperature range of -20°C to 105°C, the SB120 connector is suitable for various industrial, automotive, and manufacturing environments. The soldered termination type ensures durable and secure electrical connections.
Though originally rated for 120A, this series has been re-tested under UL standards and upgraded to support up to 240A. The packaging still indicates 120A until new datasheets are published, so please consult the latest technical documentation for updated ratings.
The connector accommodates two contacts with male gender connectors. Housing is made from high-quality polycarbonate for durability. Contacts consist of copper alloy with protective silver plating. Mechanical keying and color coding prevent electrical mismatching.
Temperature rating ensures performance in demanding environments. Solder termination for secure, reliable connections. Wire size compatibility supports #10 to #1 AWG. Re-tested UL rating allows continuous current handling up to 240A.
Manufactured in the United Kingdom, guaranteeing quality and compliance.
This connector is ideal for power distribution, battery connections, solar panel systems, electrical vehicles, industrial equipment, and other applications requiring safe, reliable, and high-current electrical connectors.
Explore more Anderson Power Products Battery Connectors and accessories on EnvMart for comprehensive power connectivity solutions.
