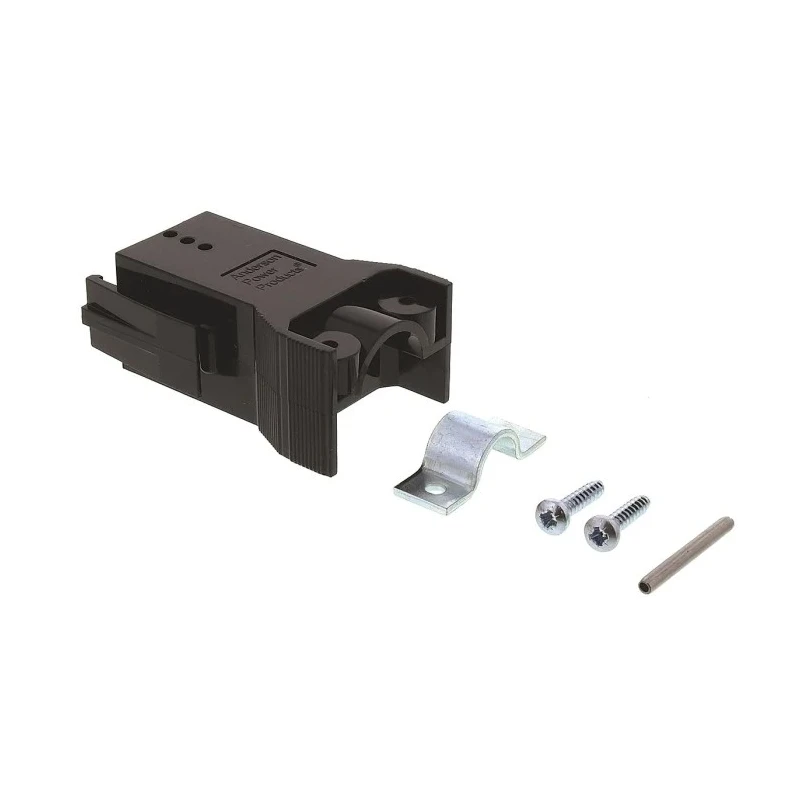

Anderson Power Products Powerpole Series 4 Way Male Battery Connector, Straight Panel Mount, 60V 20A 1460G1+115G1

Anderson Power Products 1460G1+115G1 Powerpole Series 4 Way Male Battery Connector is engineered for high-reliability electrical connections in industrial, commercial, and electronic applications. This connector is panel mountable with a straight orientation, making it ideal for secure assembly in power distribution systems.

The housing is made from robust polycarbonate material, providing excellent insulation and mechanical protection. It includes four copper alloy contacts plated with silver and tin to ensure superior conductivity and resistance to corrosion over extended use.

This connector supports electrical circuits up to 60 volts and a continuous current rating of 20 amps, designed with clamp-type termination for a reliable grip on cables. It operates effectively in temperature ranges from -20 degrees Celsius to a maximum of 105 degrees Celsius, suitable for harsh environments.

As part of the Powerpole series, this connector features standardized rectangular shells that allow the grouping of multiple 30 amp housings into one connector system, simplifying wiring layouts and improving modularity. Note that while individual contacts are rated for 30 amps, when grouped in these shells, the contact current rating derates to 20 amps to ensure safe operation.

Its male connector gender ensures compatibility with a wide range of female connectors common in power supply and battery management systems. Manufactured in the United States, this product meets industrial standards for quality and performance.

Durable polycarbonate housing ensures electrical insulation and mechanical strength. Copper alloy contacts plated with silver and tin resist corrosion and maintain conductivity. Panel mount type with straight orientation enables secure installation.

Clamp termination promotes strong and reliable cable connections. Operation temperature range from -20°C to 105°C supports various environmental conditions. Standardized Powerpole series design allows modular connector grouping.

Four contact design suitable for various power distribution applications. Current rating derates from 30A to 20A when housings are grouped, ensuring safe system performance.

This Anderson Power Products battery connector is ideal for use in industrial electronics, battery-powered equipment, power distribution systems, and renewable energy installations. Its reliable construction and standardized design make it a key component for engineers and technicians requiring dependable DC power connections.
