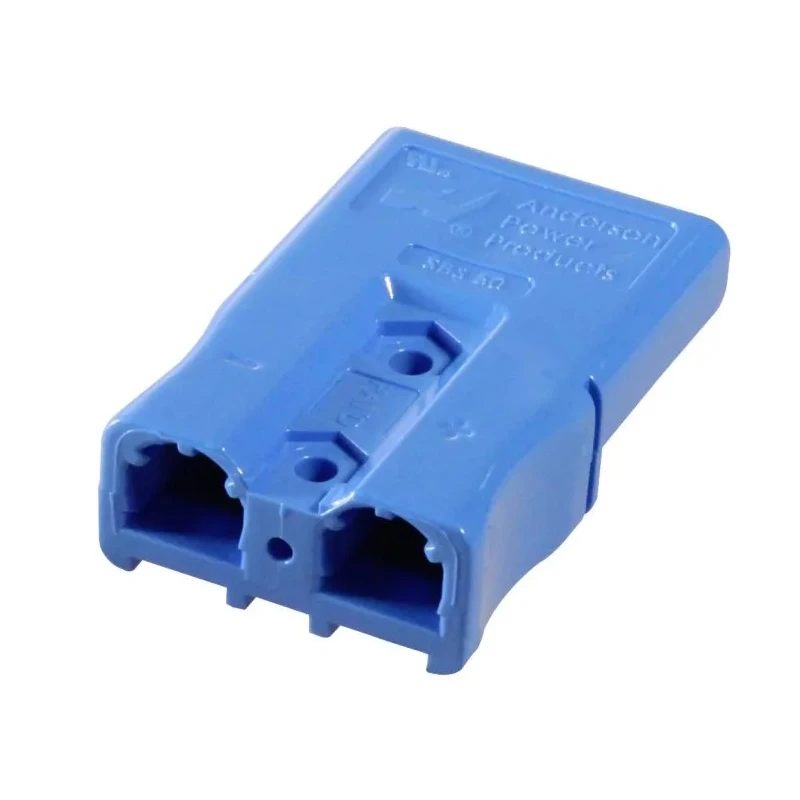

Anderson Power Products SBS Series 2 Way Male Battery Connector, Straight, Cable Mount, 600V, 110A SBS50BLU06

Anderson Power Products SBS50BLU06 is a 2 Way Male Battery Connector designed for high current DC power connections up to 110 amps at 600 volts. The connector features a straight cable mount type with an ergonomic polycarbonate housing that protects users from accidental contact with live circuits, critical for applications above 30 volts DC where safety is paramount.

The contact material is a copper alloy plated with silver, which ensures excellent electrical conductivity and resistance to corrosion. This connector supports solder termination, providing a reliable and robust mechanical and electrical connection.

Its operating temperature ranges from -20°C to 105°C, making it suitable for use in diverse industrial environments, including electronics manufacturing, power distribution, battery assembly, and renewable energy systems.

The SBS family connectors are known for their compact form factor while maintaining high power performance. The touch-safe design allows use in through-panel installations reducing the risk of live contact, enhancing operational safety.

The connector's design supports wire-to-wire configurations, facilitating multiple application requirements. The SBS series also includes options with auxiliary contacts for signal and grounding, serving industrial automation and control use cases.

Rated voltage of 600 volts suitable for high power DC applications. Current rating up to 110 amps for reliable power delivery. Constructed with polycarbonate housing for durability and insulation. Copper alloy contacts with silver plating provide excellent conductivity and corrosion resistance.

Mounting type is cable with a straight orientation for easy installation. Designed for safe wire-to-wire connections with protection against accidental contact with live circuits. Operating temperature range from -20°C to 105°C ensuring performance in harsh environments.

Solder termination type ensures secure electrical connection. Compact SBS series offers a touch-safe interface complying with safety requirements.

This connector is ideal for use in electronic equipment, power distribution systems, industrial machinery, and battery-powered devices where reliable, safe, and compact power connections are essential.
