AAVID THERMALLOY Heatsink for Printers, Medical Electronics, Semiconductor Integrated Circuits, Power Tools, Test 0S507/50/B

AAVID THERMALLOY 0S507/50/B is a specialized heatsink engineered for applications in printers, medical electronics, semiconductor integrated circuits, power tools, test equipment, video cameras, satellite systems, telephone networks, discrete devices, disk drives, modems, power semiconductors, SMPS, UPS, Hexfet MOSFETs, and lighting ballasts.

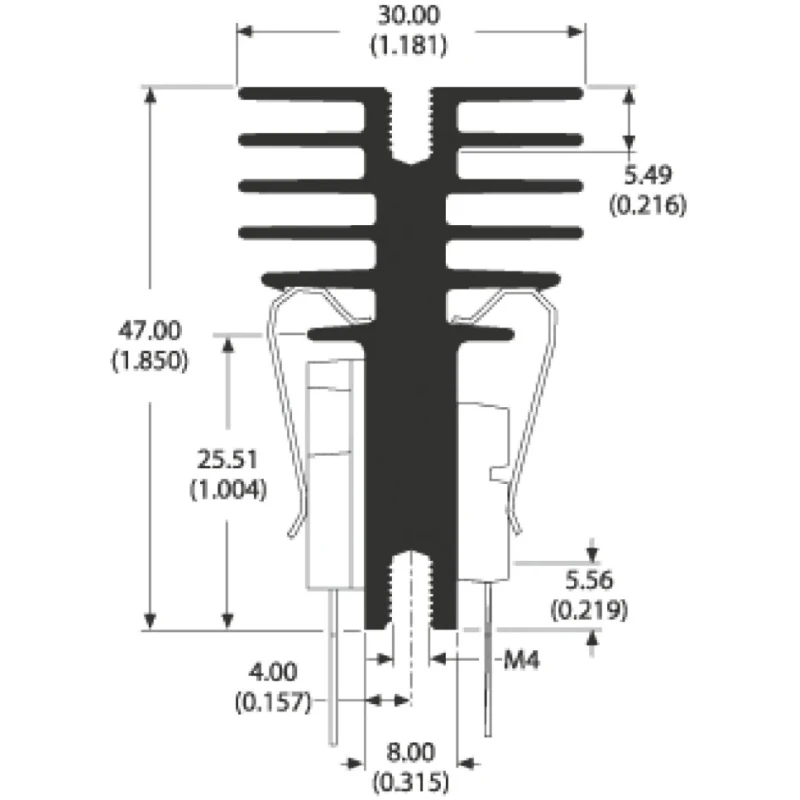

Its compact dimensions of 50 mm length, 30 mm width, and 47.2 mm height facilitate efficient thermal management in limited spaces. The clip fastening mechanism enables rapid and secure attachment, improving assembly efficiency and reliability. The heatsink exhibits a thermal resistance of 6.49 K/W, providing effective heat dissipation to maintain device performance and longevity.

Constructed with special spring steel that is nickel plated, and finished with a black anodised coating, this heatsink offers enhanced durability and resistance to environmental factors. It complies with the Max Clip System™ design, offering innovative clip mounting technology that replaces traditional rivets and screws, delivering economic and manufacturing benefits along with improved thermal interface material performance.

Compatibility includes a wide range of semiconductor package types such as TO-247, TO-247J, Max247, Max220, TO-0218, and TO-220, making it a versatile component for various electronics and power semiconductor cooling needs.

The design and functionality of this heatsink are protected under U.S. Patent number 5,991,151, guaranteeing a unique approach to semiconductor mounting and thermal management. Features a length of 50 mm, width of 30 mm, and height of 47.2 mm for compact and efficient cooling.

Utilizes a clip fastening mechanism for secure and easy installation. Offers a thermal resistance of 6.49 K/W, ensuring effective heat dissipation. Finished with black anodised coating for enhanced durability and corrosion resistance.

Compatible with multiple package types including TO-247, TO-247J, Max247, Max220, TO-0218, and TO-220. Manufactured from special spring steel with a nickel-plated finish to improve thermal performance. Incorporates the Max Clip System™ OS507 profile clip mounting technology for high reliability and simplified assembly.

Protected by U.S. Patent 5,991,151, ensuring innovative thermal management design.

This heatsink is ideal for industrial, manufacturing, medical electronics, and laboratory applications where reliable thermal management is critical. It supports the efficient operation of power semiconductors, integrated circuits, and power tools by preventing overheating and ensuring system stability.
