ABB 4-Pole Screw Mount Switch Disconnector IP65, Yellow Red Handle, 0A OT Series

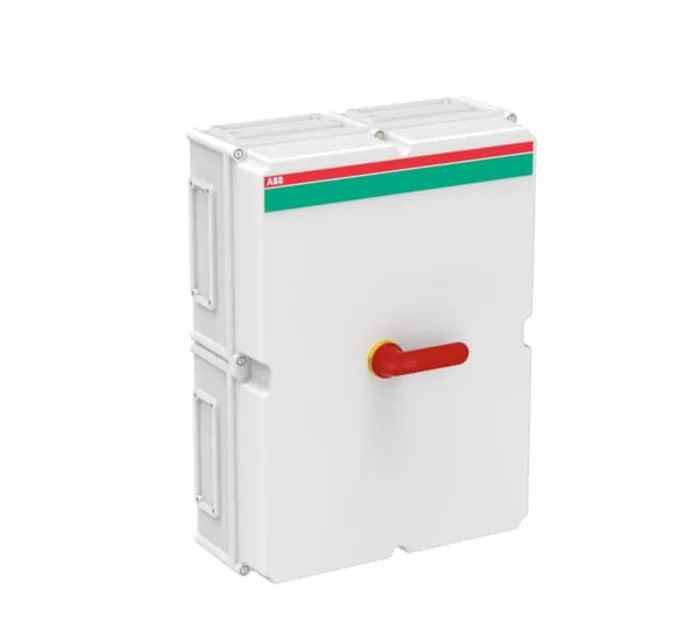

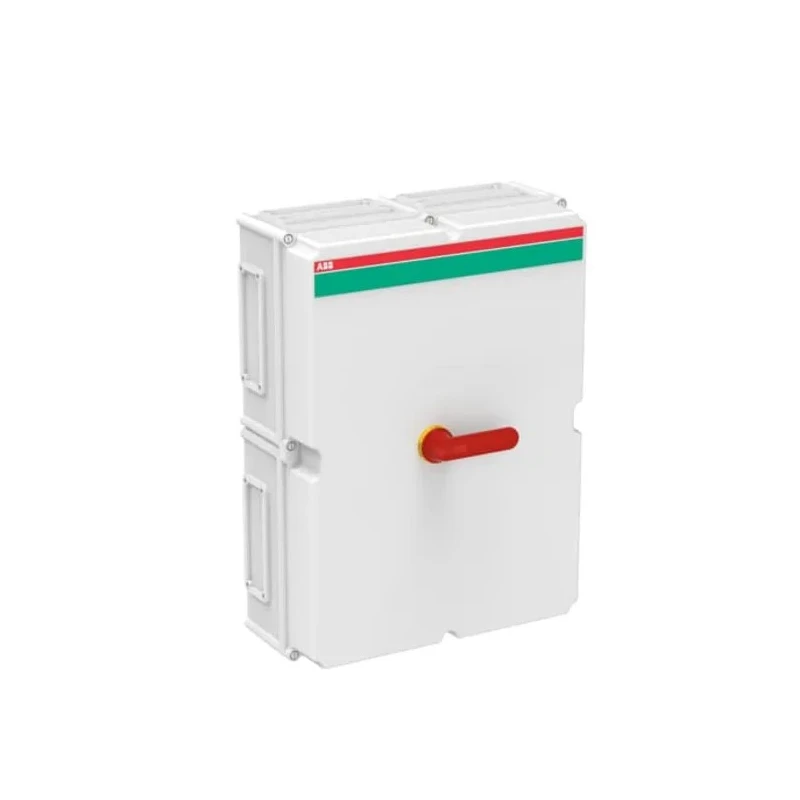

ABB 1SCA022834R1000 OT630KFCC4BA 4-pole screw mount switch disconnector from the OT series featuring a durable rigid glass reinforced polycarbonate enclosure with UV protection and an IP65 rating for protection against dust and water jets. This makes the switch disconnector ideal for both indoor and outdoor industrial, electrical automation, and manufacturing applications.

The switch disconnector supports four poles with a rated operational voltage of 1000V and a switching current rated at 0A for safe isolation. It incorporates a screw mount type installation and screw clamp terminals ensuring secure electrical connections.

It includes a yellow and red pad lockable handle designed to accommodate up to three padlocks to enhance operational safety. The cover comes with interlocking features that prevent unintended access but can be bypassed if required. The device also supports mounting of a maximum of 2 auxiliary contacts (2NO/2NC) for control signaling purposes.

Cable entry points are knock-out types suitable for II-flanges, allowing cables to be inserted from both top and bottom for flexible installation. Neutral (N) and protective earth (PE) terminals are included.

Physical dimensions of the enclosure are 560mm width, 250mm length, and 250mm depth, providing a compact but robust form factor. This product complies with RoHS directives ensuring environmental and operational safety compliance, though it does not have hazardous area certification.

Manufactured in Finland, the ABB switch disconnector is engineered for reliable and safe electrical isolation in industrial power distribution, control panels, and automation systems.

Features a rigid glass reinforced polycarbonate enclosure protected against low-pressure water jets. Equipped with pad lockable handle in yellow and red colors for safety. Includes screw clamp terminals and supports up to two auxiliary contacts (2NO/2NC).

Rated operational voltage of 1000V suitable for industrial power isolation. Built for installation with cable entries accessible from top and bottom. Handles three padlocks and has an interlocked cover that can be overridden if necessary.

Dimensions measured as 560mm width, 250mm length, and 250mm depth. Meets RoHS standards and carries no hazardous area certification. Suitable for electrical isolation in industrial automation and electrical systems. Manufactured in Finland ensuring high build quality and reliability.
