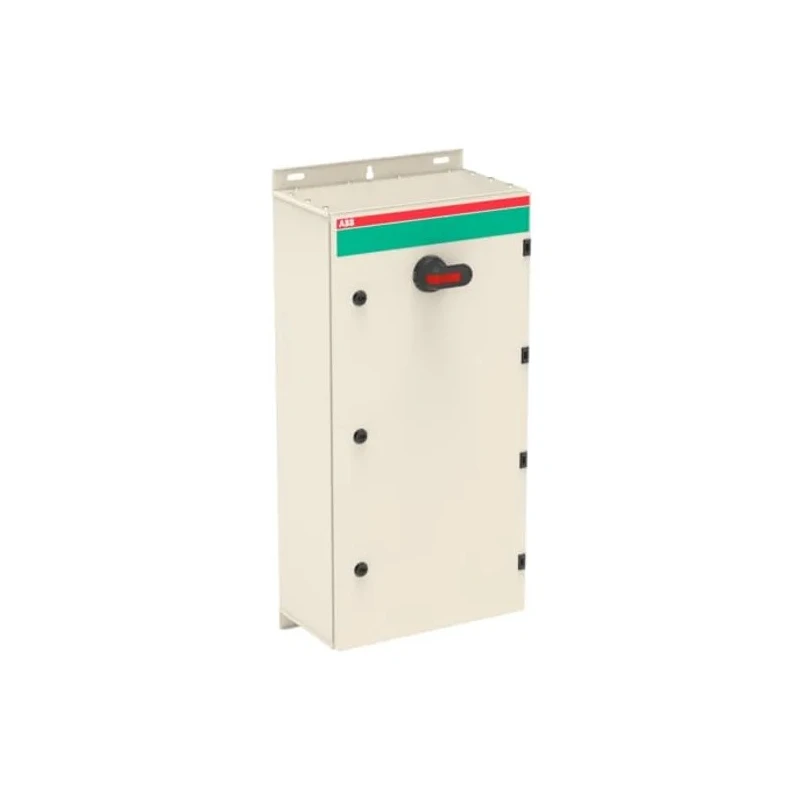

ABB 3-Pole Switch Disconnector IP65, 315A, 160 kW, Black Handle, Screw Clamp Terminal

Free Delivery in India | Lowest Global Shipping Charges

ABB 3-Pole Switch Disconnector IP65, 315A, 160 kW, Black Handle, Screw Clamp Terminal



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	800mm
Model	IP65
Depth	230mm
IP Rating	IP65
Width	400mm
Series	OT
Minimum Operating Temperature	0°C
Switching Current	315A
Terminal type	Screw Clamp
Handle Colour	Black
Number of Poles	3
Standards/Approvals	IEC 60947-1
Switching AC Voltage	690V ac
Switching Power	160kW

Key Features

Equipped with a black handle for easy operation.
Enclosed in a galvanised steel enclosure with polyester coating for durability and outdoor use.
Features a gas pressure relief function to protect users during internal arcs.
Padlock compatible for three padlocks, ensuring enhanced safety.
Auxiliary contacts are available with a maximum of 2NO and 2NC contacts.
Suitable for switching voltages up to 690V AC and operational voltage up to 1000V.
Constructed for robust use with IEC 60947-1 standard compliance.
Includes screw clamp terminal type for secure electrical connections.

Product Description

ABB 1SCA022513R8510 3-Pole Switch Disconnector IP65, rated for 315A switching current and 160 kW switching power, is a robust electrical isolation device designed for use in industrial, commercial, and utility applications.

The device is enclosed in a galvanised steel enclosure with a protective polyester coating, offering excellent resistance to UV light and ingress of dust and water, certified with an IP65 rating making it suitable for outdoor installations.

For enhanced safety, the enclosure includes a gas pressure relief feature that protects users in the event of internal arcing. The door is earthed via hinges, and the enclosure supports multiple cable entry configurations including blank, ring-flange, or C-flange types, adaptable for various wiring setups including top/bottom or bottom/bottom cable entries.

The switch disconnector features a black handle that can be padlocked for up to three padlocks, facilitating secure lockout/tagout procedures. Auxiliary contacts are included, allowing up to 2 normally open (NO) and 2 normally closed (NC) contacts, useful for signaling and control circuits.

It has a minimum operating temperature of 0°C and is compliant with IEC 60947-1 standards, ensuring reliable electrical isolation performance. The screw clamp terminal type ensures secure and reliable conductor connections.

Galvanised steel enclosure with polyester coating for durability. Gas pressure relief function to protect against internal arcs. Padlock compatible with up to three padlocks for safety. Auxiliary contacts with 2 NO and 2 NC maximum.

IP65 ingress protection suitable for outdoor use. Complies with IEC 60947-1 standard. Screw clamp terminals for secure connections. Dimensions: 800mm (L) x 400mm (W) x 230mm (D).

This switch disconnector is designed for electrical safety isolation in industrial automation, electrical power distribution, and manufacturing environments. Its high current and power ratings make it suitable for heavy-duty applications requiring robust switching and isolation functions.

Explore more quality industrial electrical components in the Switch Disconnector category at EnvMart for your project needs.
