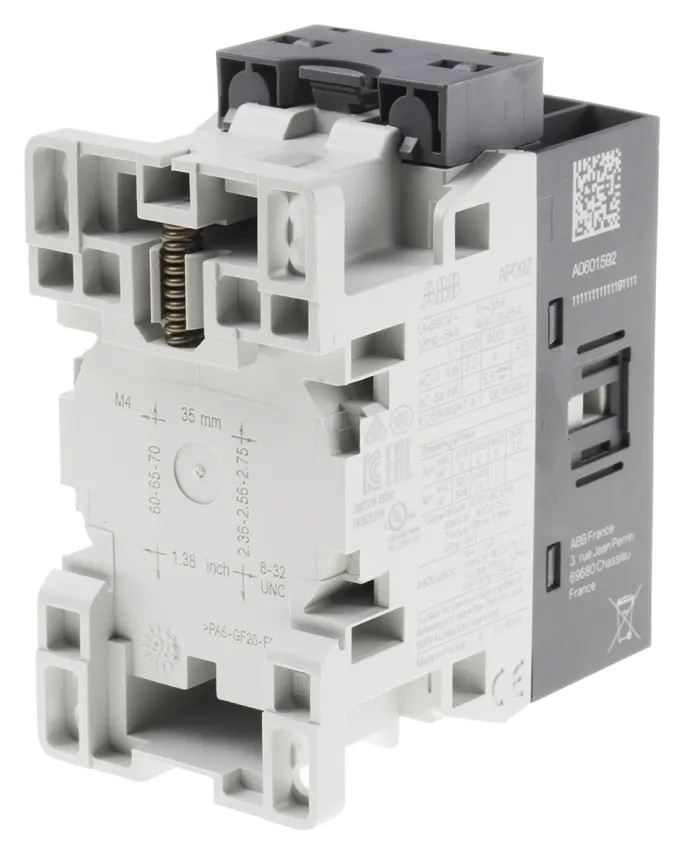

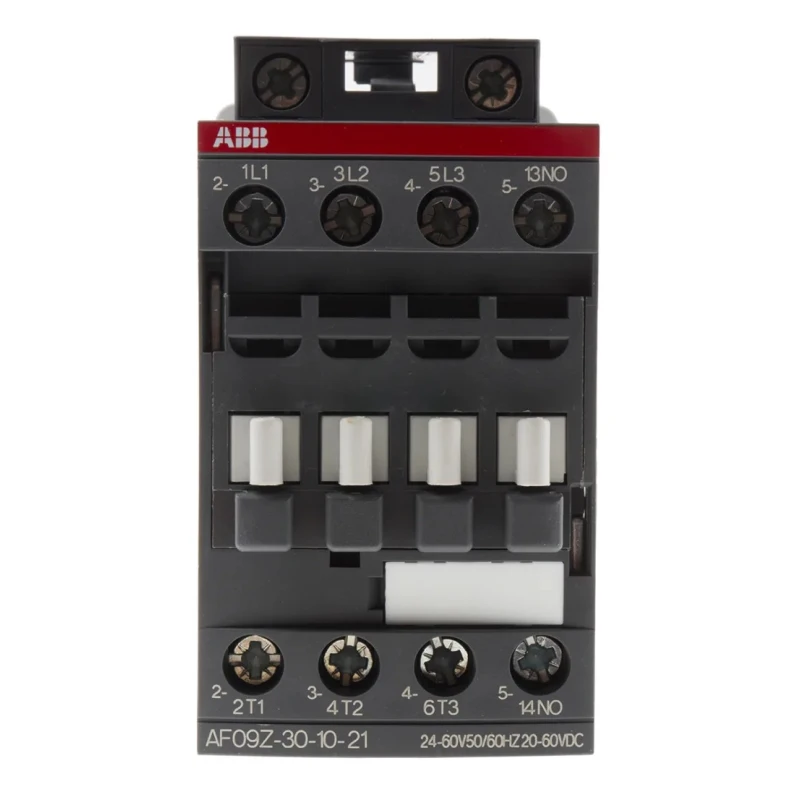

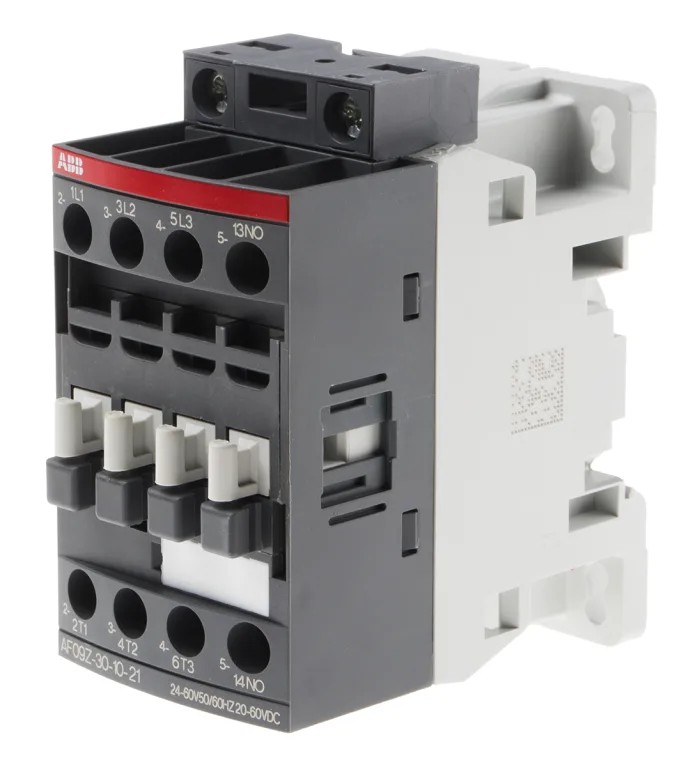

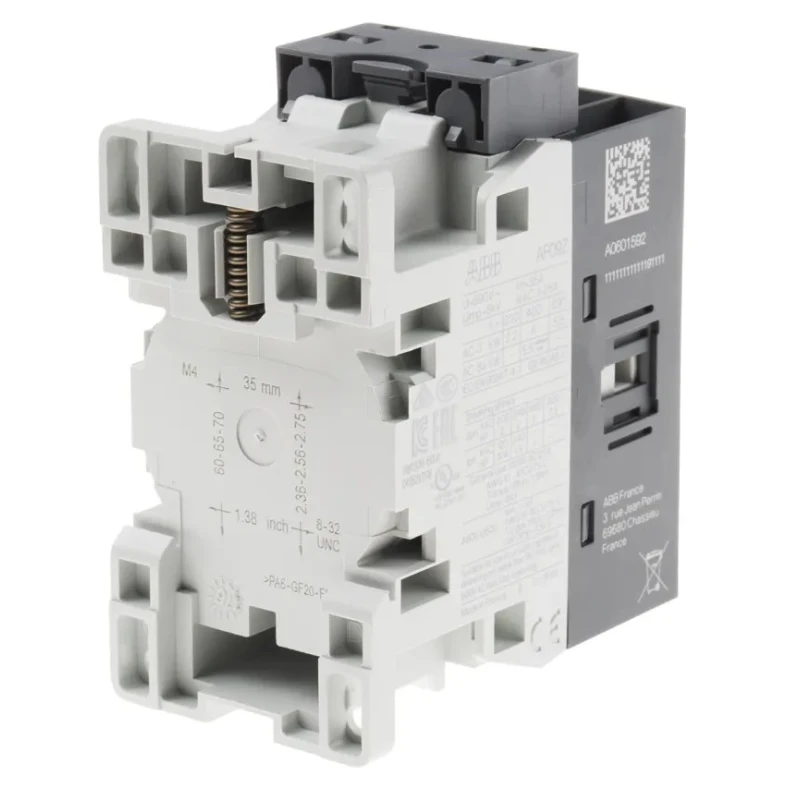

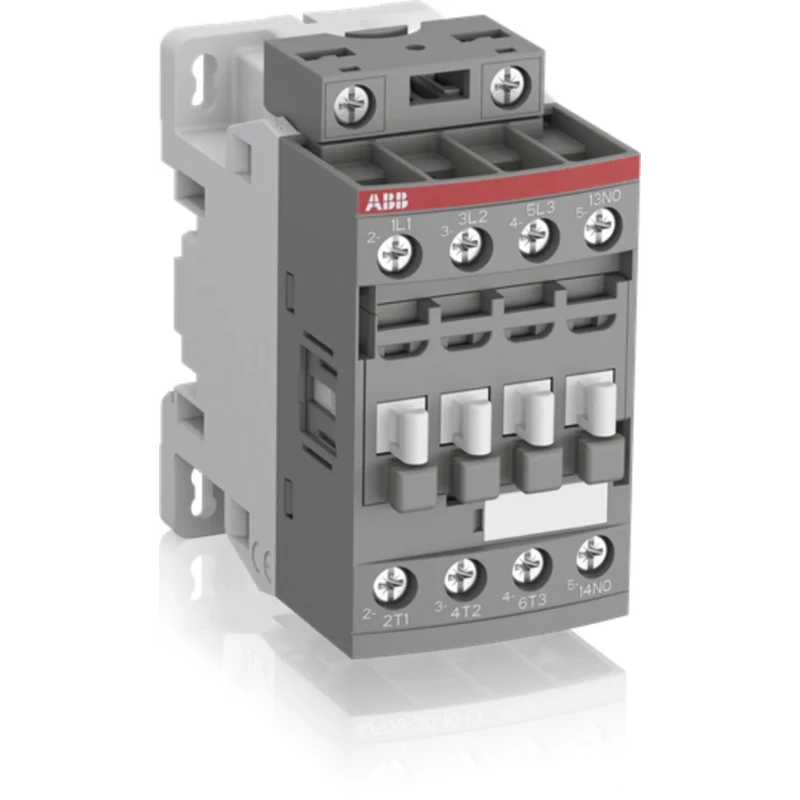

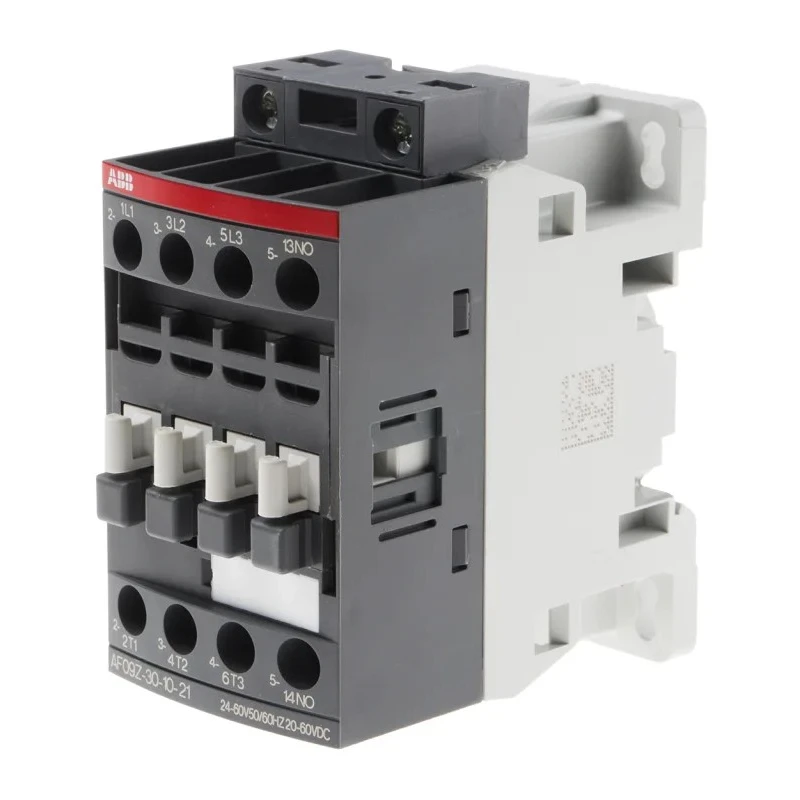

ABB Motor Control Contactor with 60V DC Coil, 3 Poles, 7 A Contact Current, 4 kW Power Rating, 690V AC Contact Voltage AF09



Category Contactor Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF09
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF09
Power Rating	4kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	60V dc
Normal State Configuration	3 NO
Contact Current	7A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NO
Operational Current Ie	25A
Control Circuit Voltage Uc	60V dc
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

Supports a power rating of 4 kW and contact voltage of 690V AC.
Equipped with screw terminals ensuring secure connections resistant to vibration.
Operates reliably in extreme conditions ranging from -40°C to 70°C.
Designed for fast switching operations up to 1200 cycles per hour.
Features a compact design with dimensions 80mm length, 45mm width, and 77mm depth for easy DIN rail mounting.
Includes 3 Normally Open (NO) main contacts and 1 Normally Open auxiliary contact for versatile motor control applications.
Complies with IEC 60947-4-1 standards ensuring safety and quality.
Manufactured in Finland maintaining robust build and performance consistency.

Product Description

ABB AF09 motor control contactor with a 60V DC coil provides dependable switching capabilities for motors and heavy-duty electrical equipment. The 3-pole design handles contact currents up to 7 A and is rated for power loads of 4 kW at 690V AC, making it suitable for a wide range of industrial motor control applications.

This contactor is designed for durability, with a robust build that ensures reliable operation across a broad ambient temperature range of -40°C to +70°C. Its screw-type terminals provide solid electrical connections that resist loosening from vibration, enhancing safety and stability in demanding environments.

Equipped with three Normally Open (NO) contacts plus an additional Normally Open auxiliary contact, the AF09 model supports complex control circuits including both single-phase and three-phase systems. It also features built-in surge protections that safeguard connected equipment from harmful electrical surges.

The device mounts easily on a DIN rail, facilitating quick installation and maintenance in control cabinets. Dimensions of 80mm in length, 45mm width, and 77mm depth ensure it occupies minimal space without compromising functionality or accessibility.

Ideal for applications in food production facilities, lighting controls, construction industry setups, and other commercial or industrial environments requiring frequent, rapid contactor switching - capable of up to 1,200 operations per hour.

Supports motor control functions effectively in demanding conditions. Compact and reliable with industry-standard compliance (IEC 60947-4-1). Fast response time and surge protection ensure longevity and performance. Secure screw terminals and auxiliary contacts enhance usability.

Designed and manufactured in Finland for high quality production. Explore ABB Contactors and automation solutions in EnvMart's extensive portfolio for efficient and safe industrial control gear products.
