RS PRO Aluminium Radial Can Capacitor 470 nF 50V DC Through Hole Radial Lead 711-1403

Free Delivery in India | Lowest Global Shipping Charges

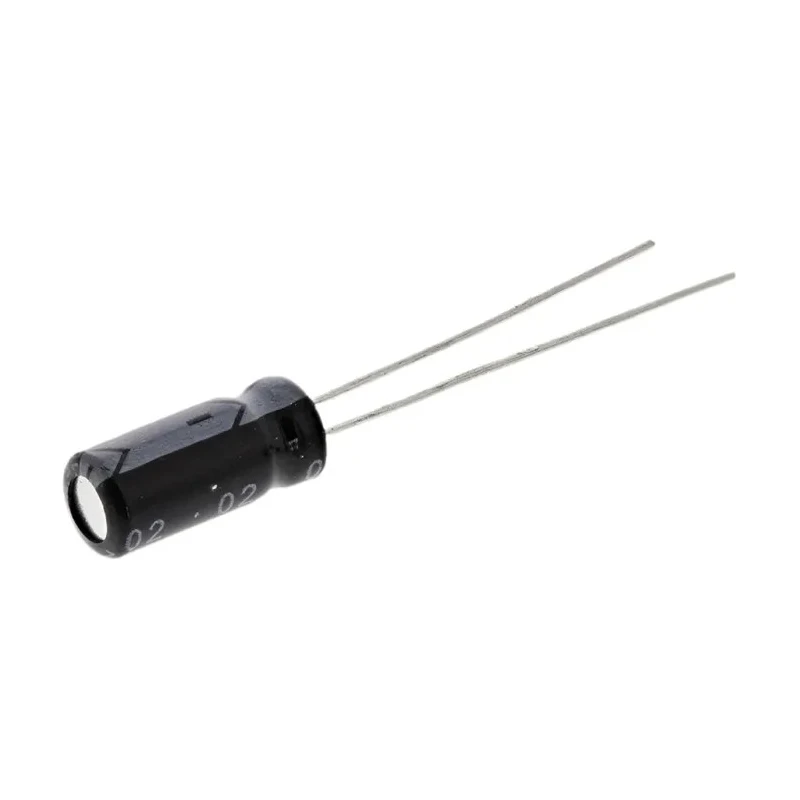

RS PRO Aluminium Radial Can Capacitor 470 nF 50V DC Through Hole Radial Lead 711-1403

Name: RS PRO Aluminium Radial Can Capacitor 470 nF 50V DC Through Hole Radial Lead 711-1403
Brand: RS PRO
SKU: 218264
Price: 0.16 USD
Availability: InStock



Category Aluminium Capacitors Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	50V dc
Diameter	5mm
Brand	RS PRO
Height	11mm
Length	11mm
Model	711-1403
Mount Type	Through Hole
Construction	Radial Can
Series	RS PRO
Termination Type	Radial Lead
Maximum Operating Temperature	105°C
Tolerance	±20 %
Lifetime	1000 h
Capacitance	470nF
Minimum Operating Temperature	-40°C
Polarity	Polar
Dissipation Factor	10%
Leakage Current	3μA
Pin Count	2
Lead Pitch	2mm
Capacitor Ripple Current	8mA

Key Features

Rated capacitance is 470 nanofarads with ±20% tolerance for accuracy.
Operates safely at a voltage of 50V DC in polar configuration.
Designed with radial can construction and through hole radial lead mounting for secure installation.
Compact physical dimensions include 11 mm height, 11 mm length, and 5 mm diameter.
Suitable for operation between -40°C to 105°C with a rated lifetime of 1000 hours.
Features a capacitor ripple current rating of 8 mA and leakage current of 3 µA for stable operation.
Lead pitch is 2 mm with a pin count of 2 ensuring compatibility with circuit boards.
Capacitor dissipation factor is 10% aiding energy efficiency.

Product Description

RS PRO model 711-1403 is a high-quality aluminium radial can capacitor rated at 470 nF capacitance and designed for 50V DC applications. It features a through hole radial lead construction that allows robust and reliable mounting in various electronic circuits.

This capacitor is polar and built with safety vent construction suitable for use in communication equipment and switching power supplies. Its operating temperature range from -40°C to 105°C and a lifetime rating of 1000 hours ensure long-term stability and durability in demanding environments.

The physical dimensions measure 11 mm in height and length with a 5 mm diameter, making it suitable for compact PCB layouts. The component supports a ripple current of up to 8 mA and has a low leakage current of 3 µA, providing efficient performance with minimal energy loss.

The lead pitch of 2 mm and two pins enable easy through hole mounting. With a capacitance tolerance of ±20% and a dissipation factor of 10%, this capacitor is engineered for general-purpose electronic applications requiring reliable filtering, timing, and energy storage.

Manufactured in Taiwan, Province Of China, the RS PRO 711-1403 capacitor meets standard industry requirements without automotive certification. It is intended for professional use in electronics manufacturing, laboratory testing, and industrial control systems.

Rated capacitance of 470 nF with ±20% tolerance for precise operation. Voltage rating of 50V DC suitable for various low-voltage circuits. Radial can construction and through hole mount type ensure secure installation. Compact size: 11 mm height, 11 mm length, 5 mm diameter.

Wide operating temperature range from -40°C to 105°C for harsh environments. Supports 8 mA ripple current and low leakage current of 3 µA. Long lifetime of 1000 hours under rated conditions. Manufactured to RS PRO quality standards in Taiwan.

This RS PRO aluminium capacitor is ideal for industrial electronics, power supplies, telecommunications equipment, and other applications needing reliable, high-quality capacitors. Browse the Electronics Components category at EnvMart for more precision capacitors and related accessories.

Explore more products in our Aluminium Capacitors category.
