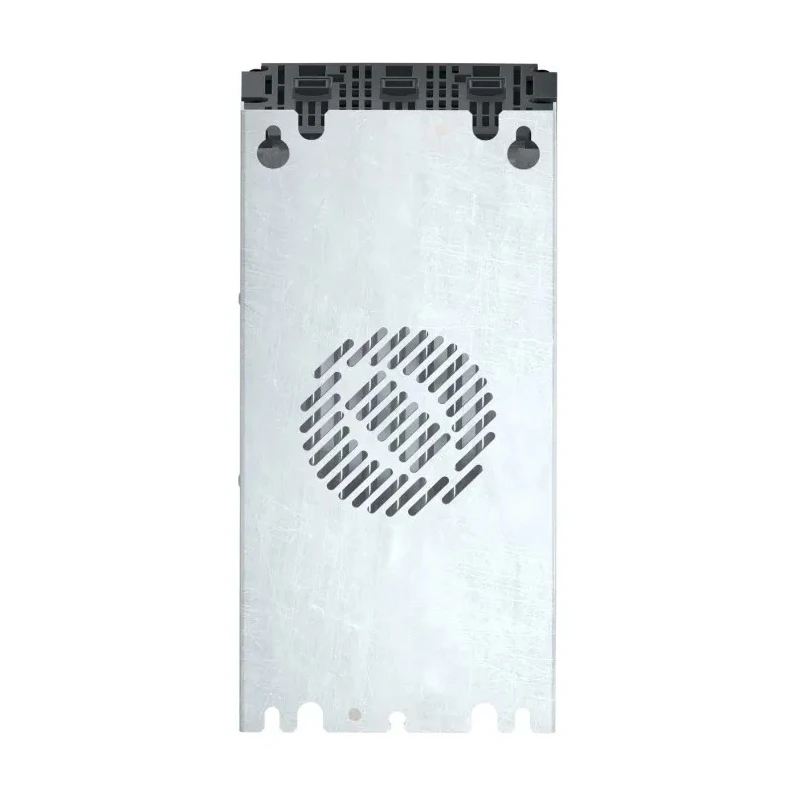

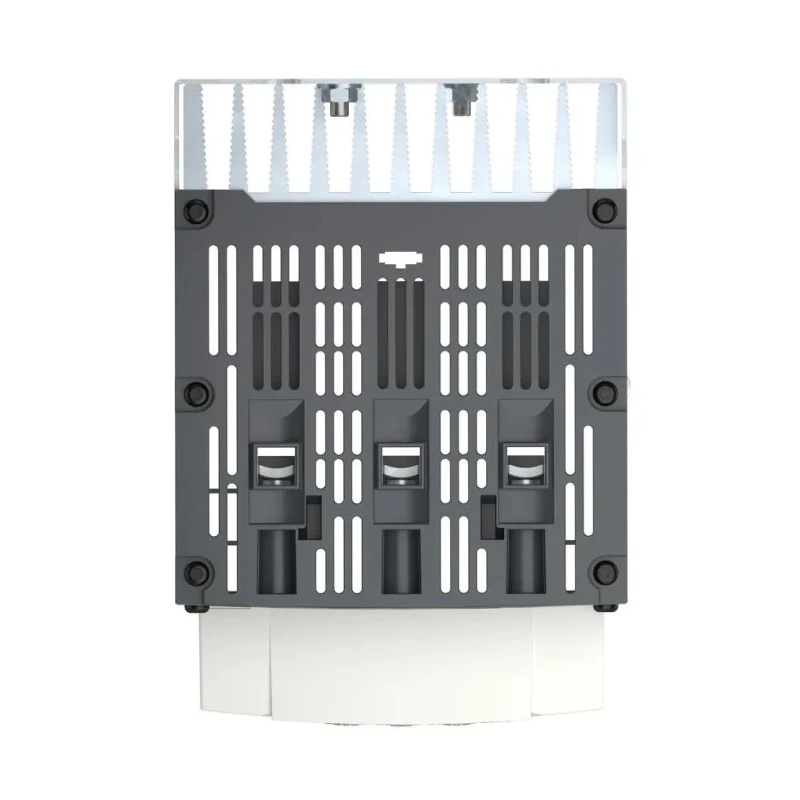

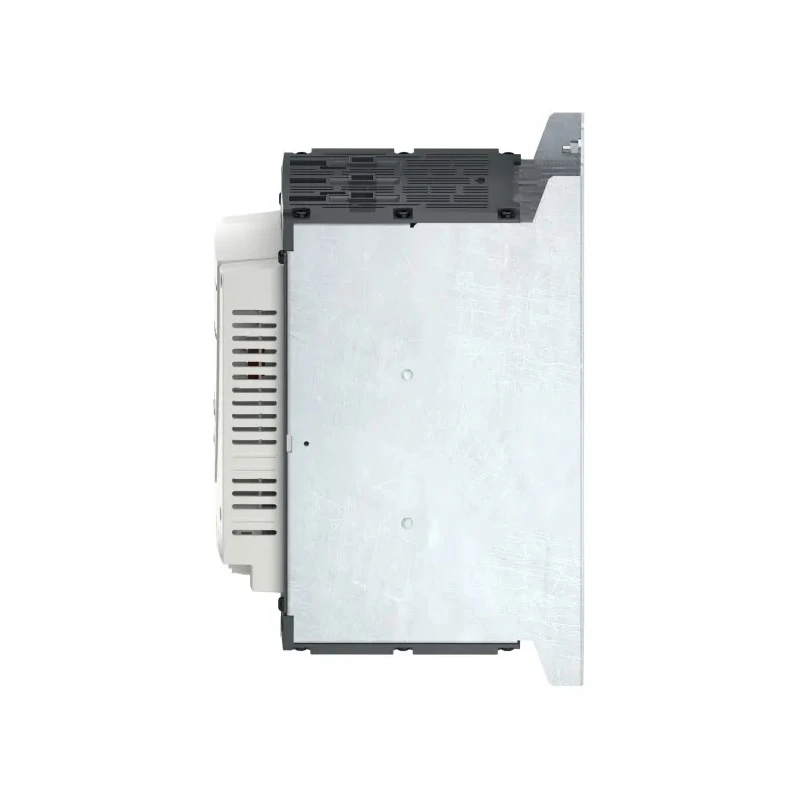

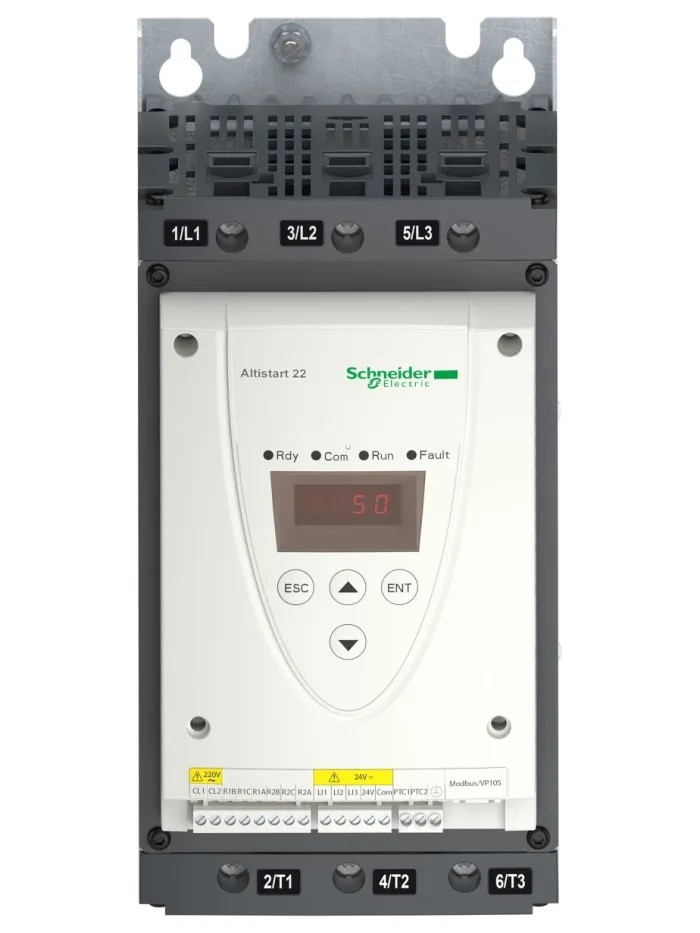

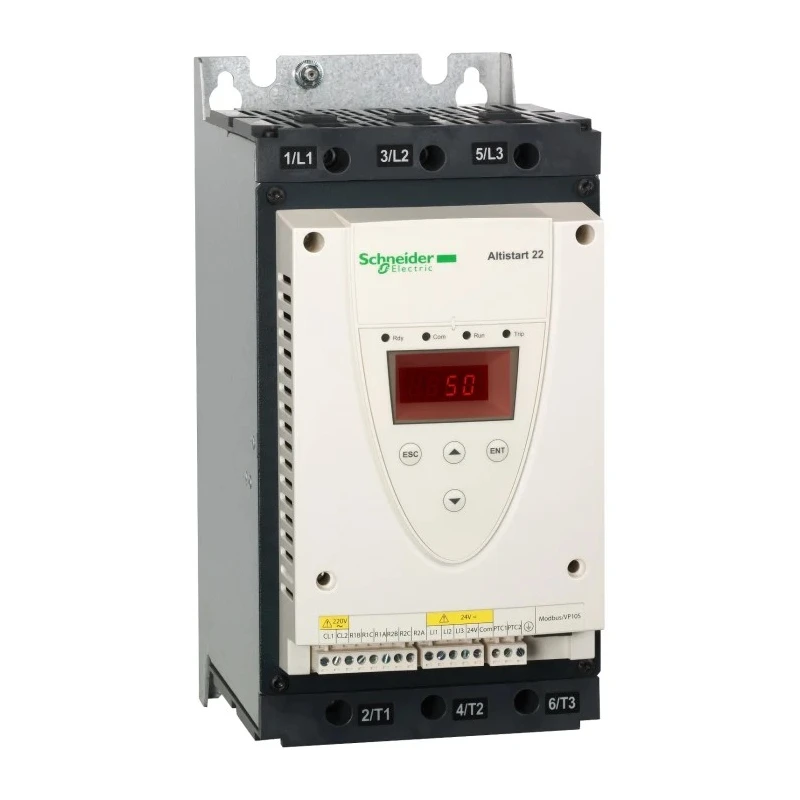

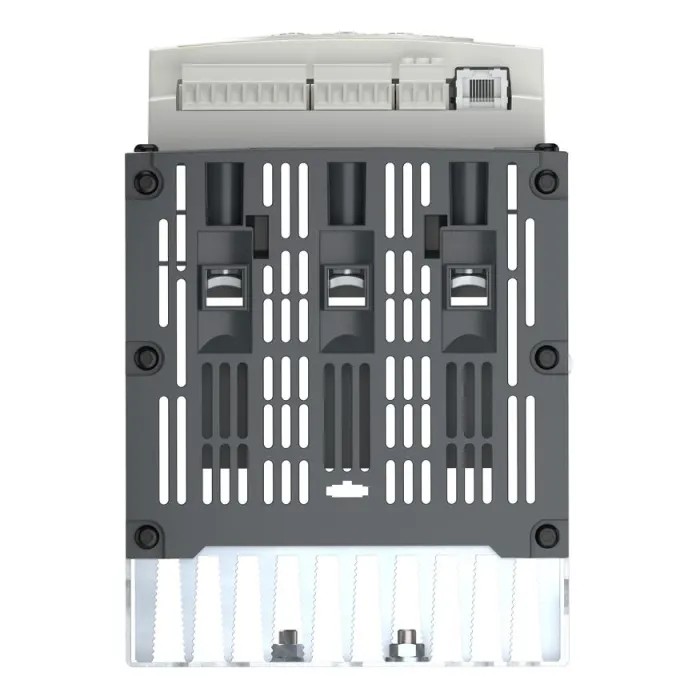

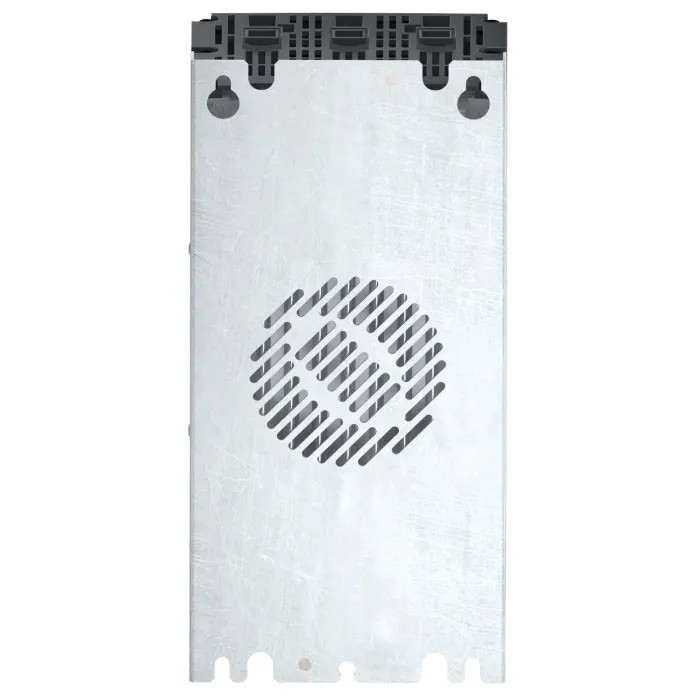

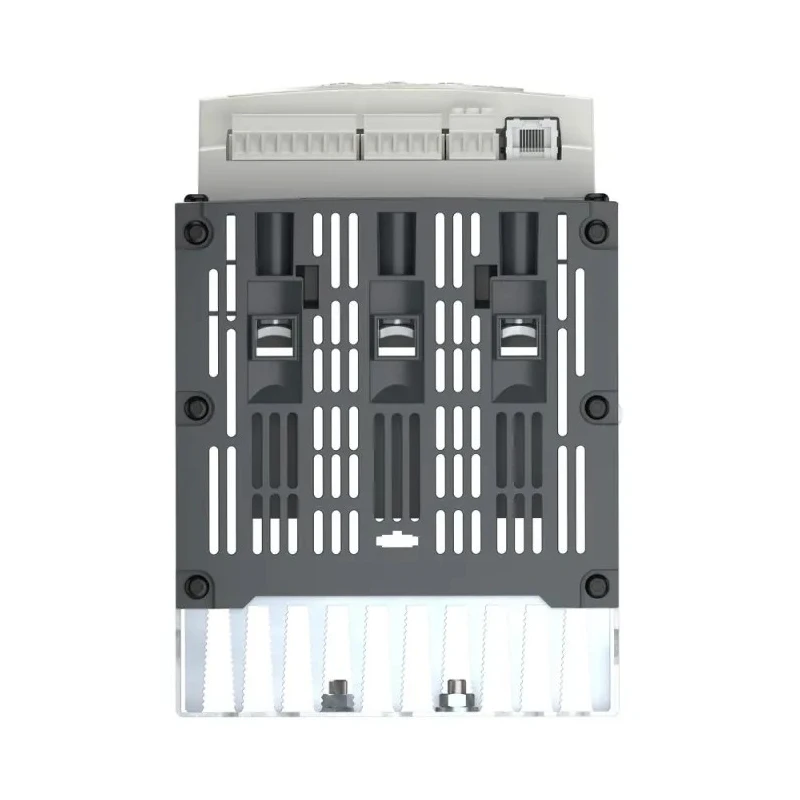

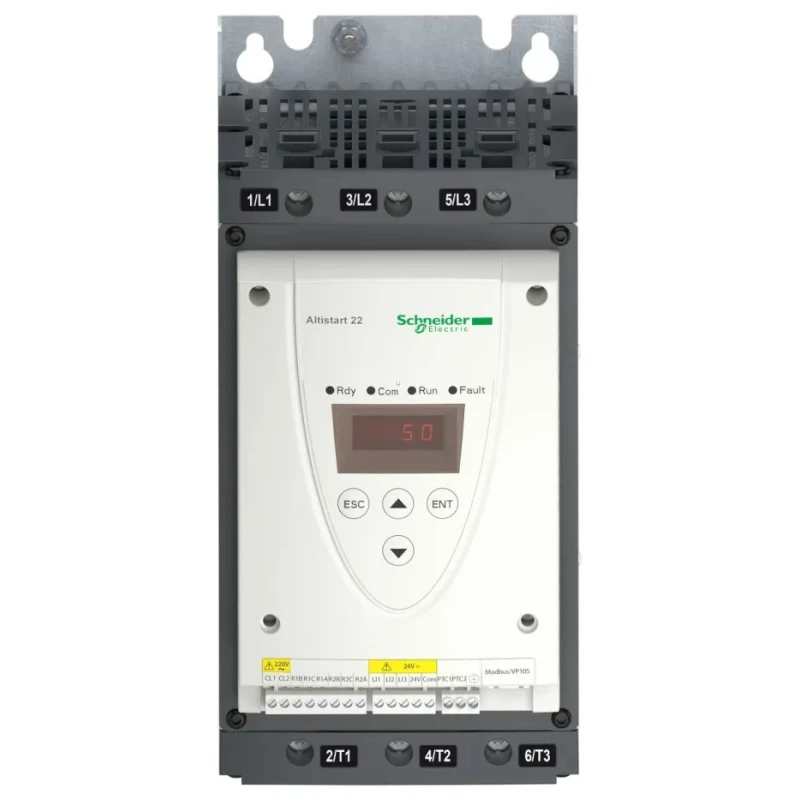

Schneider Electric 3 Phase Soft Starter 37 kW, Surface Mount, IP20 ATS22D75Q

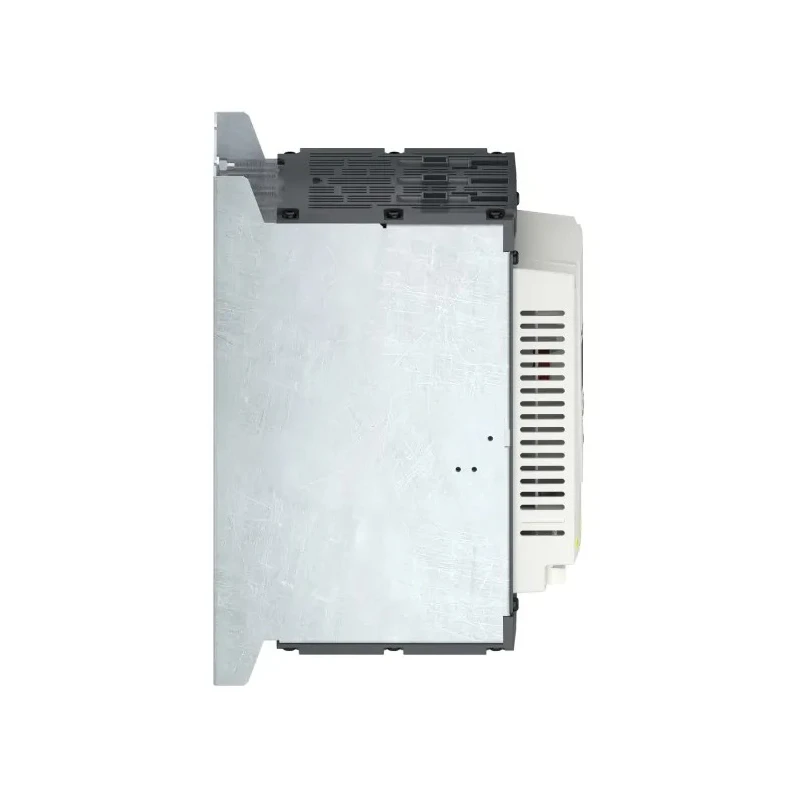

Schneider Electric ATS22D75Q 3 Phase Soft Starter is specifically engineered for reliable motor starting with a power rating of 37 kW. Its surface mount form factor and compact dimensions of 295 mm height, 145 mm width, and 247 mm depth enable space-saving integration into electrical panels.

This Soft Starter supports input voltages ranging from 230V to 440V AC and provides smooth motor acceleration while minimizing mechanical stress through advanced built-in torque control. The device includes a heat sink to ensure effective dissipation of heat under varying environmental temperatures from -10°C up to +40°C, making it suitable for harsh industrial conditions.

Rated IP20, it offers protection against touch and intrusion of objects larger than 12mm, improving operator safety. Communication and control features consist of an RJ45 connector for serial communication, three programmable logic inputs, one PTC sensor input for motor thermal protection, and two relay outputs.

The unit features an embedded bypass to optimize operational efficiency and adjustable electronic overload protection to safeguard the motor against excessive currents. Its ambient operating humidity tolerance of up to 95% non-condensing ensures reliable performance even in humid environments.

Common applications include HVAC systems, centrifugal and piston pumps, as well as material handling equipment. The ATS22D75Q allows simple connection and easy commissioning for industrial automation and motor control systems.

Compact with a slim footprint for panel space optimization. Advanced motor thermal protection and overvoltage safeguards included. Embedded bypass reduces energy consumption during run mode. Can withstand high environmental humidity without performance loss.

Facilitates digital control integration via fieldbus communication options. Explore more Schneider Electric automation products on EnvMart for your industrial control setup.
