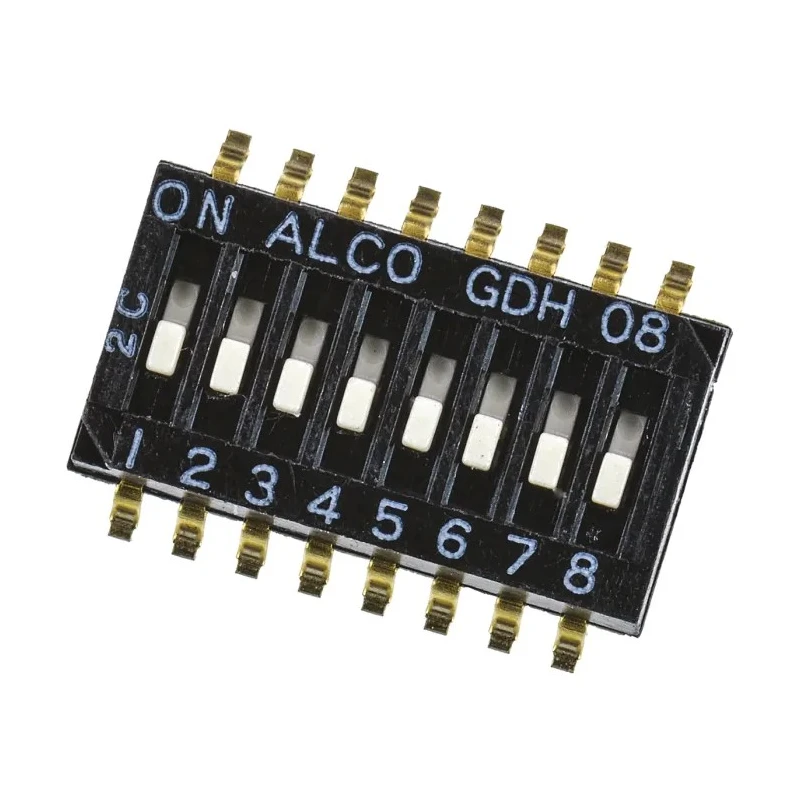

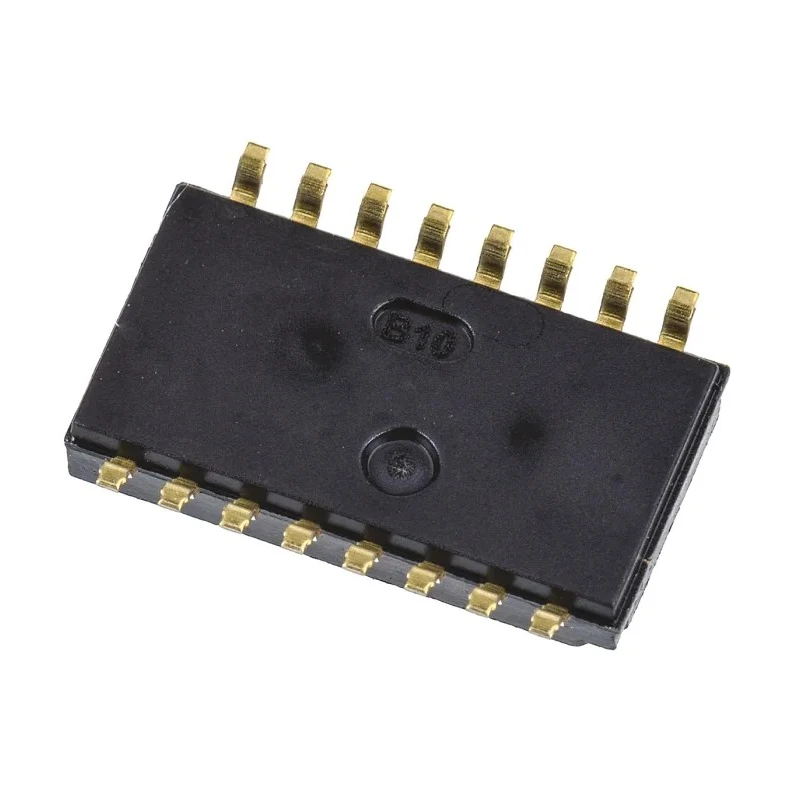

TE Connectivity Slide Rotary Coded DIP Switch with 100mΩ Contact Resistance and 100 MΩ Insulation Resistance GDH08S04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | GDH08S04 |
| Actuator Type | Slide |
| Insulation resistance | 100 MΩ @ 250Vdc |
| Contact Resistance | 100mΩ |
| Mechanical Life | 1000 Cycles |
Key Features
- The switch uses a gold wiping contact system ensuring low contact resistance of 100mΩ.
- It features an insulation resistance rating of 100 MΩ at 250Vdc for enhanced safety.
- Designed for durability, the switch provides a mechanical life of 1000 cycles.
- The low-profile design includes a tape seal for protection against contaminants.
- Suitable for applications requiring reliable rotary coded DIP switches in automation and electrical control systems.
- Compact size allows easy integration into various electronic assemblies.
- Applicable in industrial, automation, and electrical equipment requiring precise switch control.
Product Description
TE Connectivity GDH08S04 Slide Rotary Coded DIP Switch is engineered for precision and durability in electrical and automation applications. Featuring a slide actuator type, this switch ensures reliable operation with a gold wiping contact system that maintains a low contact resistance of 100mΩ, critical for maintaining signal integrity.
The insulation resistance of 100 MΩ at 250Vdc provides robust electrical isolation, making it suitable for use in demanding environments. The switch boasts a mechanical life rated at 1000 cycles, ensuring sustained performance over time.
Its low-profile design is complemented by a tape seal that protects against dust and moisture ingress, enhancing longevity. This DIP switch is designed to fit securely on PCBs, making it ideal for compact electronic and automation systems.
Applications for the GDH08S04 include use in industrial automation equipment, control panels, instrumentation, and other electrical devices requiring precise rotary coded switch functions.
The switch incorporates a gold wiping contact system that offers excellent conductivity and low resistance. It maintains an insulation resistance rating of 100 MΩ at 250Vdc to ensure safe operation. Mechanical life of 1000 cycles ensures durability for repeated use.
Low-profile tape seal design protects the switch from environmental contaminants. Compact DIP switch suitable for integration on printed circuit boards. Compatible with multiple control and automation applications. Engineered to meet the needs of electrical and industrial control systems.
This product is part of the extensive TE Connectivity range of Rotary Coded DIP Switches, known for quality and reliability. Explore more components in the Switches & Sockets category on EnvMart to find compatible control switches and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of the GDH08S04 switch is 100mΩ, ensuring efficient signal integrity during operation.
This model has an insulation resistance rating of 100 MΩ at 250Vdc, providing robust electrical isolation.
The GDH08S04 switch is rated for a mechanical life of 1000 cycles, ensuring reliable performance over time.
The switch utilizes a slide actuator type, designed for precise operation in various applications.
The low-profile design of this switch allows for easy integration into compact electronic assemblies and provides a tape seal for protection against contaminants.
This switch is suitable for applications in industrial automation, control panels, instrumentation, and other electrical devices requiring precise rotary coded functions.
The GDH08S04 features a gold wiping contact system and a tape seal that protects against dust and moisture, enhancing its durability.
The GDH08S04 switch is manufactured in India.
The gold wiping contact system in this switch ensures low contact resistance and excellent conductivity, which is critical for maintaining signal integrity.
Specific dimensions and physical parameters are not provided in the available data, but the switch is designed for compact integration on printed circuit boards.
The switch features a tape seal for protection against environmental contaminants, making it suitable for various environments, but specific outdoor ratings are not mentioned.
The GDH08S04 is designed to fit securely on PCBs, so it should be installed in a manner that accommodates its low-profile design for optimal performance.
