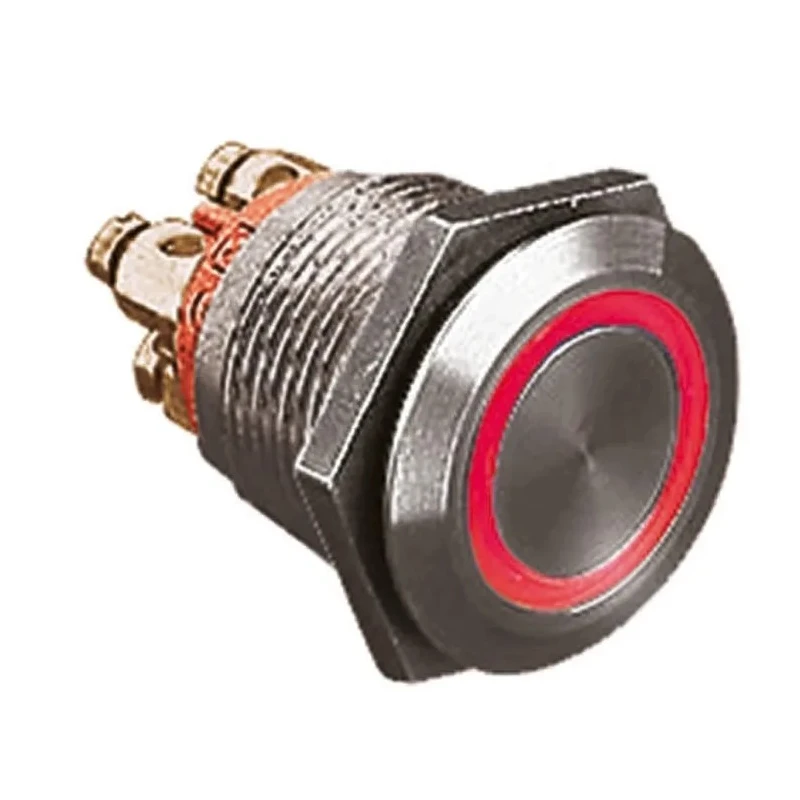

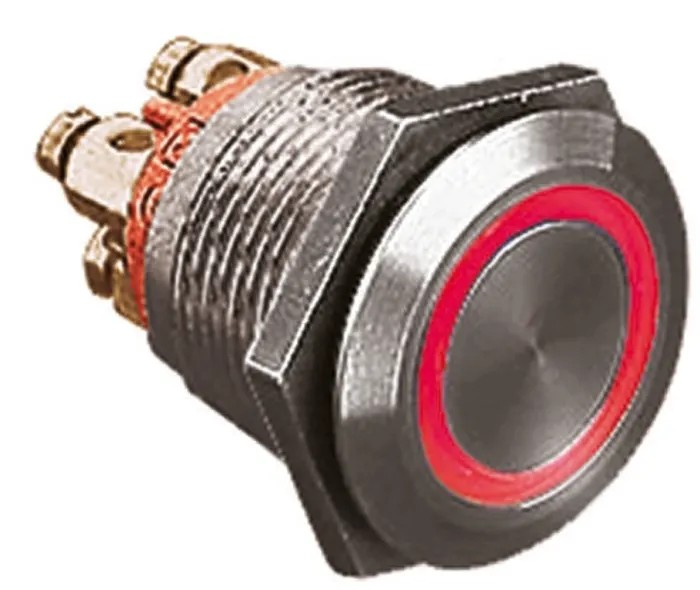

Bulgin Stainless Steel Vandal Resistant Illuminated Momentary Push Button Switch Panel Mount, 19.2 mm Cutout, SPST MPI002

Bulgin MPI002 series represents a high-quality stainless steel vandal resistant illuminated push button switch designed for panel mounting with a precise 19.2 mm cutout. Featuring a single pole single throw (SPST) contact configuration, this momentary push button switch is engineered for robust and reliable control applications.

The push button is illuminated with bright daylight blue and red LEDs, providing excellent visual indication for status feedback in automated and electrical systems. Its silver actuator color and durable stainless steel construction make it suitable for demanding environments where vandal resistance is necessary.

With an IP66 ingress protection rating, the switch is resistant to dust ingress and water jets, suitable for both indoor and outdoor industrial and commercial installations. It operates at a contact DC voltage of 24V and supports a switch contact current of 50mA.

Designed for a wide operating temperature range from -30°C to 70°C, the MPI002 switch maintains reliable performance in harsh conditions. The device endures a mechanical life of over 750,000 operations, ensuring long-term durability. The illumination voltage is 24V DC, with separate LED terminals for easy electrical connections.

The switch meets RoHS compliance standards, supporting environmentally responsible manufacturing and usage. Its panel mount design enables straightforward installation in control panels, automation systems, electrical machinery, and other industrial and manufacturing applications that require secure and visible control inputs.

Constructed from durable stainless steel with vandal resistant properties. Illuminated momentary push button for clear operational feedback. Panel mounting with a 19.2 mm cutout size for compatibility. SPST switch configuration supporting 24V DC at 50mA current.

Separately wired blue and red LEDs for status indication. High IP66 rating for protection against dust and water jets. Wide temperature operation range suitable for various industrial environments. Mechanical rating of 750,000 operations for extended life.

Compliant with RoHS standards for safe and eco-friendly use. Ideal for industrial automation, electrical cabinets, and control panels.

This Bulgin MPI002 illuminated push button switch provides reliable and secure user interaction for industrial and electrical applications requiring vandal resistant, illuminated controls. Explore more high-quality Push Button Switches in the Electronics & Electricals category at EnvMart.
