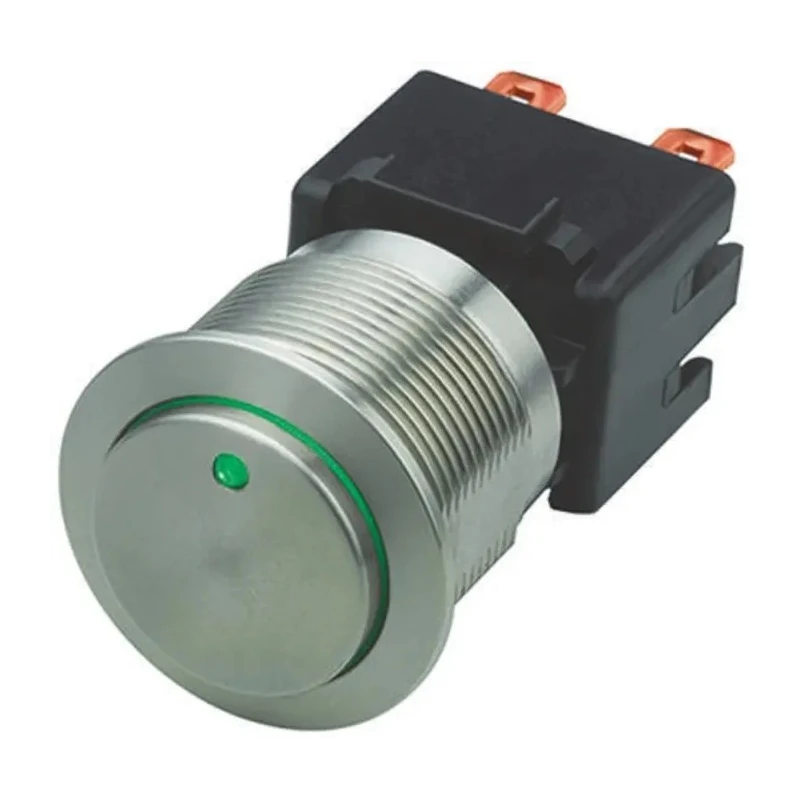

Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, DPDT, Green 1241.6833.1122000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP00, IP64 |
| Mount Type | Panel |
| Series | MSM LA 19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Tab |
| Standards/Approvals | CSA, IEC, RoHS, UL |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 30V dc |
| Actuator Style | Button |
| Switch Contact Current | 12A |
Key Features
- The actuator has a natural color and button style.
- This push button switch includes a green LED illumination for visual status indication.
- Electrical ratings include a contact current of 12A and contact DC voltage of 30V.
- The IP00 and IP64 ratings ensure suitability for use in environments requiring protection against dust and water splashes.
- Operating temperature ranges from -25°C up to 85°C, supporting robust usage conditions.
- The switch offers a 2-pole (2P) configuration and employs tab-type terminals for quick connect.
- Complies with CSA, IEC, RoHS, and UL certifications, suitable for safety and compliance standards.
- Designed for harsh environments with IK07 shock resistance and an IP64 sealed stainless steel housing.
Product Description
Schurter 1241.6833.1122000 MSM LA 19 Series Illuminated Push Button Switch is a robust, latching switch designed for panel mounting with a 22 mm cutout. Featuring a green LED for illuminated status indication, this DPDT switch operates safely with a 12A contact current at 30V DC. Its durable stainless steel construction is IP64 sealed and rated IP00 for environmental protection, making it suitable for industrial and automation applications where resilience is critical.
This push button switch is engineered to withstand harsh environments, with IK07 shock resistance and long mechanical life reaching up to 150,000 operations. The actuator is a natural color button type that requires an operating force of 10N and has a travel distance of 4.5 mm, protruding 3.7 mm above the panel when in the off position. The terminals are quick connect tab types, facilitating easy installation and maintenance.
The switch supports a 2-pole configuration with latching operation (push-on, push-off), providing reliable switching functions in electrical control panels, machinery, and automation systems. It has a wide operating temperature range from -25°C to 85°C, making it suitable for diverse industrial, manufacturing, and HVAC environments.
Certified to CSA, IEC, RoHS, and UL standards, the Schurter MSM LA 19 Series illuminated push button switch offers safety and compliance assurance. The illumination type requires appropriate series resistors for point illuminated versions, while ring illuminated versions have built-in resistors for 24V DC operation. This product is ideal for installation in electrical control panels, industrial automation setups, and other applications requiring robust, reliable manual controls.
The actuator has a natural color and button style. This push button switch includes a green LED illumination for visual status indication. Electrical ratings include a contact current of 12A and contact DC voltage of 30V.
The IP00 and IP64 ratings ensure suitability for use in environments requiring protection against dust and water splashes. Operating temperature ranges from -25°C up to 85°C, supporting robust usage conditions. The switch offers a 2-pole (2P) configuration and employs tab-type terminals for quick connect.
Complies with CSA, IEC, RoHS, and UL certifications, suitable for safety and compliance standards. Designed for harsh environments with IK07 shock resistance and an IP64 sealed stainless steel housing. Mechanical lifespan is up to 150,000 operations with an actuator operating force of 10N and travel of 4.5 mm.
This Schurter push button switch is a reliable choice for manufacturers and engineers requiring a high-quality illuminated control switch. Explore more related Push Button Switches and components in the Electronics & Electricals category on EnvMart to find the perfect fit for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact current rating of 12A and operates at a contact DC voltage of 30V.
It has an IP rating of IP00 and IP64, indicating suitability for protection against dust and water splashes.
The switch employs tab-type terminals for quick connection, facilitating easy installation and maintenance.
The operating temperature range for this unit is from -25°C to 85°C, making it suitable for diverse environments.
This model features a DPDT (Double Pole Double Throw) contact configuration with a 2-pole (2P) switch setup.
It has a mechanical lifespan of up to 150,000 operations, ensuring long-term usability in various applications.
It complies with CSA, IEC, RoHS, and UL standards, ensuring safety and compliance for industrial use.
The actuator is a natural color button style, designed for easy identification and operation.
The actuator has a travel distance of 4.5 mm and requires an operating force of 10N.
This unit is designed for use in electrical control panels, industrial automation setups, and machinery requiring reliable manual controls.
The required panel cutout size for this switch is 22 mm, ensuring a proper fit during installation.
It includes a green LED for illuminated status indication, enhancing visibility during operation.
