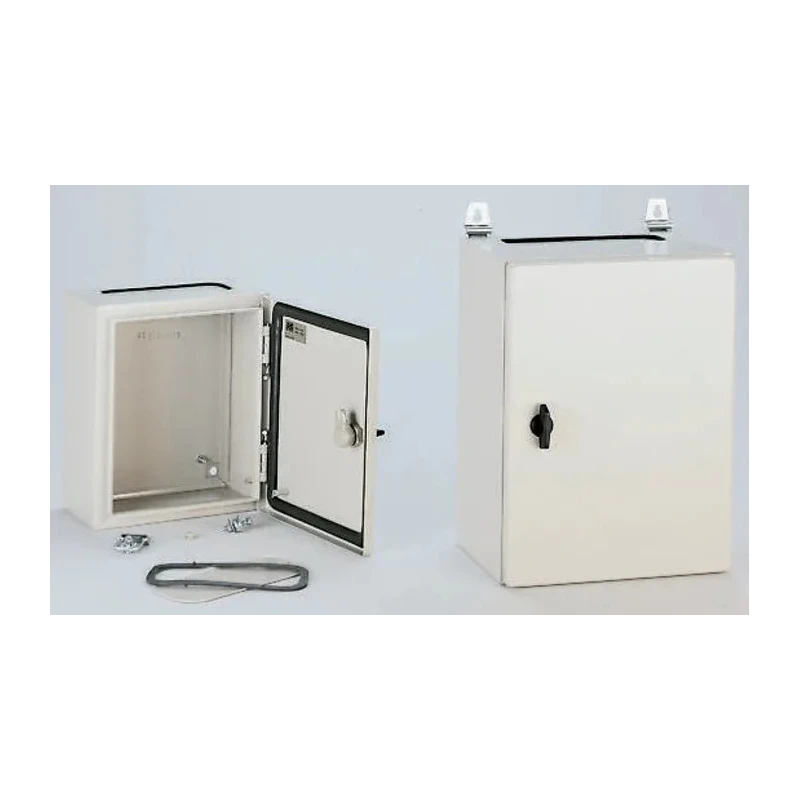

Schneider Electric Spacial CRN Series Steel Wall Box IP66 600mm x 400mm x 150mm NSYCRN64150
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYCRN64150 |
| IP Rating | IP66 |
| Series | Spacial CRN |
| External Width | 400mm |
| External Depth | 150mm |
| External Height | 600mm |
| Standards/Approvals | cULus, RoHS, REACH, IEC 62208, UL |
| Door Lock Type | Double Bar |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| Legrand Atlantic Series Steel Wall Box, IP66, 600 mm x 400 mm x 200 mmBrand | Legrand |
Key Features
- This steel wall box features an epoxy-polyester powder-coated grey finish for durability and corrosion resistance.
- It provides IP66 protection suitable for indoor and outdoor industrial environments.
- The enclosure is equipped with a 3 mm double-bar lock and a removable cable gland plate for easy access and cable management.
- The door opens 120 degrees, is reversible, and includes smart hinges for improved handling.
- It complies with standards including cULus, RoHS, REACH, IEC 62208, and UL, ensuring safety and quality.
- Rated IK10, the enclosure offers superior impact resistance for harsh conditions.
- The product includes one lock, door, body, and cable gland plate.
- Designed for multi-purpose wall mounting in industrial automation, control systems, and electrical installations.
Product Description
Schneider Electric NSYCRN64150 Spacial CRN Series Steel Wall Box is a compact, durable enclosure designed for industrial, commercial, and electrical applications requiring robust protection and reliable performance. Measuring 600 mm in height, 400 mm in width, and 150 mm in depth, this steel wall box is finished with an epoxy-polyester powder coating in grey RAL 7035, ensuring corrosion resistance and long service life.
The enclosure features an IP66 rating according to IEC 60529, providing excellent protection against dust ingress and powerful water jets suitable for both indoor and outdoor use. Its IK10 impact rating (IEC 62262) confirms outstanding resistance to mechanical impacts.
The plain front door is reversible with a 120° opening angle, facilitated by smart hinges for easy removal and reinstallation. The locking mechanism uses a 3 mm double-bar lock for secure closure. A cable gland plate is included to manage cable entries effectively. The walls are formed by a single folded section with a welded back for enhanced sealing and robustness. The polyurethane seal guarantees waterproofing for years.
Compliant with industry standards such as cULus, RoHS, REACH, IEC 62208, and UL, the Spacial CRN series meets rigorous safety and environmental requirements. It supports a maximum load of 50 kg/m² and provides welded studs for earth connection. The enclosure is best suited for industrial automation, control panels, and electrical installations requiring a reliable, secure housing.
Epoxy-polyester powder coated steel body in grey RAL 7035. IP66 protection ensures dust-tight and water-resistant enclosure. IK10 rated for high impact resistance in harsh environments. Removable, reversible door with 120° opening and double-bar lock.
Includes cable gland plate for effective cable management. Complies with cULus, RoHS, REACH, IEC 62208, and UL standards. Welded studs provide earth continuity and mounting options. Suitable for industrial automation, electrical control, and instrumentation use.
This set contains 1 lock, 1 door, 1 body, and 1 cable gland plate. Wall mounting brackets and chassis plates are available separately. The Spacial CRN Series offers a flexible and high-quality enclosure solution for demanding industrial and commercial applications.
Explore more Schneider Electric products and other Wall Boxes in the Electrical Enclosures category at EnvMart for dependable industrial solutions.
