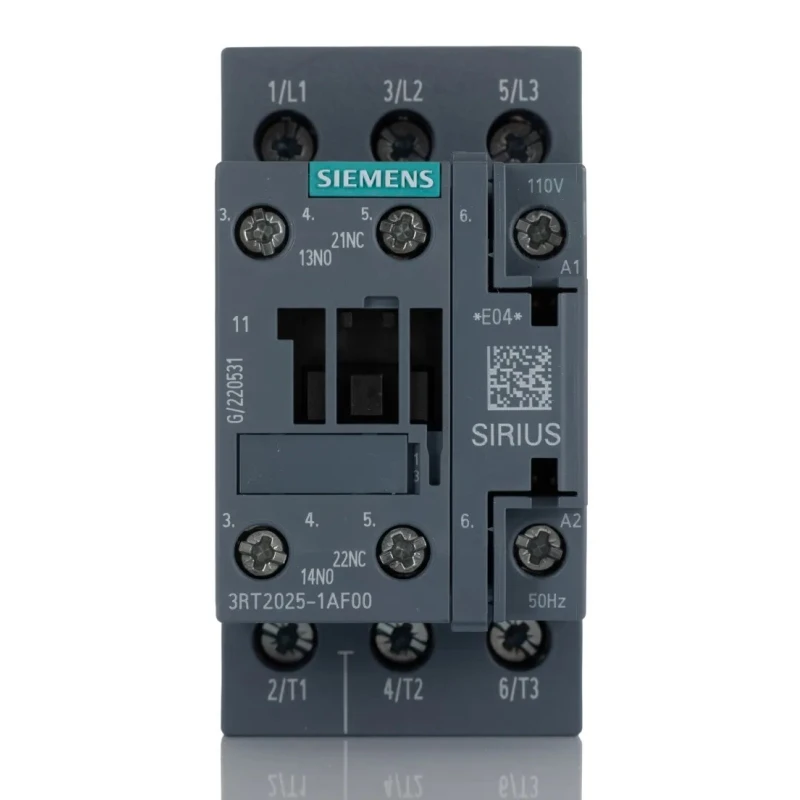

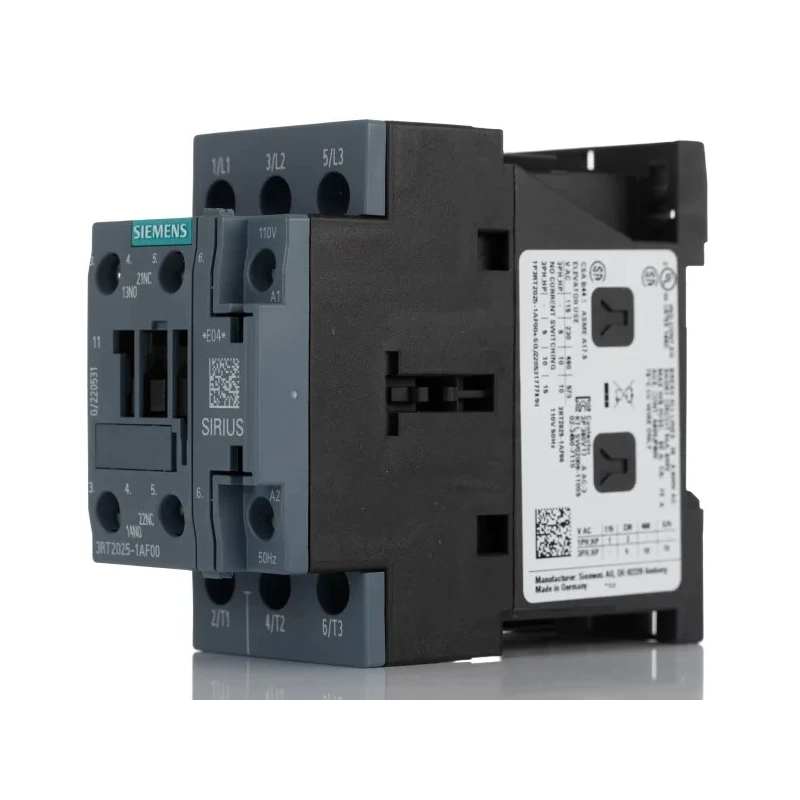

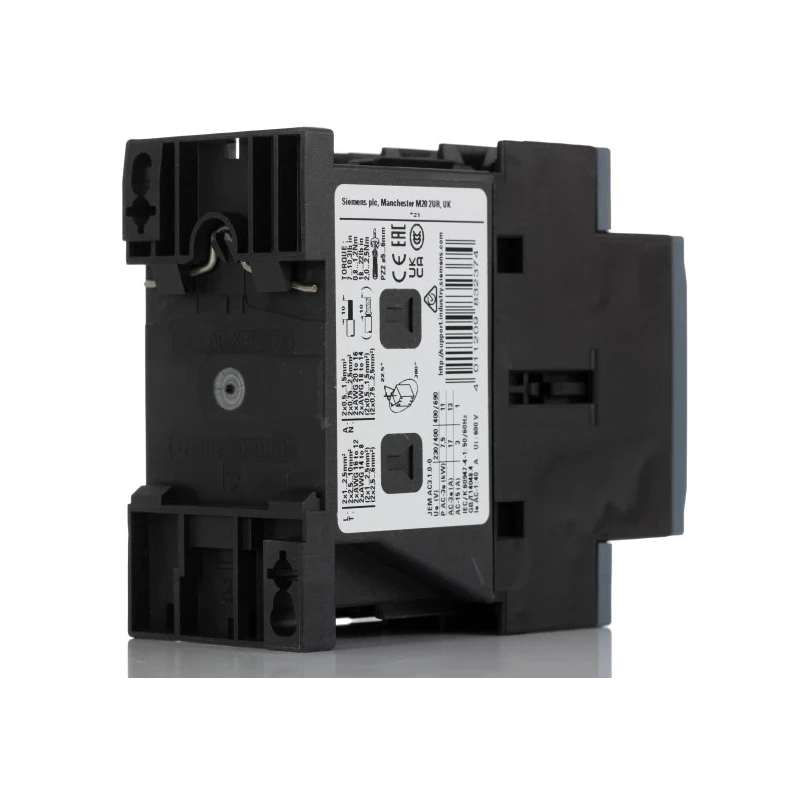

Siemens 3RT2 Contactor, 110V AC Coil, 3-Pole, 16A, 7.5kW Power Rating, 3 NO Contacts, 400V AC, DIN Rail Mount 3RT2025-1AF00
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Function | Straight |
| Length | 85mm |
| Model | 3RT2025-1AF00 |
| Depth | 97mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EAC |
| Contact Voltage | 400V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 110V ac |
| Pole and Throw Configuration | 3P |
Key Features
- Energy-efficient contactor using 1.8W coil power and long mechanical life of 1 million cycles.
- Compact dimensions 45mm (W) x 97mm (D) x 85mm (L) for easy integration in control panels.
- Suitable for controlling electric motors and lighting systems with up to 5,000 switching cycles per hour.
- Wide operational temperature range from -25°C to +60°C for reliable performance in harsh environments.
- IP20 rating ensures protection against touch and objects larger than 12mm for safe handling.
- Screw clamp terminals provide secure and straightforward wiring connections.
- Mountable on standard 35mm DIN rail or vertical surface with tilt up to 22.5° for installation flexibility.
Product Description
Siemens 3RT2025-1AF00 is a 3RT2 series contactor featuring a 110V AC coil, designed for industrial automation and control applications. It supports a contact current of 16A and a power rating of 7.5kW at 400V AC, making it suitable for electric motor and lighting system control.
This contactor operates with a highly efficient coil power consumption of 1.8W, providing long mechanical durability up to 1 million cycles. Its compact size (45mm width, 97mm depth, 85mm length) allows easy installation within confined control panels.
The device offers a maximum switching frequency of 5,000 operations per hour and functions reliably in environments ranging from -25°C to +60°C. Its IP20 protection rating safeguards against accidental contact with its components and ingress of solid objects larger than 12mm.
Installation is simplified by screw clamp terminals and compatibility with standard 35mm DIN rail mounting or vertical mounting with adjustable tilt angles up to 22.5 degrees. The contactor includes 3 normally open contacts (3 NO) and two auxiliary contacts configured as 1 NO and 1 NC for added control functions.
Energy-efficient coil with 1.8W power consumption ensures low operational energy costs. Mechanical lifespan rated at 1 million cycles guarantees reliability over extended use. Compact form factor suits space-constrained industrial control panels.
High switching frequency supports demanding automation tasks. Wide temperature and IP20 rating assure rugged performance and safety. Screw clamp terminals allow secure and easy electrical connections. Flexible mounting options enhance installation convenience.
This Siemens contactor is ideal for industrial, manufacturing, electrical distribution, HVAC, and commercial automation applications. Its quality and construction meet EAC standards and originate from Germany, underpinning industrial-grade durability and performance.
Explore the comprehensive range of Siemens automation and control products on EnvMart to find compliant solutions for your electrical panel and motor control needs.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens 3RT2025-1AF00 contactor has a power rating of 7.5kW at 400V AC.
This contactor operates with a coil voltage of 110V AC.
The contactor features 3 poles.
The maximum operating temperature for the Siemens 3RT2025-1AF00 is +60°C.
It uses screw clamp terminals for secure wiring connections.
The mechanical lifespan of the Siemens 3RT2025-1AF00 is rated at 1 million cycles.
This contactor can handle a maximum switching frequency of 5,000 operations per hour.
The dimensions are 45mm in width, 97mm in depth, and 85mm in length.
It includes 3 normally open contacts (3 NO) and 2 auxiliary contacts configured as 1 NO and 1 NC.
The minimum operating temperature is -25°C.
The Siemens 3RT2025-1AF00 complies with EAC standards.
It can be mounted on a standard 35mm DIN rail or on a vertical surface with a tilt of up to 22.5°.
