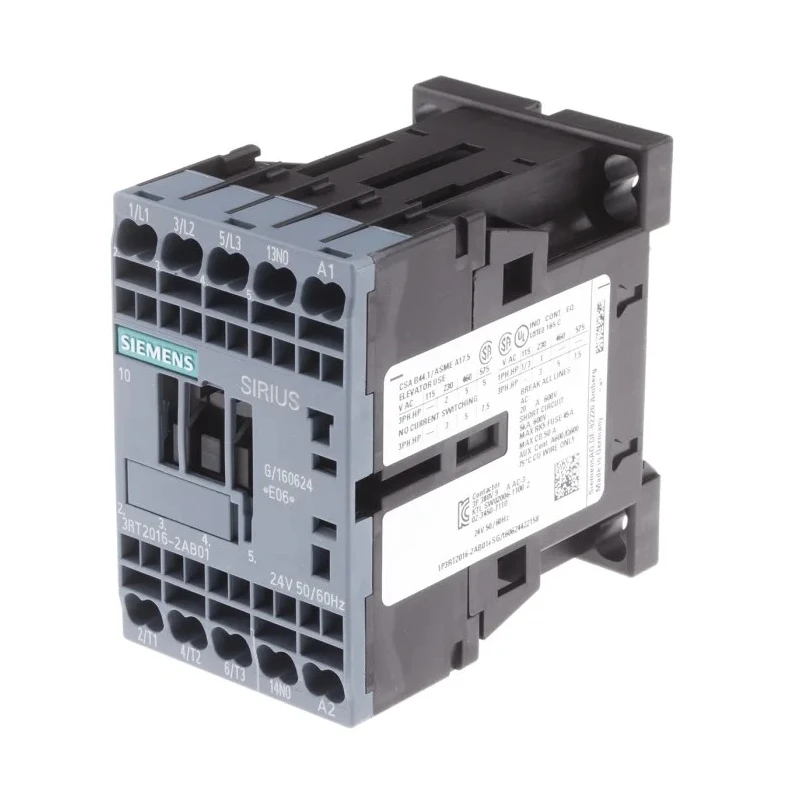

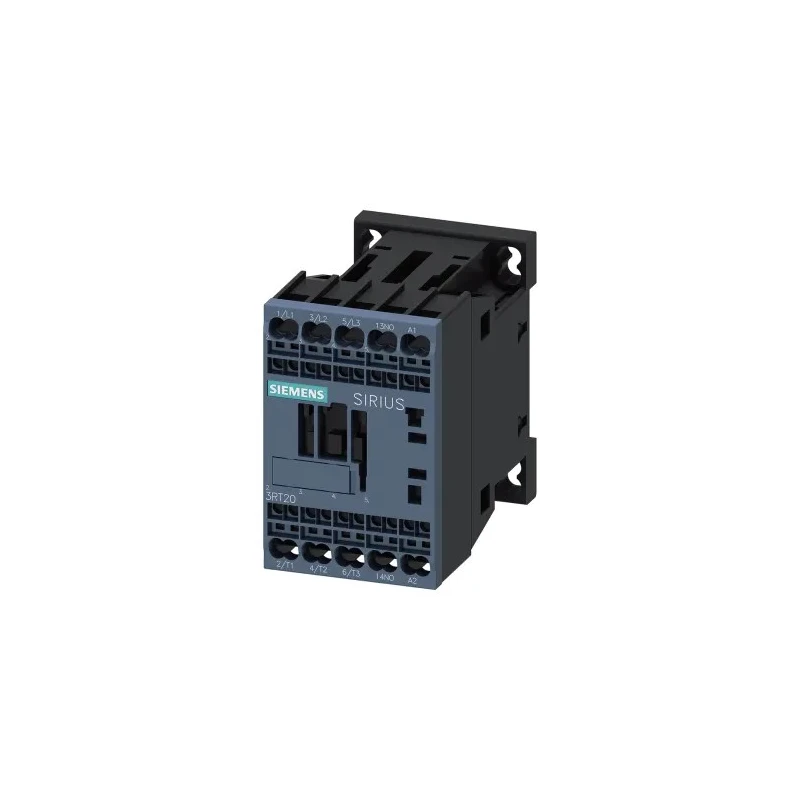

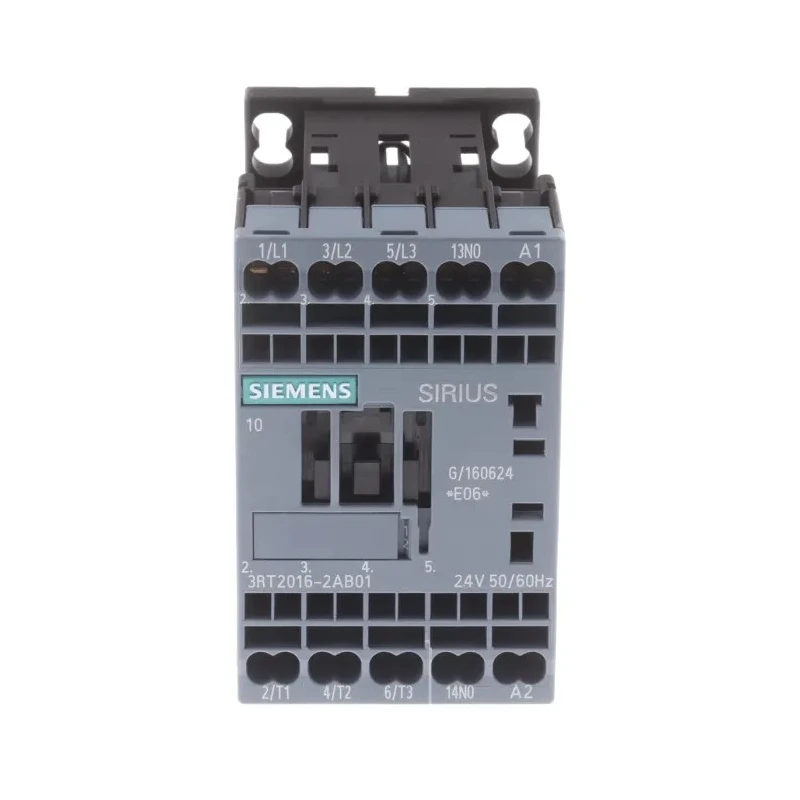

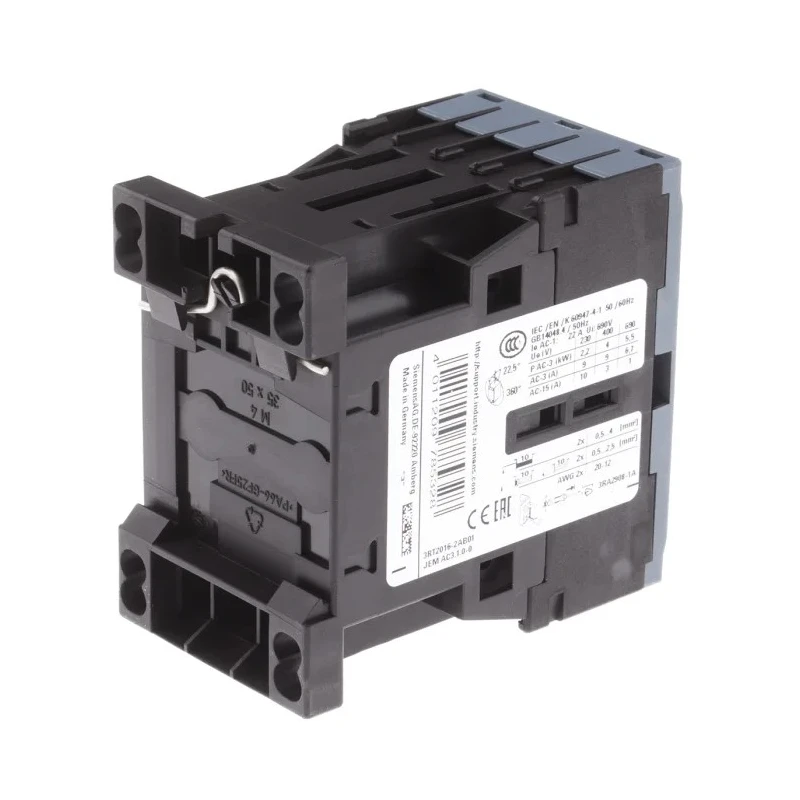

Siemens 3RT2 Contactor, 24V AC Coil Voltage, 3-Pole, 9 A, 4 kW Power Rating, DIN Rail Mount 3RT2016-2AB01

Name: Siemens 3RT2 Contactor, 24V AC Coil Voltage, 3-Pole, 9 A, 4 kW Power Rating, DIN Rail Mount 3RT2016-2AB01
Brand: Siemens
SKU: 216585
Price: 60.73 USD
Availability: InStock



Category DIN Rail Brand Siemens Condition New

Specifications

Country of Origin	Germany
Brand	Siemens
Function	Motor Control
Length	70mm
Model	3RT2016-2AB01
Depth	73mm
Width	45mm
Mount Type	DIN Rail
Series	3RT2
Power Rating	4kW
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Spring Loaded
Number of Poles	3
Standards/Approvals	EAC
Contact Voltage	400V ac
Coil Voltage	24V ac
Normal State Configuration	3 NO
Better World Claim	Low Carbon Manufacture
Contact Current	9A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NO
Operational Current Ie	22A
Control Circuit Voltage Uc	24V ac
Pole and Throw Configuration	3

Key Features

Compact size S00 design for space-efficient installation.
Designed for motor control applications with 3 NO contacts.
Supports 400V AC contact voltage and 9 A load current.
DIN Rail mount type for easy and secure mounting.
Spring-loaded terminals ensure quick and reliable connections.
Operates reliably in temperature range from -25°C to 60°C.
Auxiliary contact configuration includes 1 NO contact for expanded control.
IP20 protection class for safe industrial use.

Product Description

Siemens 3RT2016-2AB01 Contactor is a robust industrial electrical component designed for motor control and automation systems. Featuring a 24V AC coil voltage and a 3-pole configuration, it is optimized for reliable switching in demanding environments. The device operates at a rated contact voltage of 400V AC with a current rating of 9 A and a power rating of 4 kW, making it suitable for a variety of commercial and industrial loads.

The compact size S00 design measures 70mm in length, 45mm in width, and 73mm in depth, providing space-efficient installation on DIN Rails. The contactor uses spring-loaded terminals to facilitate quick and secure wiring connections, reducing installation time and enhancing safety.

This contactor supports motor control functions with 3 normally open (3 NO) contacts and includes 1 auxiliary normally open contact for additional functionality. It has an operational current rating of 22A and is designed to function reliably within a temperature range of -25°C to 60°C. Its IP20 protection rating ensures secure use in standard industrial environments while the device meets the EAC approval standards.

Compact size S00 design for versatile installation. 24V AC coil voltage suited for industrial automation control. 3-pole configuration with 9A contact current rating. Auxiliary contact included for enhanced control options.

Spring-loaded terminal technology for fast wiring connections. Wide operating temperature range from -25°C to 60°C. Robust insulation voltage rating of 690V for safety. Manufactured with low carbon footprint and Better World standards.

This Siemens contactor model 3RT2016-2AB01 is ideal for motor control applications, lighting and heating circuit control, and reliable switching within HVAC, machinery, and production line environments. It supports AC-3 ratings of 9 A at 400V, with operational efficiency at 50Hz and 60Hz frequencies.

By choosing this contactor, you get a dependable component manufactured in Germany, compliant with industrial standards, and suitable for a wide array of electrical control tasks. Explore more Siemens automation & control gear products and contactors at EnvMart for your industrial and commercial needs.
