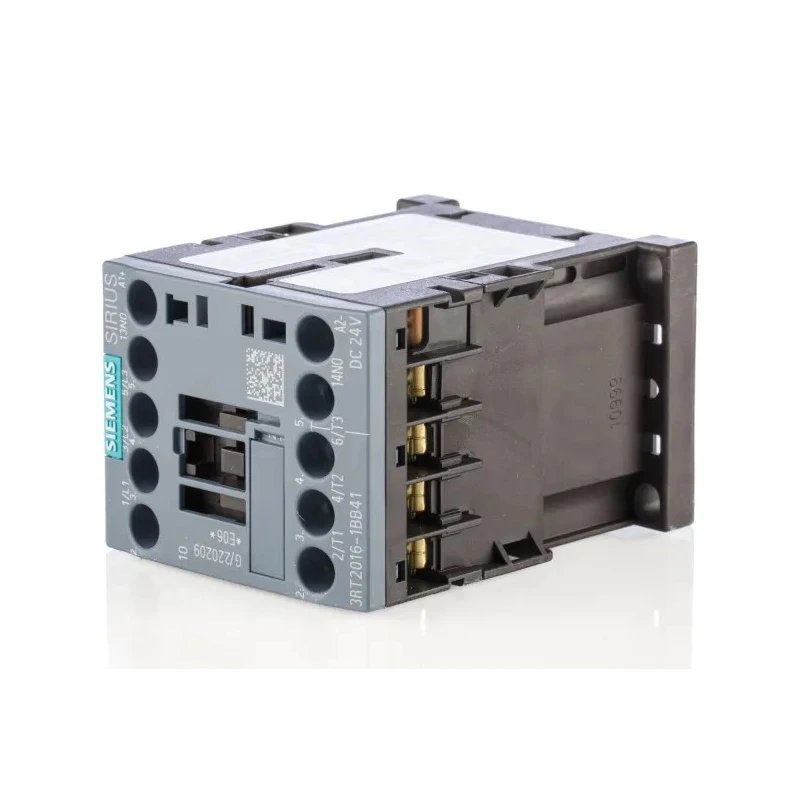

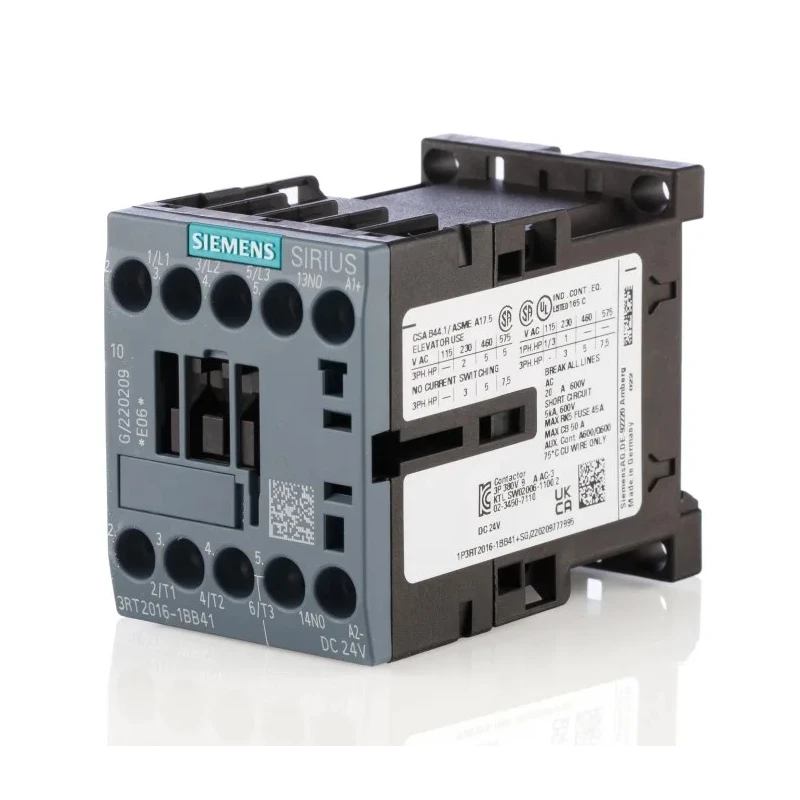

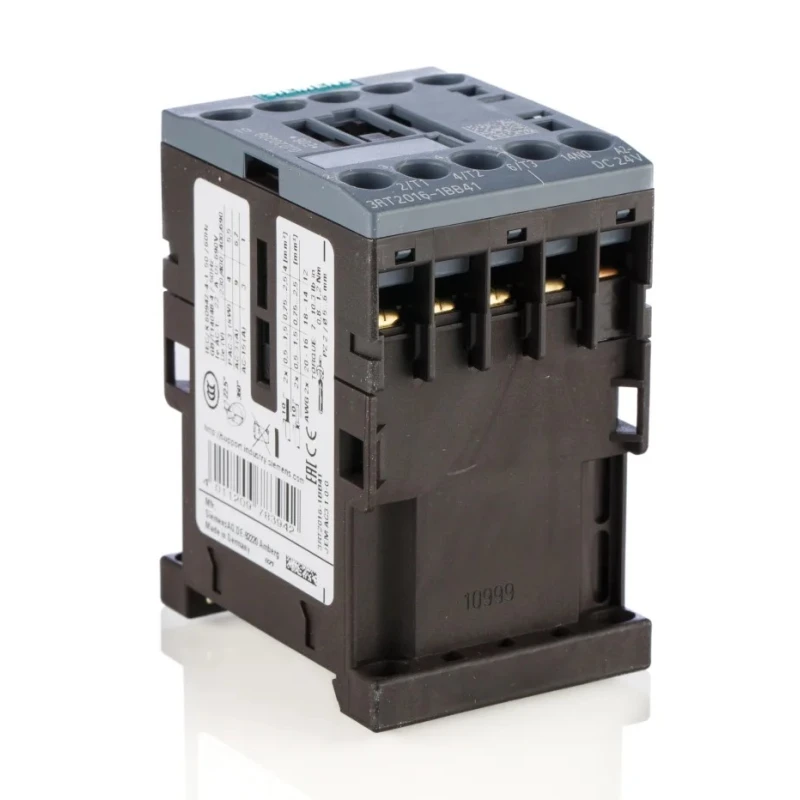

Siemens Power Contactor 24V DC Coil, 3-Pole, 9 A, 4 kW, Motor Control, 3RT2016-1BB41
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Function | Motor Control |
| Length | 57.5mm |
| Model | 3RT2016-1BB41 |
| Depth | 73mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EAC |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 22A |
| Control Circuit Voltage Uc | 24V dc |
| Pole and Throw Configuration | 3 |
| WEG CWC Contactor, 24V dc Coil, 3-Pole, 9 A, 4 kW 24V dc, 3 NO, 690V acBrand | WEG |
| RS PRO Contactor, 24V dc Coil, 3-Pole, 9 A, 4 kW, 400V, 3 VRS Stock No. | 277-8399Brand: RS PRO |
Key Features
- Features a 24V DC coil for efficient electrical control.
- Designed with 3 poles to handle 9 A contact current at 400V AC.
- Compact dimensions of 57.5mm length, 45mm width, and 73mm depth.
- Can operate reliably within temperatures ranging from -25°C to 60°C.
- Equipped with screw clamp terminals for secure and simple wiring.
- Supports a control circuit voltage of 24V DC for optimized operation.
- Offers a power rating of 4 kW suitable for heavy-duty motor control.
- Has a normally open contact configuration of 3 NO and one auxiliary contact with 1 NO.
Product Description
Siemens 3RT2016-1BB41 power contactor, part of the SIRIUS series, operates with a 24V DC coil and is designed for motor control applications requiring a 3-pole, 9 A, and 4 kW rating. Optimized for forward and reverse motor control, it helps reduce starting current peaks in three-phase motor systems, improving overall efficiency.
The contactor features sturdy screw clamp terminals that enable simple and secure wiring, minimizing maintenance efforts. Its compact footprint with dimensions of 57.5mm (length), 45mm (width), and 73mm (depth) saves installation space in electrical control panels.
Engineered to operate effectively within an ambient temperature range of -25°C to 60°C, this contactor delivers high durability and performance in harsh industrial environments. The wear-resistant insulation enhances electrical safety during prolonged use.
It supports a control circuit voltage of 24V DC and contact voltage of 400V AC, with normally open contacts configured as 3 NO and one auxiliary contact set as 1 NO. Mounting via DIN rail allows quick integration into automated systems.
With a mechanical life expectancy of 30 million switching cycles, this Siemens power contactor is well-suited for demanding industrial, manufacturing, HVAC, and automation control applications.
Features a 24V DC coil for efficient electrical control. Designed with 3 poles to handle 9 A contact current at 400V AC. Compact dimensions of 57.5mm length, 45mm width, and 73mm depth. Can operate reliably within temperatures ranging from -25°C to 60°C.
Equipped with screw clamp terminals for secure and simple wiring. Supports a control circuit voltage of 24V DC for optimized operation. Offers a power rating of 4 kW suitable for heavy-duty motor control. Has a normally open contact configuration of 3 NO and one auxiliary contact with 1 NO.
Mountable on DIN rails for easy installation. Constructed with wear-resistant insulation ensuring electrical safety.
This product is ideal for use in industrial automation, motor control systems, manufacturing processes, and other environments demanding reliable and efficient electrical switching devices.
Explore more Siemens automation and control gear products at EnvMart for reliable industrial solutions.
Explore more products in our Contactors category.
