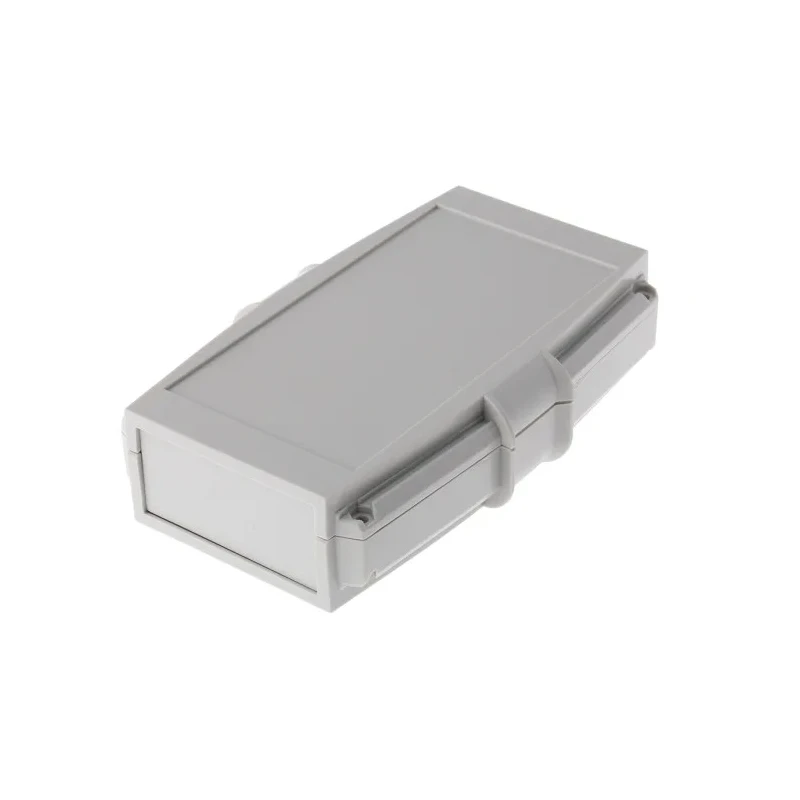

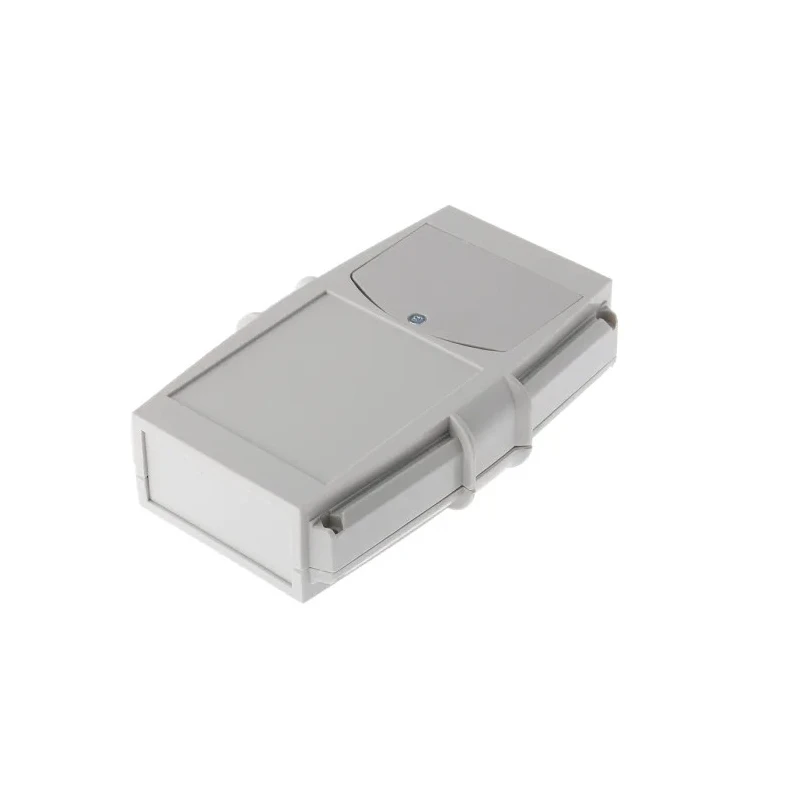

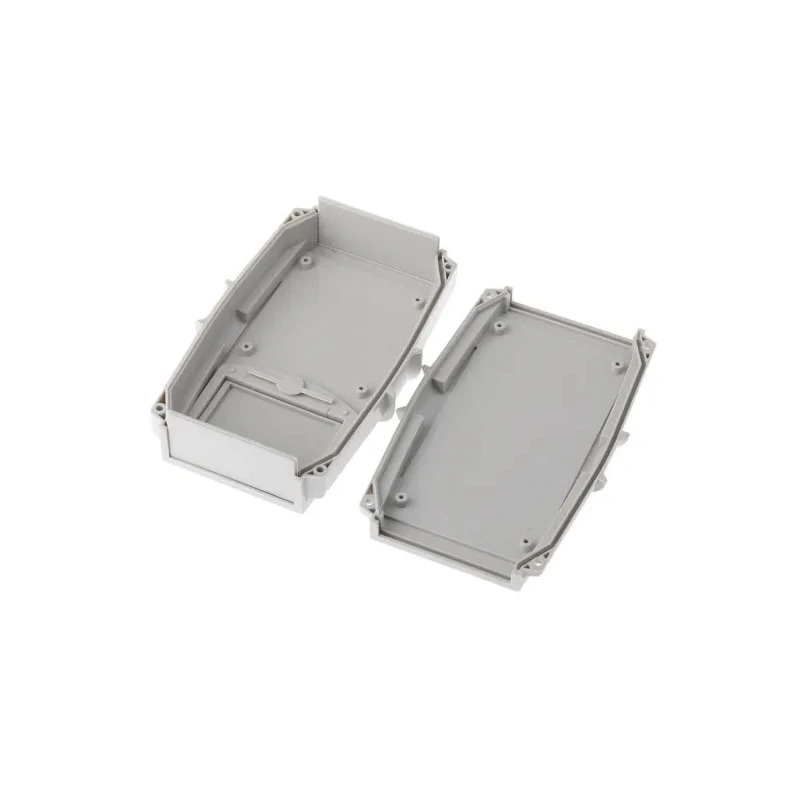

CAMDENBOSS Grey ABS Handheld Enclosure Integral Battery Compartment IP65 IP54 145mm x 35mm x 95mm CHH662BGY

Free Delivery in India | Lowest Global Shipping Charges

CAMDENBOSS Grey ABS Handheld Enclosure Integral Battery Compartment IP65 IP54 145mm x 35mm x 95mm CHH662BGY

Name: CAMDENBOSS Grey ABS Handheld Enclosure Integral Battery Compartment IP65 IP54 145mm x 35mm x 95mm CHH662BGY
Brand: CamdenBoss
SKU: 216493



Category Hand Held Enclosures Brand CamdenBoss Condition New

Specifications

Country of Origin	India
Brand	CAMDENBOSS
Colour	Grey
Body Material	ABS
Model	CHH662BGY
IP Rating	IP65, IP54
Gross Weight	150g
External Width	95mm
External Height	35mm
Standards/Approvals	RoHS
Internal Mount Type	Screw
External Length	145mm

Key Features

The enclosure is constructed with high impact ABS material for durability.
It has an external length of 145 mm, width of 95 mm, and height of 35 mm.
The product includes an integral battery compartment secured by an M3 retaining screw.
It offers IP54 protection standard, upgradeable to IP65 with an optional EPDM gasket.
The enclosure has screw-based internal mounting and a keypad recess for membrane overlays.
The design includes soft-grip corners for ergonomic handling and protection.
Screwless assembly is enabled via the four soft-grip corners.
The enclosure complies with RoHS standards and does not have hazardous area certification.

Product Description

CAMDENBOSS CHH662BGY handheld enclosure is expertly crafted from high impact ABS material featuring a grey finish. It includes an integral battery compartment, secured with an M3 retaining screw, designed for reliability in various electronic housing applications.

This enclosure measures 145 mm in length, 95 mm in width, and 35 mm in height, making it ideal for compact handheld uses. It provides robust protection with IP54 rating, which can be enhanced to IP65 using an optional EPDM gasket that resists temperatures ranging from -20°C to +85°C.

The 66 Series Grip Cases incorporate innovative design elements such as soft-grip corners that provide ergonomic handling and added protection from impacts. The assembly mechanism is screwless, facilitated by four soft-grip corner pieces, though the corner pieces are supplied separately.

Internal mounting is achieved with screws and the enclosure features recessed areas suitable for membrane keypads or overlays. The product is compliant with RoHS standards, ensuring safety and environmental compliance.

Weighing approximately 150 grams, the enclosure is lightweight yet sturdy for industrial, electronic, laboratory, and field applications requiring durable, robust handheld enclosures with integral battery compartments.

Constructed from high-impact grey ABS material for durability. Dimensions: 145 mm length, 95 mm width, and 35 mm height. Integral battery compartment with M3 retaining screw for security. IP54 protection upgrading to IP65 with optional EPDM gasket.

Soft-grip corners provide ergonomic comfort and impact protection. Screwless assembly facilitated by four separate corner pieces. Internal screw mounting and keypad recess for membrane overlays. RoHS compliant, non-hazardous area certified.

Applications include industrial, laboratory, and electronic hand-held device housing. Explore more quality electrical enclosures and related products on EnvMart for comprehensive solutions to your industrial and electronic housing needs.
