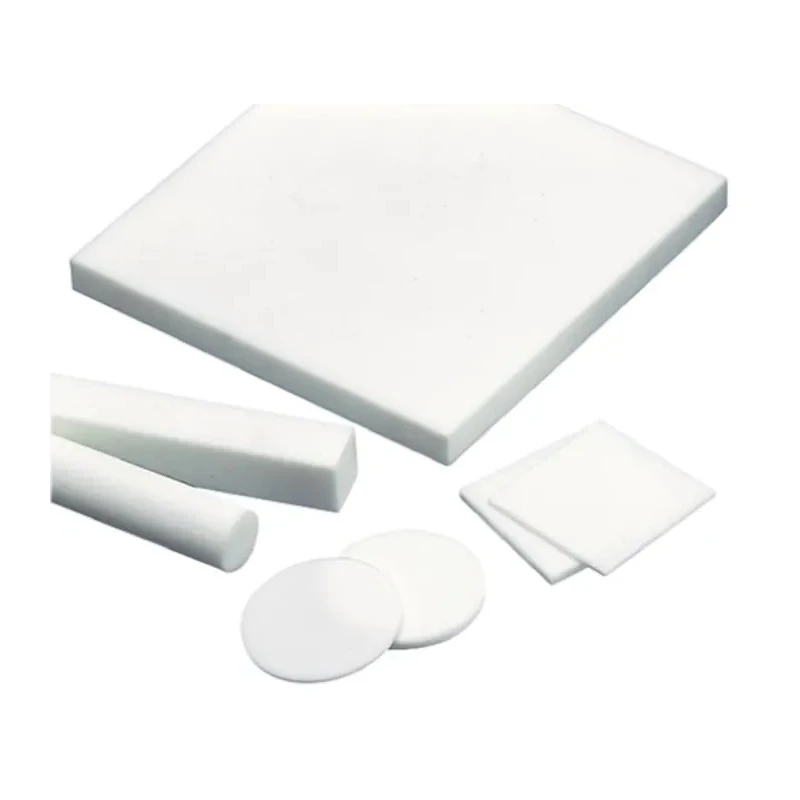

Goodfellow Machinable Glass Ceramic Ceramic Sheet 100 mm x 100 mm x 6 mm 158-3180

Goodfellow 158-3180 machinable glass ceramic ceramic sheet measuring 100 mm x 100 mm x 6 mm is a high-performance ceramic material engineered for precision component manufacture. The white ceramic sheet offers exceptional mechanical and thermal properties, making it suitable for demanding industrial applications.

This material features a density of 2.52 g/cm³, with thermal conductivity of 1.46 W/mK to manage heat effectively. It exhibits a high hardness of A 48 Rockwell and fracture toughness of 1.53 MPa, ensuring durability and wear resistance under mechanical loads.

With zero water absorption and non-porous characteristics, this sheet resists contamination and moisture ingress. The maximum continuous operating temperature is rated at 800°C, while it can withstand short-term loads up to 1000°C without deformation or post-firing.

Designed for ease of machining, Macor® is a trademarked machinable glass ceramic that can be worked using standard metalworking tools, offering machining tolerances near 0.013 mm and polished surface finishes of similar precision. It can be sealed and joined to itself or other materials, enhancing versatility in assembly.

Made from machinable glass ceramic material. Dimensions: 100 mm length, 100 mm width, 6 mm thickness. White color with a density of 2.52 g/cm³. Thermal conductivity of 1.46 W/mK. Hardness is A 48 Rockwell, fracture toughness 1.53 MPa.

Compressive strength rated at 35 kg/mm². Zero water absorption and non-wetting surface. Maximum operating temperature of 800°C; max no load temperature 1000°C. Macor® trademarked material with high machining precision. Suitable for industrial, laboratory, mechanical engineering, and precision component manufacturing.

This product is ideal for engineering applications requiring stable, precise, and durable ceramic sheets under high thermal and mechanical stress. Its machinability and robust physical properties also make it suitable for prototyping and final product usage in demanding environments.
