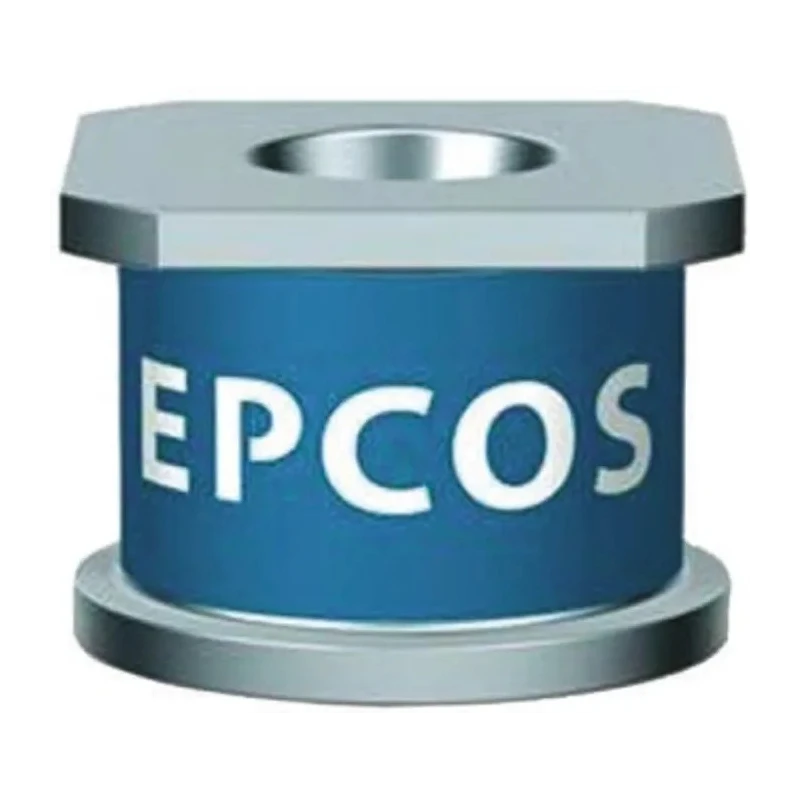

TDK Gas Discharge Tube EHV Series 90 V dc 25 kA Surface Mount 2 Electrode Arrester B88069X1630T602
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 8.3mm |
| Length | 6.05mm |
| Model | B88069X1630T602 |
| Depth | 8.3mm |
| Mount Type | Surface |
| Series | EHV |
| Maximum Operating Temperature | 90°C |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Suppressor Type | 2 Electrode Arrester |
| Maximum Voltage | 90V dc |
| Maximum Surge Current | 25kA |
| DC Spark Over Voltage | 90V dc |
| Impulse Spark Over Voltage | 550V |
Key Features
- Constructed with a miniature gas-filled design suitable for compact applications.
- Features a surface mount type for easy PCB integration.
- Maximum surge current handling capability of 25 kA ensures robust protection.
- Operating voltage rating of 90 V dc with an impulse spark over voltage of 550 V.
- Capacitance of 1.5 pF minimizes interference in circuits.
- Operates reliably between -40°C to 90°C temperature range.
- Designed without any specific standards or approvals but RoHS compliant.
Product Description
TDK B88069X1630T602 Gas Discharge Tube from the EHV series is a miniature 2 electrode arrester designed for surface mounting applications. Rated for 90 V dc operating voltage and capable of handling surge currents up to 25 kA, it provides efficient protection against voltage spikes and surges especially in telecommunication exchange main distribution frames and subscriber-end equipment.
This gas-filled surge protection component features a compact size with 6.05 mm length, 8.3 mm height, and 8.3 mm depth, combined with a low capacitance of 1.5 pF, which makes it ideal for sensitive electronics by minimizing EMI effects.
The device operates within a temperature range from -40°C to 90°C without voltage or performance degradation. The impulse spark over voltage rating of 550 V allows the arrester to withstand sudden voltage impulses ensuring circuit safety. It conforms to RoHS directives, ensuring environmentally safe manufacturing and materials.
Its surface mount design facilitates easy incorporation into automated assembly processes, increasing production efficiency. The arrester finds applications primarily in telecommunications and electrical protection circuits where reliable surge suppression is critical for system longevity and operational stability.
Miniature gas-filled 2 electrode arrester with surface mount type. Maximum surge current rating of 25 kA for high energy transient protection. 90 V dc operating voltage with low capacitance of 1.5 pF to prevent signal distortion.
Operating temperature from -40°C to 90°C suitable for harsh environments. Compact dimensions allow integration in space-constrained PCB layouts. Impulse spark over voltage of 550 V for effective transient voltage suppression.
RoHS compliant, supporting environmentally responsible manufacturing.
This surge protection component is ideal for industrial, telecommunications, electronics manufacturing, and circuit protection applications. Explore more high-quality Gas Discharge Tubes from TDK and other leading brands in the Electronics & Electricals category at EnvMart. Protect your devices with trusted components engineered for durability and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current handling capability of this model is 25 kA, providing robust protection against voltage spikes.
This gas discharge tube operates at a maximum voltage of 90 V dc.
The dimensions of this unit are 6.05 mm in length, 8.3 mm in height, and 8.3 mm in depth.
It features a low capacitance of 1.5 pF, which minimizes interference in circuits.
The device operates reliably within a temperature range of -40°C to 90°C.
The impulse spark over voltage rating is 550 V, allowing it to withstand sudden voltage impulses.
This model is designed for surface mounting, facilitating easy integration into PCBs.
It is primarily used in telecommunications and electrical protection circuits where surge suppression is critical.
Yes, it conforms to RoHS directives, ensuring environmentally safe manufacturing and materials.
This model is part of the EHV series of gas discharge tubes.
It is a 2 electrode arrester designed for effective transient voltage suppression.
The country of origin for this model is India.
