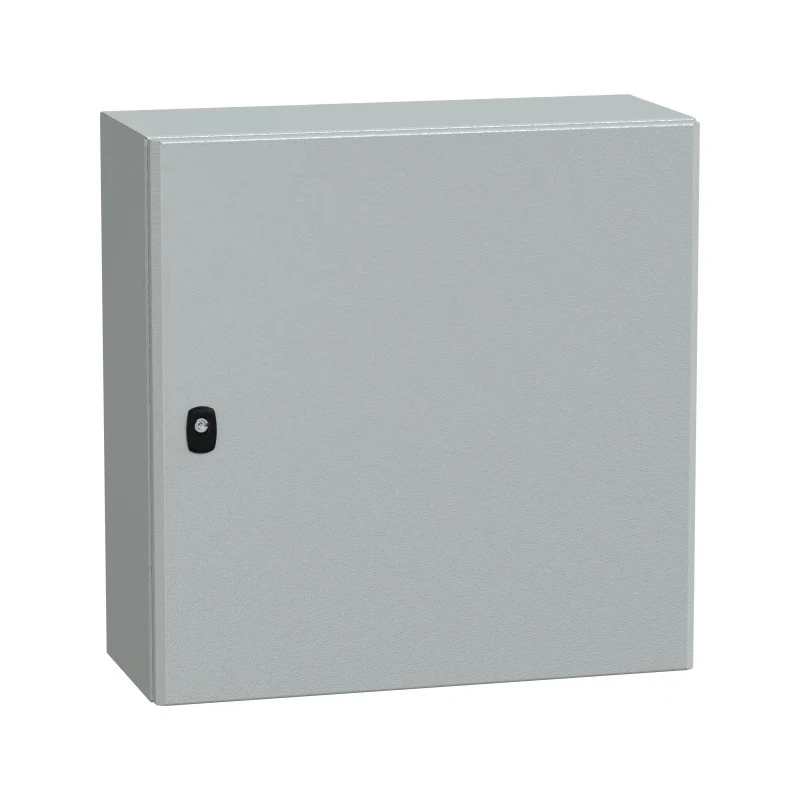

nVent - Hoffman PanelSeT S3D Series Steel Wall Box IP66 Grey RAL 7035 600 mm x 600 mm x 250 mm NSYS3D6625P

Schneider Electric NSYS3D6625P PanelSeT S3D Series Steel Wall Box is a high-quality wall-mounted electrical enclosure designed primarily for demanding industrial and commercial electrical installations. With overall dimensions of 600 mm (height) x 600 mm (width) x 250 mm (depth), it features a robust steel body coated with an epoxy-polyester powder finish in Grey RAL 7035 for enhanced corrosion resistance and durability.

This enclosure delivers an IP66 rating, providing superior protection against dust ingress and powerful water jets, making it suitable for harsh environments such as chemical processing plants, gas plants, and hospitals. The enclosure is UV resistant, ensuring long-lasting performance under direct sunlight exposure.

The door of the enclosure is a single plain panel that can be reversed or completely removed, offering flexibility to adapt to various installation requirements. It secures with a 3-point closure system and includes a 3 mm double bar lock insert to ensure the safety of internal components. The precise lock type enhances tamper protection and operational security.

Included with the enclosure is a mounting plate, allowing for straightforward installation of electrical or automation components inside the enclosure. The fixing kit facilitates easy and secure fixing to walls or panels.

The PanelSeT S3D series complies with multiple international standards including IEC 62208, BV, RoHS, DNV, UL, REACH, cUL, and LR, certifying it for global usage and adherence to safety and environmental guidelines. It also holds an IK10 impact rating, protecting against mechanical shocks.

Steel construction with epoxy-polyester powder coating provides long-term durability. IP66 ingress protection safeguards components against dust and water jets. 3-point closure system with double bar lock enhances security.

Reversible and removable door for flexible access options. Compliant with IEC 62208 and other international standards. UV resistant for outdoor installations exposed to sunlight. Includes mounting plate and fixing kit for easy installation.

IK10 impact rating ensures resistance against mechanical impacts. Designed for demanding applications such as gas plants, chemical processing, and hospitals. Manufactured in France with a focus on sustainability and disassemblability.

This Schneider Electric Wall Box is ideal for industrial, manufacturing, water treatment, electrical automation, and commercial sectors requiring secure, durable, and safe electrical enclosures. Explore more electrical enclosure solutions within EnvMart to find complementary products and accessories suitable for your applications.
