RS PRO Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP Output 30V DC 8 mm Detection 200mA 1kHz 701-8266

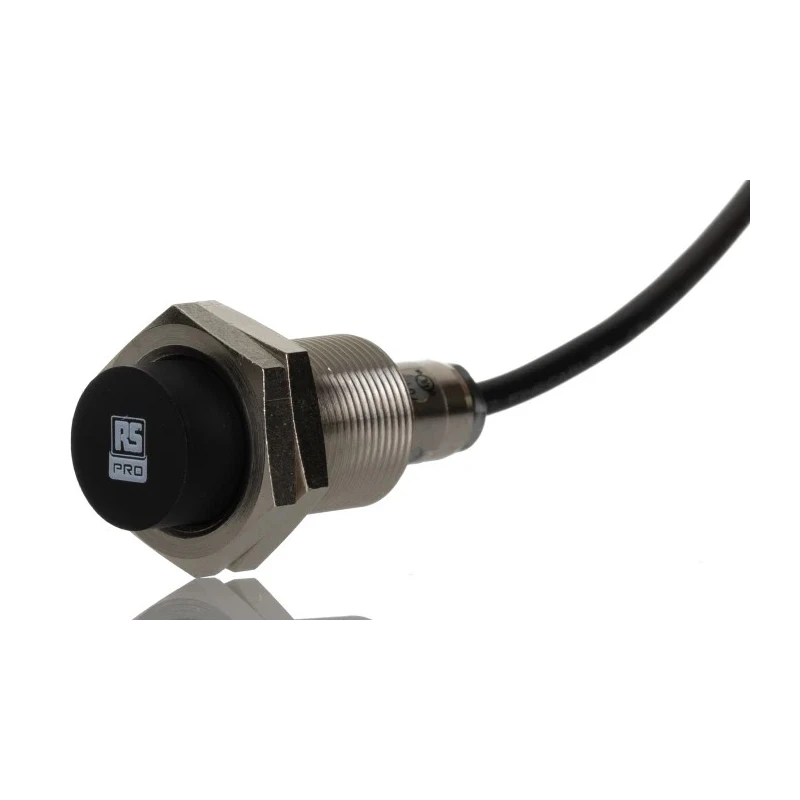

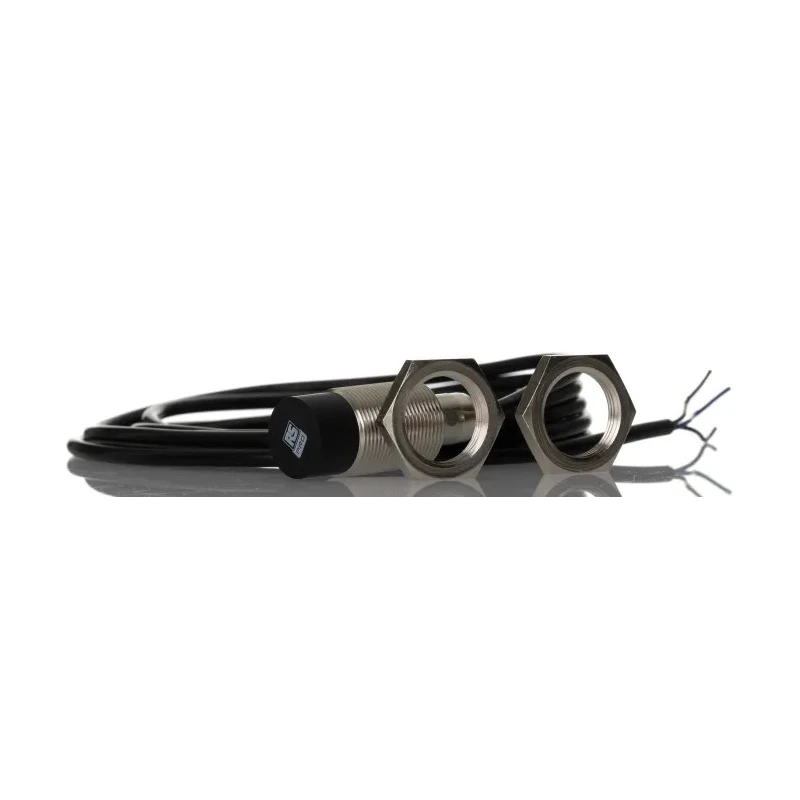

RS PRO 701-8266 Threaded Barrel Inductive Proximity Sensor offers robust and precise non-contact metal detection ideal for industrial automation and control applications. It features an M18 x 1 threaded barrel body style with a durable nickel-plated brass housing designed to withstand harsh environmental conditions.

The sensor is designed for non-flush mounting and is terminated with a cable for straightforward installation without additional connectors. It operates with a PNP output type sourcing up to 200mA switching current at a maximum supply voltage of 30V DC, enabling direct load switching for varied control system architectures.

With a sensing distance up to 8 mm and a rapid switching frequency of 1 kHz, this sensor ensures accurate and fast object detection. The device is rated IP67, making it suitable for environments exposed to dust and liquids. Operating temperatures range from -25°C to 75°C allowing deployment in diverse ambient conditions including cold storage and warm plant areas.

The sensor’s unshielded inductive design requires careful mounting to avoid interference from nearby metal. It complies with industry standards including cULus, UL, EN 60947-5-2, and is RoHS compliant, ensuring conformity to safety and environmental regulations.

Typical applications include position sensing on conveyor belts, end-of-travel detection for pneumatic actuators, presence verification in assembly automation, and metal detection in sorting systems.

Offers 8 mm maximum detection range for accurate sensing. Features PNP output type suitable for sourcing control interfaces. Operates at 30V DC maximum supply voltage with 200mA switching current. Constructed with nickel-plated brass housing for durability and corrosion resistance.

Non-flush mount with an M18 x 1 threaded barrel for secure installation. Supports fast switching up to 1 kHz frequency for rapid detection. Rated IP67 ingress protection for operation in wet and dusty environments. Functions within a temperature range of -25°C to 75°C for versatile industrial applications.

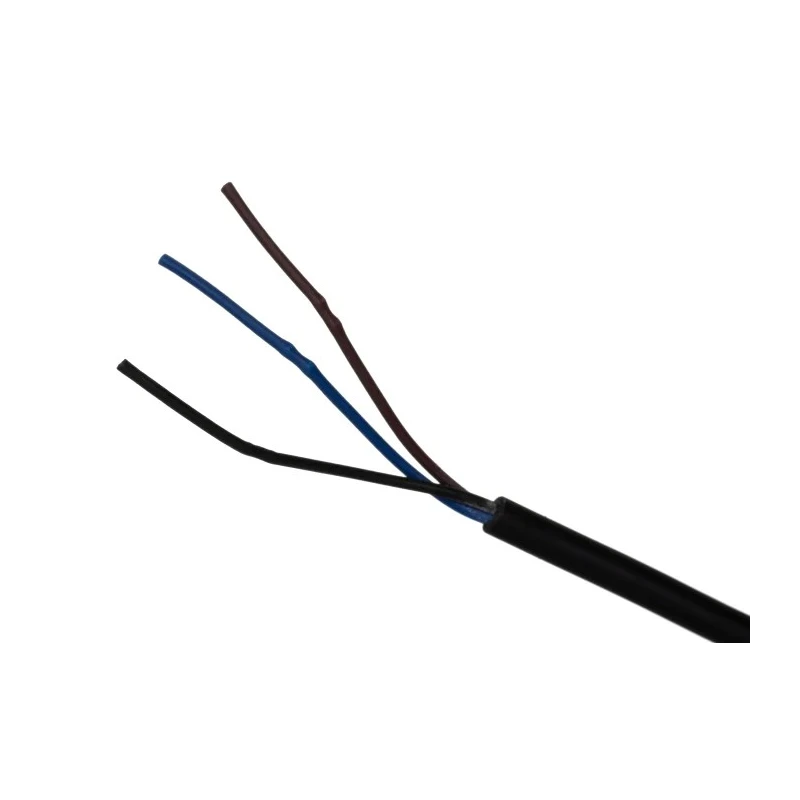

Cable termination provides direct wiring without connectors. Complies with cULus, UL, EN 60947-5-2, and RoHS standards ensuring safety and regulatory adherence. Explore the RS PRO brand for a wide selection of high-quality industrial sensors and automation components at EnvMart.
