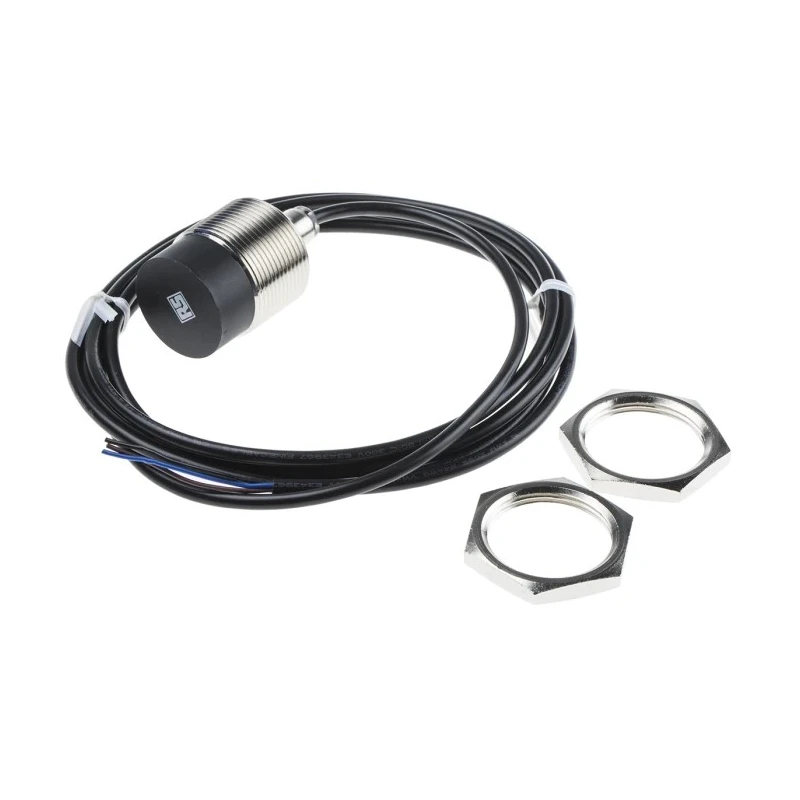

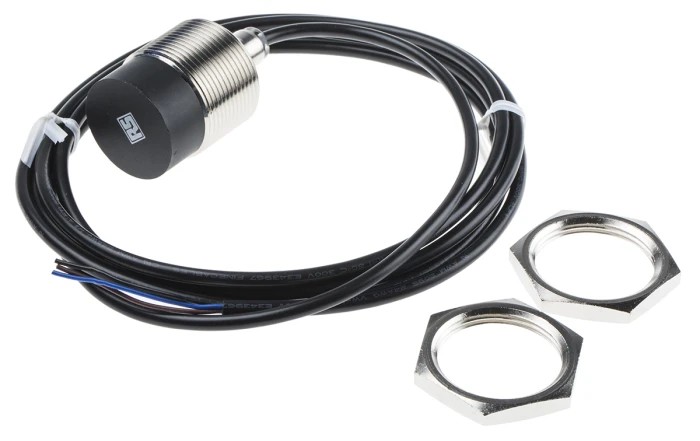

RS PRO Threaded Barrel Inductive Proximity Sensor M30 x 1.5, NPN Output, 30 V DC, 200 mA Switching Current, 15 mm 701-8269

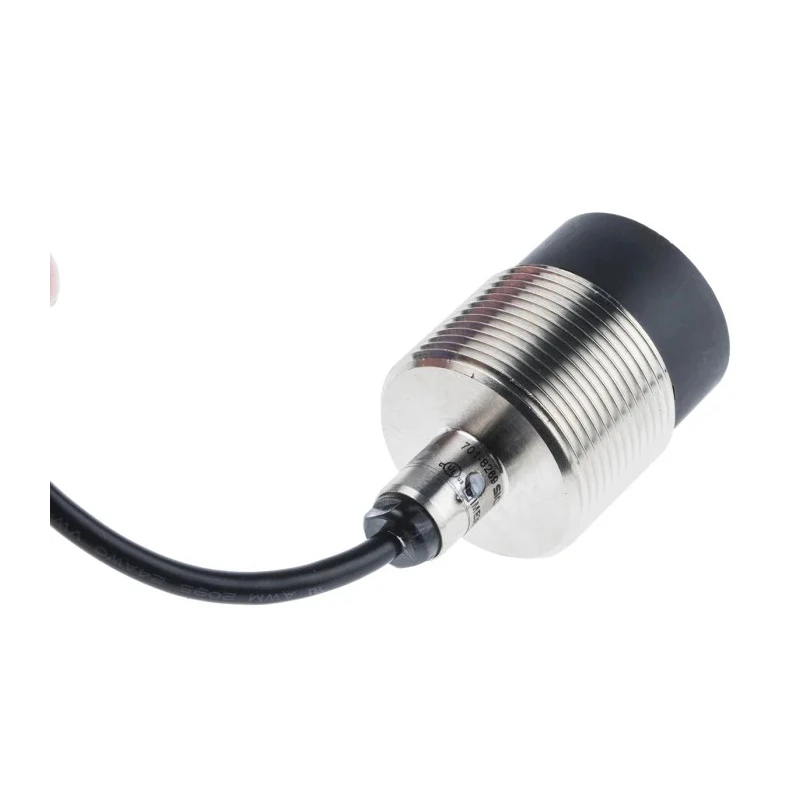

RS PRO 701-8269 Threaded Barrel Inductive Proximity Sensor is a high-quality sensor designed for accurate and reliable detection of metal objects within a 15 mm sensing range. The sensor features a threaded barrel body measuring M30 x 1.5 mm thread size and a length of 51 mm, crafted from nickel plated brass to provide mechanical strength and resistance to harsh industrial environments.

This sensor operates with a maximum supply voltage of 30 V DC and maintains a continuous operating temperature range from -25°C to 75°C, allowing use in a wide variety of industrial, manufacturing, automation, and laboratory settings. The non-flush mount style facilitates flexible installation options, and the cable terminal ensures secure connectivity.

Engineered to deliver stable switching signals, it includes an NPN output type with a maximum switching current of 200 mA and a switching frequency capability up to 500 Hz. The sensor body is IP67 rated, providing dust tightness and protection against water immersion, ensuring durability in demanding environments.

This RS PRO Inductive Proximity Sensor is compliant with international standards including cULus Listed, EN 60947-5-2, RoHS, and UL certifications, guaranteeing reliable and safe operation in automated systems.

Typical industrial applications include machine position sensing, metal detection for quality control, automation process monitoring, and integration in manufacturing equipment. Its compact, rugged design supports long-term operation in challenging conditions.

Equipped with an NPN output type for reliable switching applications. Construction includes nickel plated brass housing ensuring durability and corrosion resistance. Operates within a temperature range of -25°C to 75°C suitable for varied environments.

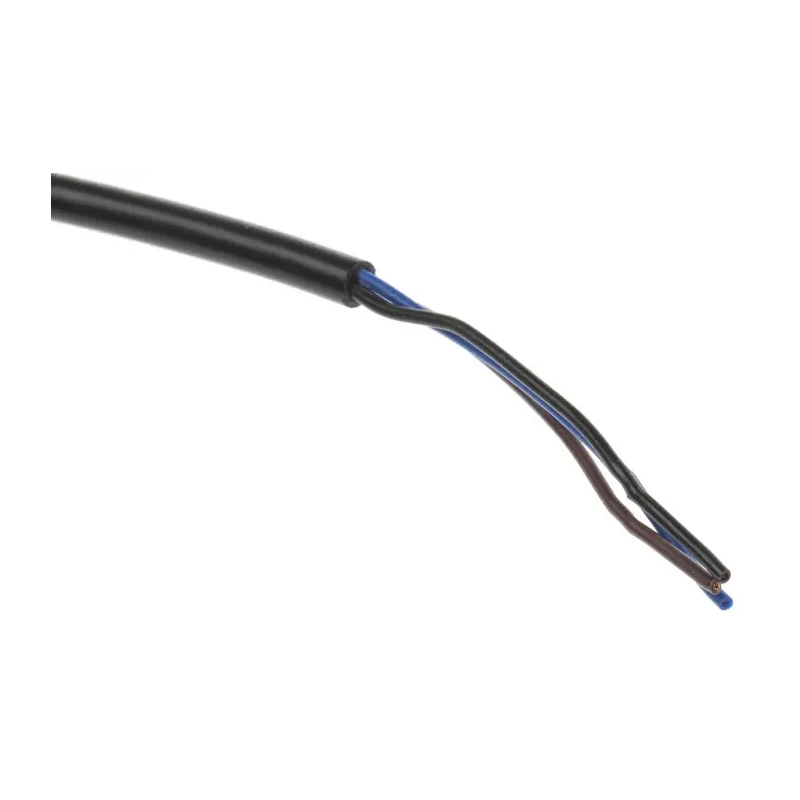

Rated IP67 for protection against dust and water ingress. Supports a maximum switching frequency of 500 Hz for fast response times. Designed for non-flush mount type installation for versatile positioning. Uses cable terminal type for secure and stable electrical connection.

Safe maximum switching current of 200 mA compatible with industrial control circuits. Explore our extensive range of industrial sensors to find compatible components and accessories suitable for your operation on EnvMart.
