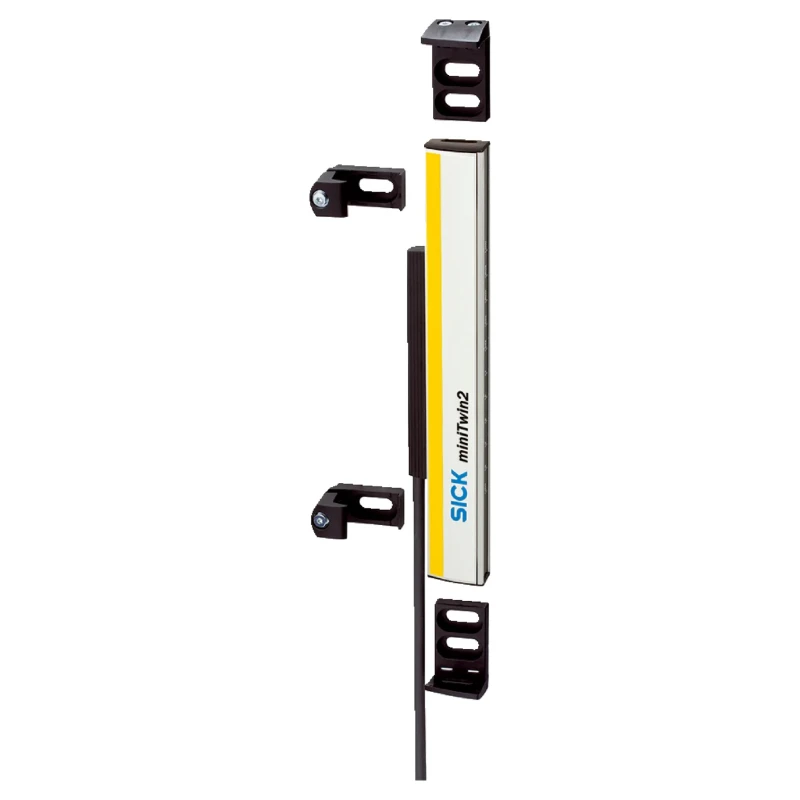

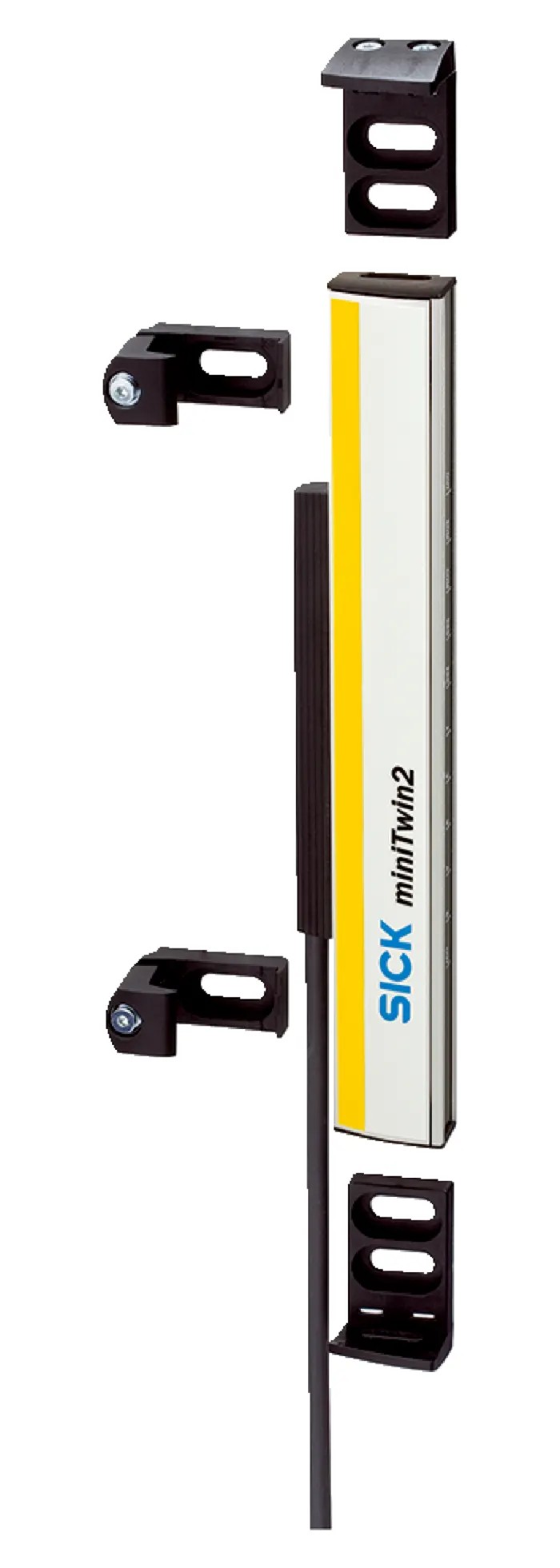

SICK Series Light Curtain Receiver and Sender, 24 mm Beam Resolution, Type 2 Safety, 24V DC, 1200 mm Height, 13 ms C2MT
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Height | 1.2m |
| Length | 32mm |
| Model | C2MT |
| Width | 15mm |
| Series | C2MT |
| Note | For a complete light curtain system (sender and receiver), please select the complementary component shown in Accessories |
| Terminal type | 5-Pin M12 |
| Component Type | Receiver, Sender |
| Standards/Approvals | ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus |
| Maximum Supply Voltage | 24V dc |
| Safety Type | Type 2 |
| Protective Height | 1200mm |
| Maximum Protective Width | 8m |
| Minimum Scanning Distance | 0m |
| Maximum Scanning Distance | 8m |
| Maximum Response Time | 13ms |
| Beam Resolution | 24mm |
| Simplified mounting brackets | O-Fix for flat mounting (optional extra for stand-alone use only), C-Fix for cascade structures around corners, C-Fix and L-Fix for vertical mounting |
Key Features
- The system offers a protective height of 1200 mm and a maximum protective width of 8 meters.
- Maximum supply voltage is 24 V DC ensuring compatibility with common industrial power sources.
- Fast maximum response time of 13 milliseconds enhances safety and operational efficiency.
- The device includes a 5-pin M12 terminal type for secure and reliable connectivity.
- Supports cascading configurations with simplified mounting brackets for flexible installation.
- Operates safely with minimum scanning distance starting at 0 meters and maximum scanning distance up to 8 meters.
- Designed with integrated sender and receiver in a compact housing allowing stand-alone or cascade use in any orientation.
- LED-guided start-up and diagnostic indicators simplify setup and maintenance.
Product Description
SICK C2MT Series Light Curtain Receiver and Sender, model C2MT, offers precise 24 mm beam resolution combined with Type 2 safety compliance, operating at 24 V DC supply voltage. This light curtain system is designed for comprehensive safety in industrial automation applications including manufacturing, packaging, and machine guarding.
The unit provides a protective height of 1200 mm and supports a maximum protective width of up to 8 meters, making it suitable for a wide range of industrial machine safety setups. It features a fast response time of 13 milliseconds, ensuring rapid detection and shutdown in hazardous conditions.
The product includes receiver and sender elements in an integrated miniTwin housing, facilitating easy installation and alignment with LED indicators. The system can be configured as standalone or cascaded up to three pairs without blind spots, allowing versatile coverage for complex machine layouts.
Construction allows simplified mounting with several bracket options, including O-Fix for flat mounting, C-Fix for corner cascade structures, and L-Fix for vertical mounting. The device uses a 5-pin M12 standard plug for cascading connections and integration with safety controllers.
This light curtain is compliant with a broad range of international standards including CE, cUL, IEC, RoHS, OSHA, and UKCA among others, ensuring reliability and global acceptance. Originating from Germany, the C2MT series is engineered for durability and precision.
The system is intended for industrial environments such as manufacturing plants, packaging lines, and safety critical machinery. LED indicators on the device aid with rapid alignment and status diagnostics to reduce setup time and errors.

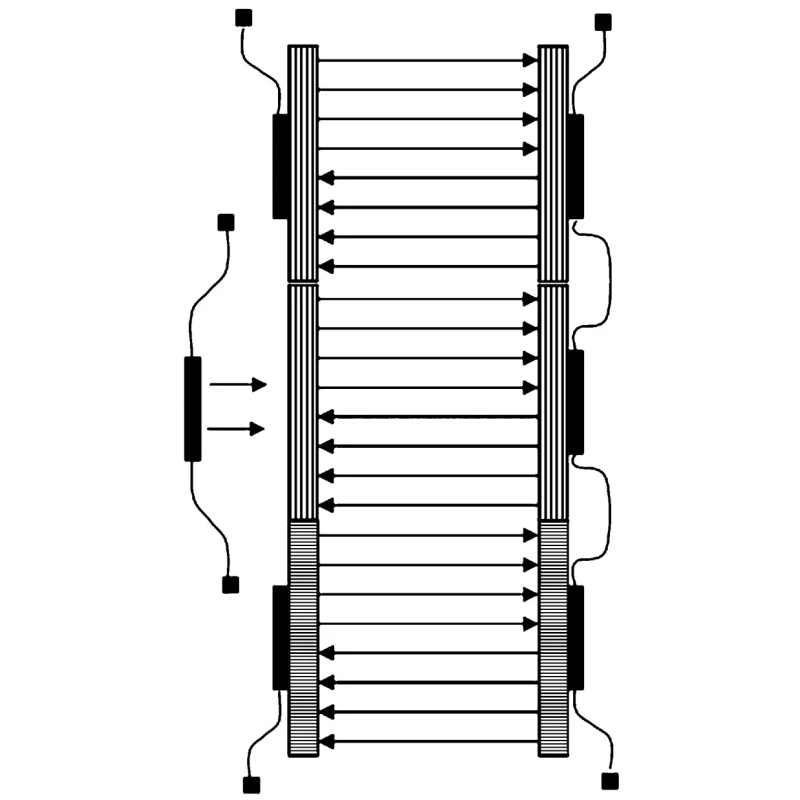

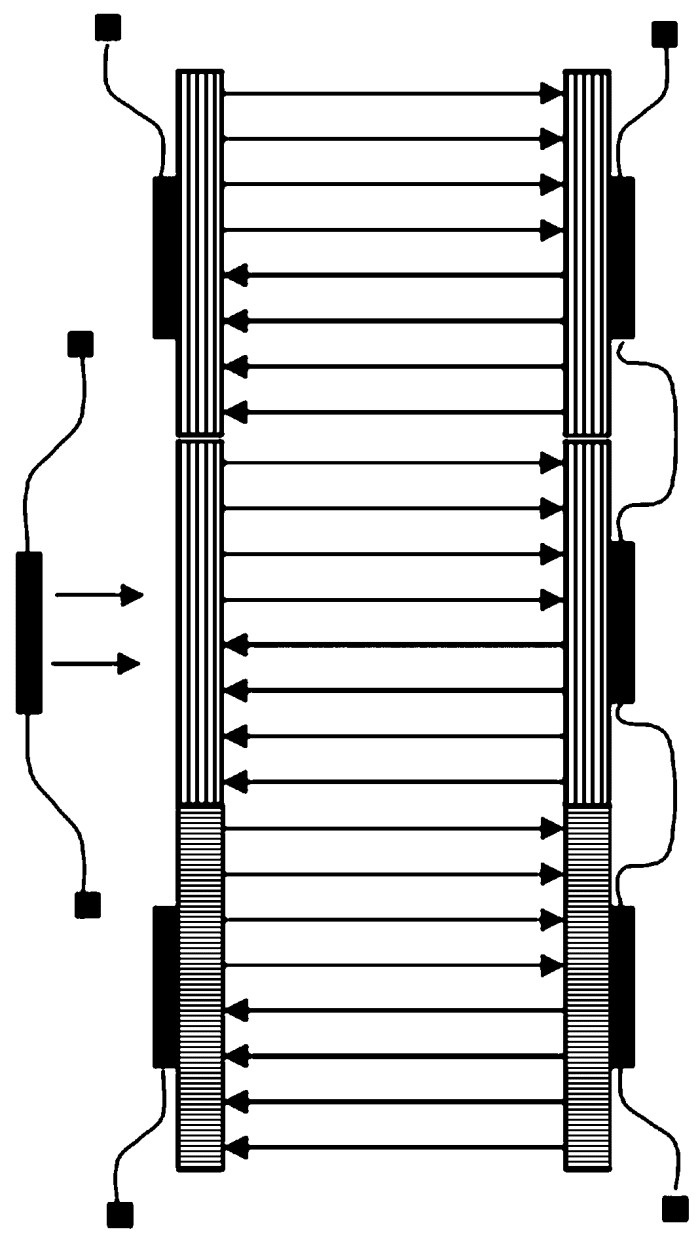

Cascade options with additional plug cables enable extension of sensing fields without blind zones. The compact miniTwin design integrates sender and receiver elements in one housing unit, saving installation space. Compatible with SICK safety relays and controllers to form complete safety circuits.
Choose SICK C2MT Series Light Curtain for a reliable, safe, and flexible machine guarding solution. Browse more Safety Light Curtains and automation gear at EnvMart for comprehensive industrial safety systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The protective height of this model is 1200 mm.
It operates with a maximum scanning distance of up to 8 meters.
The maximum response time is 13 milliseconds, enhancing safety and operational efficiency.
It includes a 5-pin M12 terminal type for secure and reliable connectivity.
This model complies with Type 2 safety standards.
The beam resolution is 24 mm.
It supports simplified mounting brackets including O-Fix for flat mounting, C-Fix for corner cascade structures, and L-Fix for vertical mounting.
The maximum protective width is 8 meters, making it suitable for various industrial applications.
It is compliant with several standards including CE, cUL, IEC, RoHS, OSHA, and UKCA.
The minimum scanning distance is 0 meters, allowing for flexible installation.
Yes, it supports cascading configurations and can be set up without blind spots, allowing for versatile coverage.
The C2MT light curtain is manufactured in Germany.
