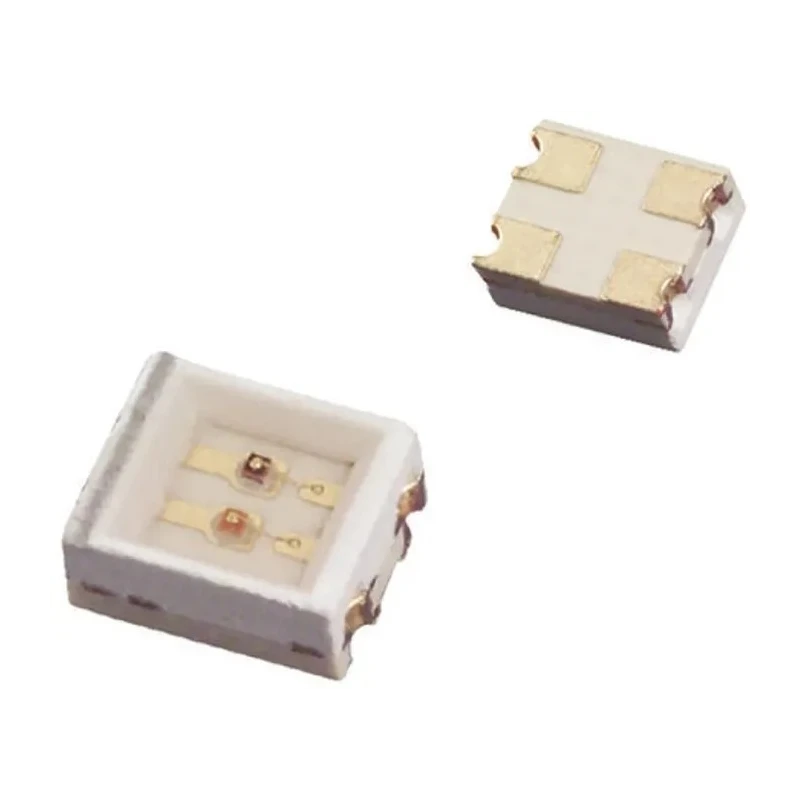

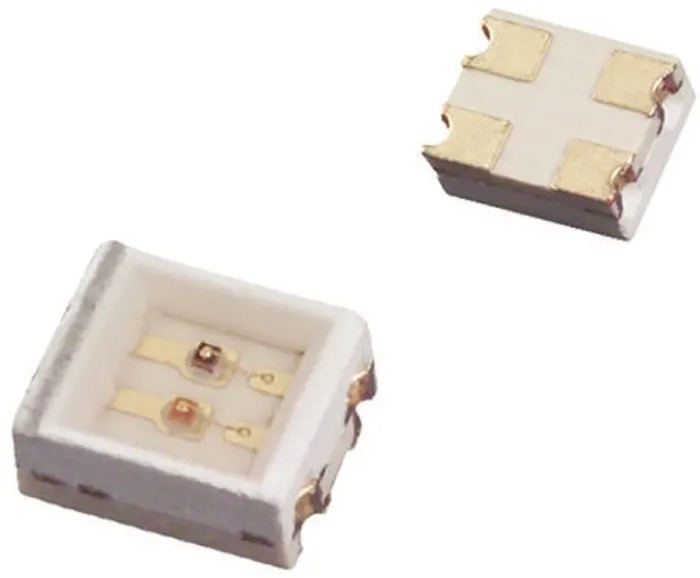

ROHM 2 V Red, Green LED 3025 Surface Mount Chip SML-020MVTT86M

Free Delivery in India | Lowest Global Shipping Charges

ROHM 2 V Red, Green LED 3025 Surface Mount Chip SML-020MVTT86M

Name: ROHM 2 V Red, Green LED 3025 Surface Mount Chip SML-020MVTT86M
Brand: ROHM
SKU: 214683
Price: 0.87 USD
Availability: InStock



Category LED Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Model	SML-020MVTT86M
Packaging	Tape & Reel
Mount Type	Surface
Series	SML
Number Of Leds	2
Maximum forward current	25mA
Package Type	3025
Package Size	3 x 2.5 x 1.3mm
Standards/Approvals	RoHS
LED Colour	Red, Green
Dominant Wavelength	635nm
Forward Voltage	2V
Number of Pins	4
LED Luminosity	6.3 mcd, 20 mcd
Maximum Power Dissipation	60mW
Lens Dimensions	3 x 2.5 mm
Lens Shape	Rectangular
Lens Finish	Milky White

Key Features

The LED has a compact 3 x 2.5 x 1.3 mm rectangular package design.
It delivers luminous intensities of 6.3 mcd and 20 mcd for red and green colors respectively.
The device supports a maximum forward current of 25 mA and maximum power dissipation of 60 mW.
Designed for surface mounting with a tape and reel packaging for assembly efficiency.
This model includes 4 electrical pins and a milky white lens finish for improved light diffusion.
The device complies with RoHS standards ensuring environmental safety.
Suitable for electronics components in displays and optoelectronics applications requiring dual-color LED functionality.

Product Description

ROHM SML-020MVTT86M is a compact 2 V red and green bi-colour LED in a 3025 surface mount package, measuring 3 x 2.5 x 1.3 mm. It features a rectangular milky white lens that enhances light diffusion while maintaining uniform brightness.

This LED supports a forward current up to 25 mA and a maximum power dissipation of 60 mW, making it efficient for various electronic devices and display applications. The dual-color capability allows for multi-luminance signaling or status indication from a single package.

It is packaged in tape and reel format to facilitate automated pick-and-place assembly, improving production throughput. The device has 4 pins and a built-in reflector that enhances luminosity, with luminance levels of 6.3 mcd (red) and 20 mcd (green) ensuring visibility in different lighting conditions.

Compliant with RoHS environmental standards, the SML-020MVTT86M is suitable for use in industrial electronics, consumer electronics, and other applications requiring reliable dual-color LED indicators. It offers a reliable and compact solution for high-density mounting on printed circuit boards.

The LED is surface mount type with a rectangular 3025 footprint. Dual-color output with red and green LEDs integrated into one package. Maximum forward current 25 mA with power dissipation of 60 mW. Four electrical pins compatible with standard PCB layouts.

Compliant with environmental standards including RoHS. Ideal for electronic displays, indicators, and signaling applications. Explore our range of LEDs and electronic components for your industrial and manufacturing requirements at EnvMart.
