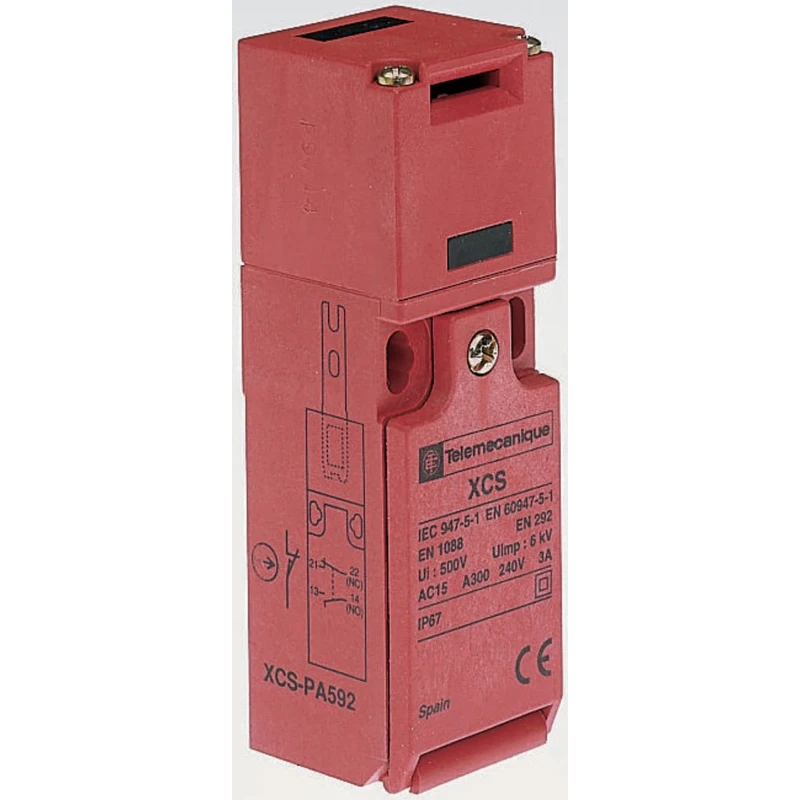

Telemecanique Sensors Safety Interlock Switch, Keyed Actuator Included, Fibreglass Reinforced Nylon, IP67, 240V AC XCSPA593

Telemecanique Sensors XCSPA593 Safety Interlock Switch, part of the XCSPA Series, offers a keyed interlock switch solution designed for industrial and automation applications. It features a fibreglass reinforced nylon housing that provides durability and resistance to harsh environments. This miniature interlock switch comes with a keyed actuator included, simplifying installation and ensuring secure access control within machinery or safety systems.

The switch supports contact voltages of up to 240V AC and 250V DC, making it suitable for a wide range of electrical control applications. Its ingress protection rating of IP67 ensures that it is dust-tight and protected against immersion in water, allowing it to perform reliably under demanding industrial conditions.

The design includes four head directions with the head rotating in 90-degree increments, offering eight actuator entry points. This enables customized installation orientations to best fit system designs. The minimum operating temperature of -25°C and maximum of 70°C extends its suitability to varying manufacturing and processing environments.

This safety interlock switch also complies with multiple international standards such as EN 1088, EN/IEC 60204-1, EN/ISO 12100, IEC 60947-5-1, ISO 14119, UL 508, and CSA C22.2 No. 14, underlining its reliability and conformity to safety regulations. It includes two positive opening contacts as standard for enhanced safety functionality and meets the requirements of UL and CSA for North American markets.

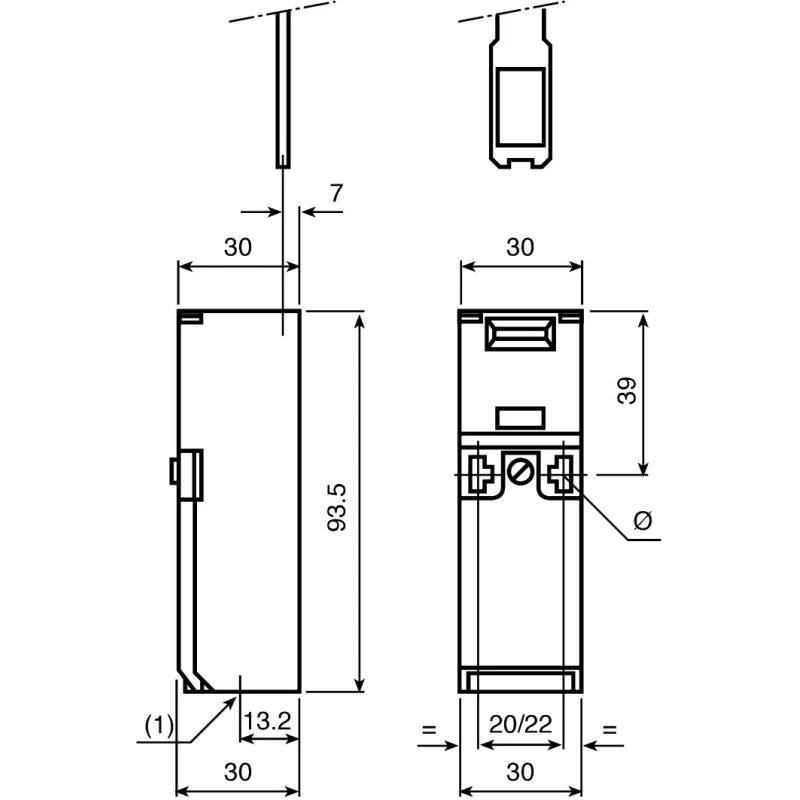

The switched device requires ordering of the actuator separately (typical stock no. 252-3870), allowing customers to select actuator variants as needed. The compact dimensions (93.5mm length, 30mm width and depth) facilitate integration into space-constrained control panels or machinery. This interlock switch is well suited for industrial automation, electrical safety circuits, manufacturing plants, and commercial equipment safety applications.

The switch features a keyed lock style for secure operation. It includes a keyed actuator to ensure authorized access control. The device is manufactured with durable fibreglass reinforced nylon for high strength. Ingress protection rating of IP67 offers excellent protection against dust and water.

Operating temperature range from -25°C to 70°C suits industrial environments. Compatible with contact voltages up to 240V AC and 250V DC for versatile use. Compact size with 93.5mm length and 30mm width and depth enables flexible mounting.

Meets numerous safety and performance standards including EN 1088 and UL 508. Head rotates in 90-degree steps providing eight actuator entry points for flexible installation. Minimum operating force for positive opening is 15N ensuring safety compliance.
